Description
Number of Inputs:2
Number of Outputs:2
Analog Input Range:0 to 20mA, 4 to 20mA
Voltage Output Range:0 to 10V, 0 to 24V
Sampling Rate:250 samples per second
Power Supply Voltage:24VDC
Communication Interface:RS-485
Operating Temperature:-10°C to 55°C
Relative Humidity:5% to 95% non-condensing
Enclosure Type:IP20
Dimensions:126mm x 103mm x 55mm

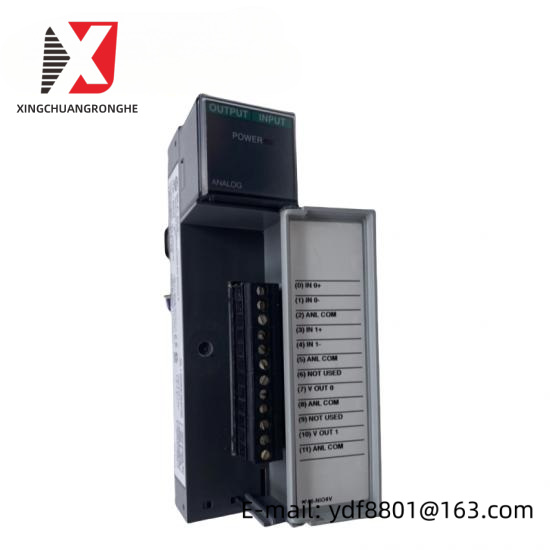

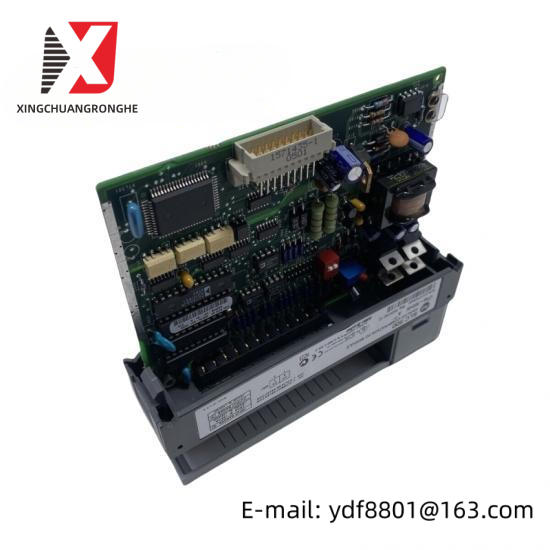

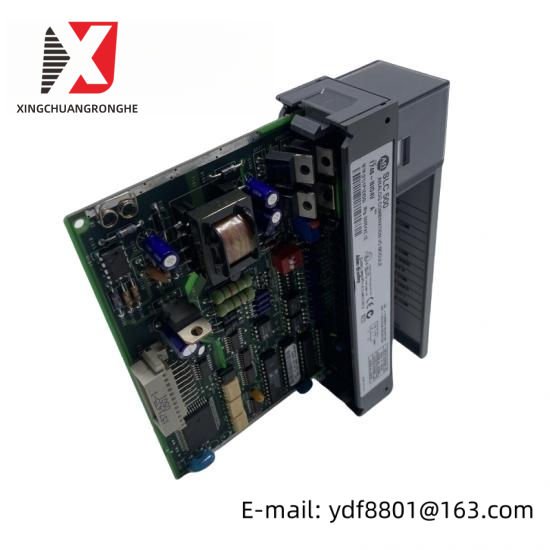

The Allen Bradley 1746-NIO4V is designed to deliver high-resolution analog signal conversion and transmission, making it an ideal choice for applications requiring precise control and monitoring.
This module supports dual input channels, each capable of handling common mode voltages ranging from -20 to +20V, ensuring compatibility with a wide range of industrial sensors.
For output, the 1746-NIO4V provides two channels that can deliver voltage outputs within a precise range, facilitating accurate control over actuators and other devices in your automation setup.
With its robust input and output specifications, this module is engineered to withstand overvoltage conditions up to 7.5VAC RMS, enhancing system reliability in challenging environments.
The Allen Bradley 1746-NIO4V offers a backplane current draw of 55MA, optimizing power consumption and system efficiency, making it a cost-effective solution for your industrial automation needs.
