Description

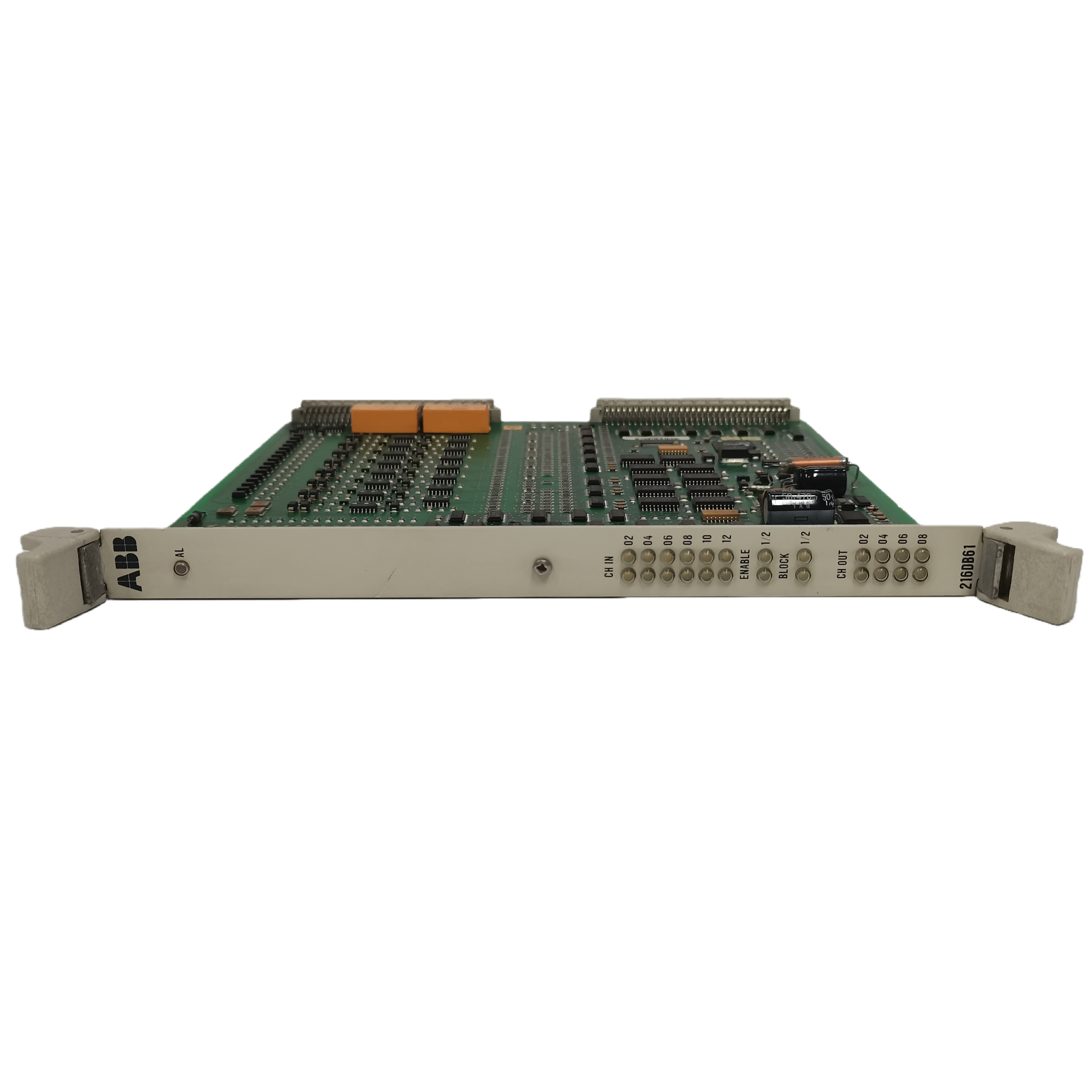

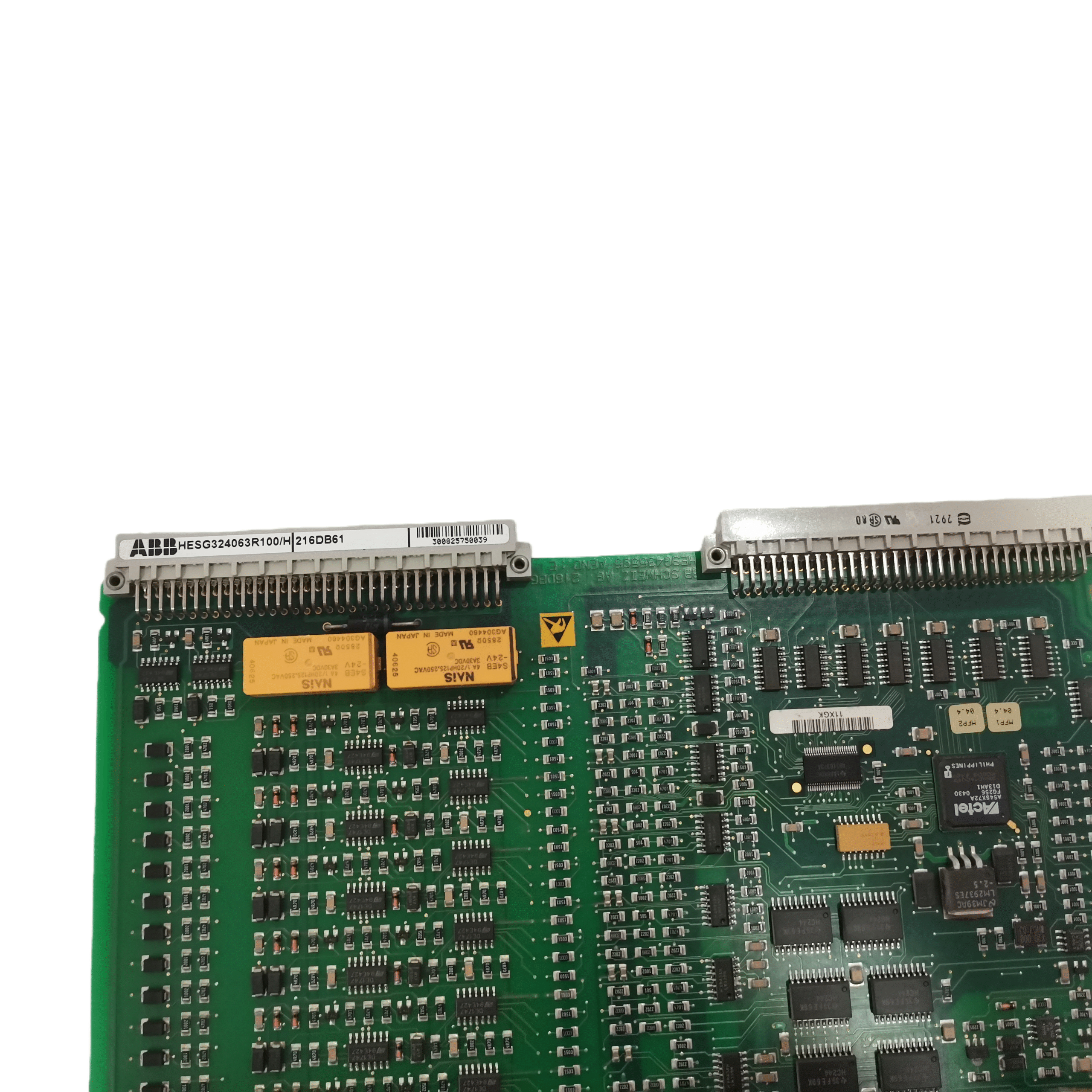

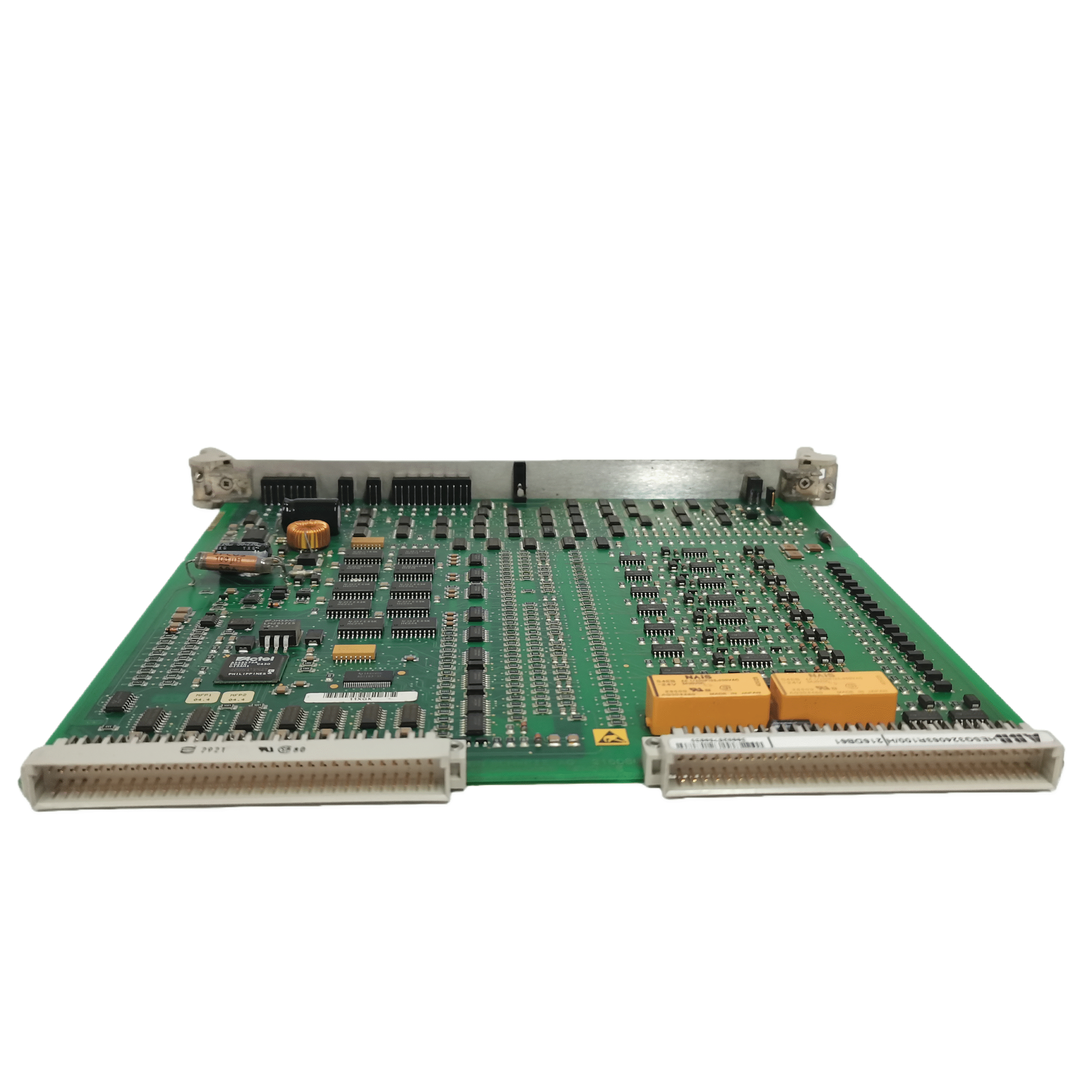

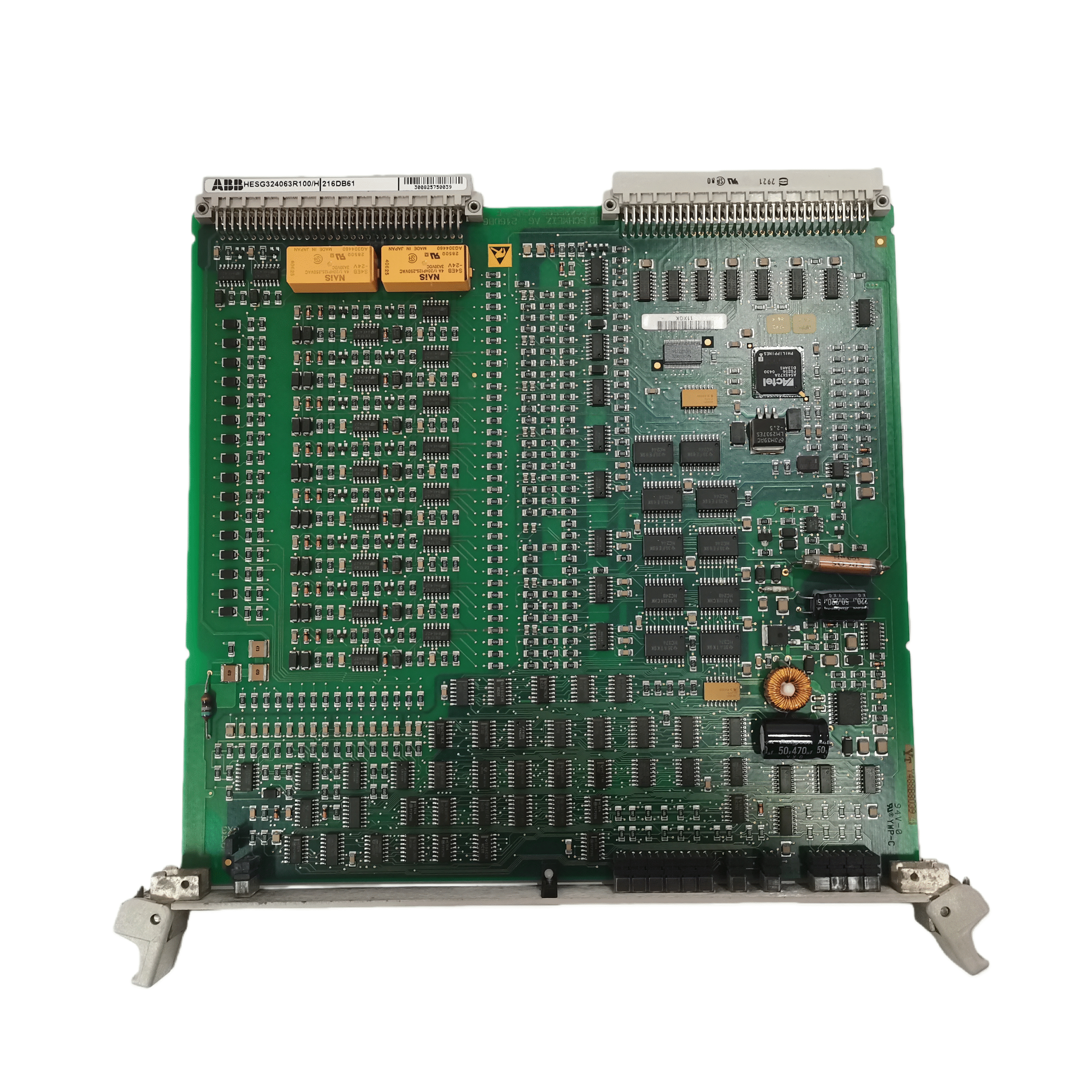

ABB 216DB61 HESG324063R100-H



Basic Information

• Brand: ABB
• Series: Industrial Automation Control Module
• Operating Voltage: 24V DC
• Weight: 0.351 kg

Main Features

• High-Precision Signal Processing: Adopts PLC technology, supporting high-precision digital signal processing and data acquisition. Its binary input function can convert digital signals into electrical signals to ensure accurate response of the control system.
• High-Speed Input and Modular Design: Equipped with high-speed input and output capabilities, it can process large amounts of data in a short time to meet the real-time requirements of industrial automation. The modular structure simplifies the installation and maintenance processes, supports quick replacement of faulty components, and improves system reliability.
• Wide Temperature Range and Anti-Interference Performance: The operating temperature range covers 0°C to 60°C, and the ambient humidity range is 5% to 95% (non-condensing), making it suitable for complex industrial scenarios. Through shielding design and power redundancy configuration, it effectively suppresses electromagnetic interference (EMI/RFI) and ensures stable signal transmission.
• Flexible Logic Control: Supports the definition of logic “0” (FALSE) and “1” (TRUE) signals, which can be configured for direct or inverted use to adapt to different control logic requirements. The redundant power supply design (24V DC) combined with fast fuse protection further enhances the system’s fault tolerance.

Technical Specifications

• Input Type: Binary digital signals (Logic 0/1)
• Humidity Range: 5% to 95% (non-condensing)
• Interface Type: Modular socket (compatible with ABB controllers)
• Communication Protocol: Supports Profibus, FF, Modbus, etc.

Application Fields

• Industrial Automation Control: Used for signal input of PLC systems and DCS control units, supporting production line monitoring, equipment start-stop logic control, and fault detection.
• Power and Energy Systems: In generator sets and power grid automation, it realizes protection function triggering (such as trip signal control) and status monitoring.
• Mechanical Manufacturing and Robotics: Integrated into equipment such as robotic arms and CNC machine tools, it processes sensor signal input and optimizes the precision of motion control.
• Process Control and Energy Management: In process industries such as chemical engineering and metallurgy, it monitors the digital conversion and logic processing of analog signals such as pressure and temperature.
