Description

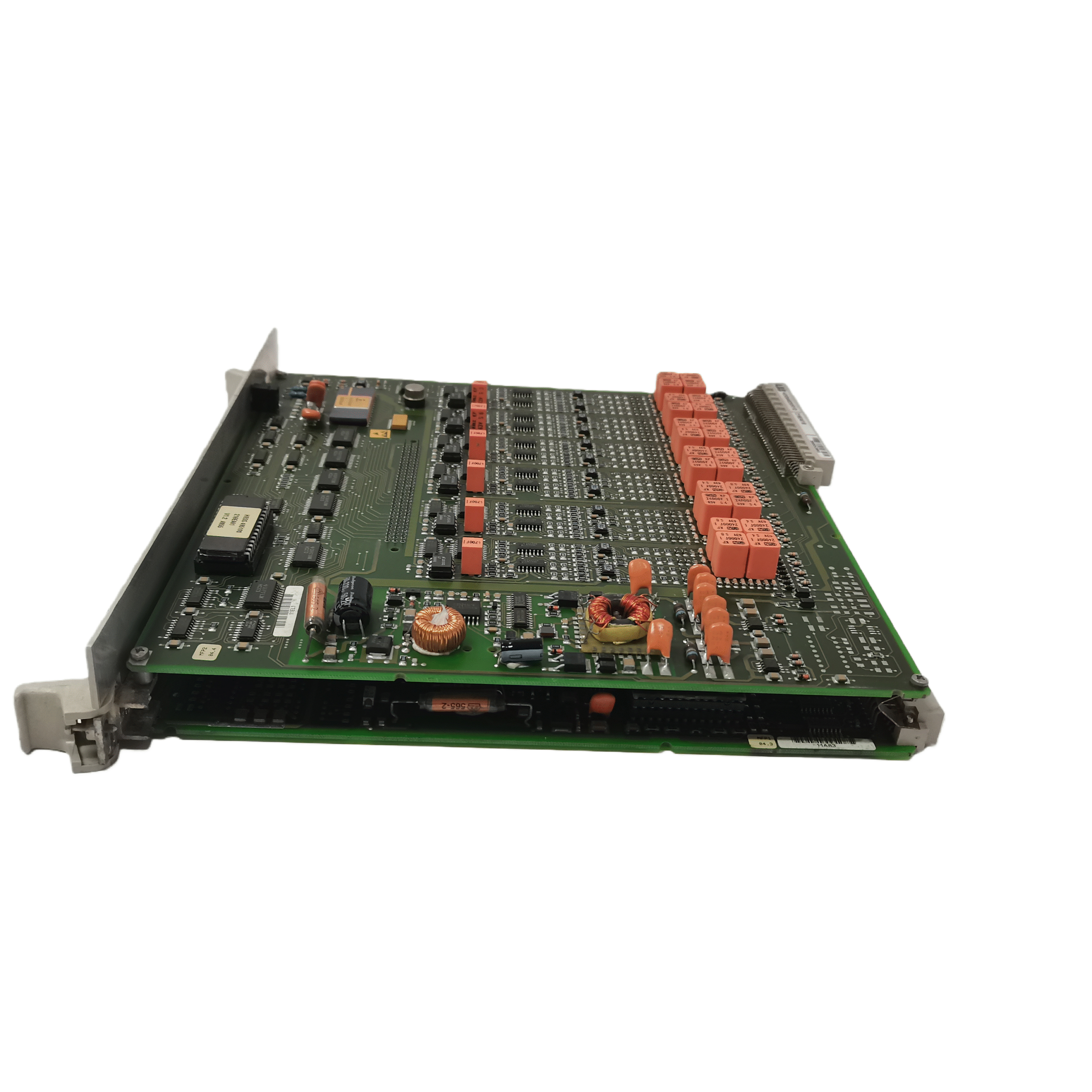

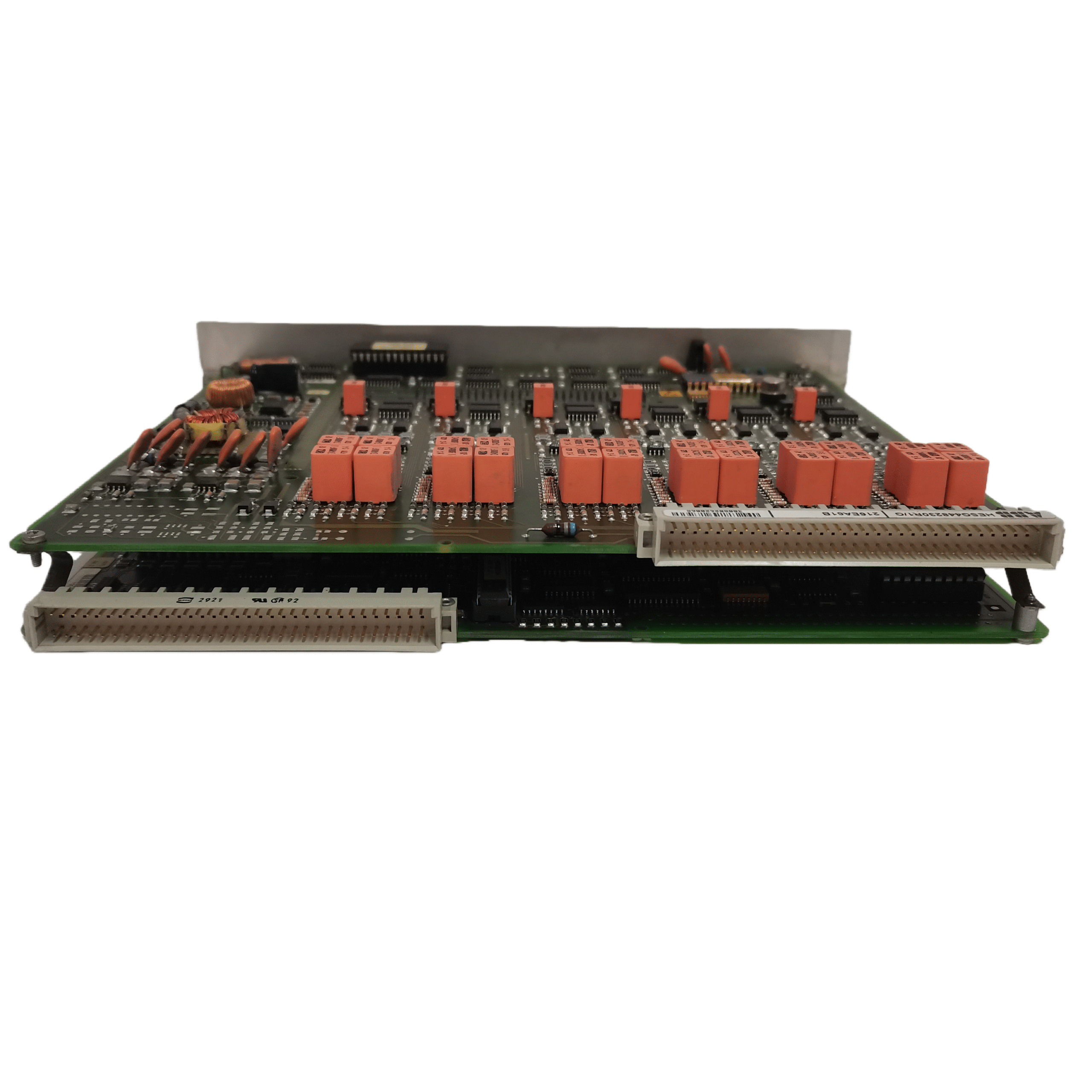

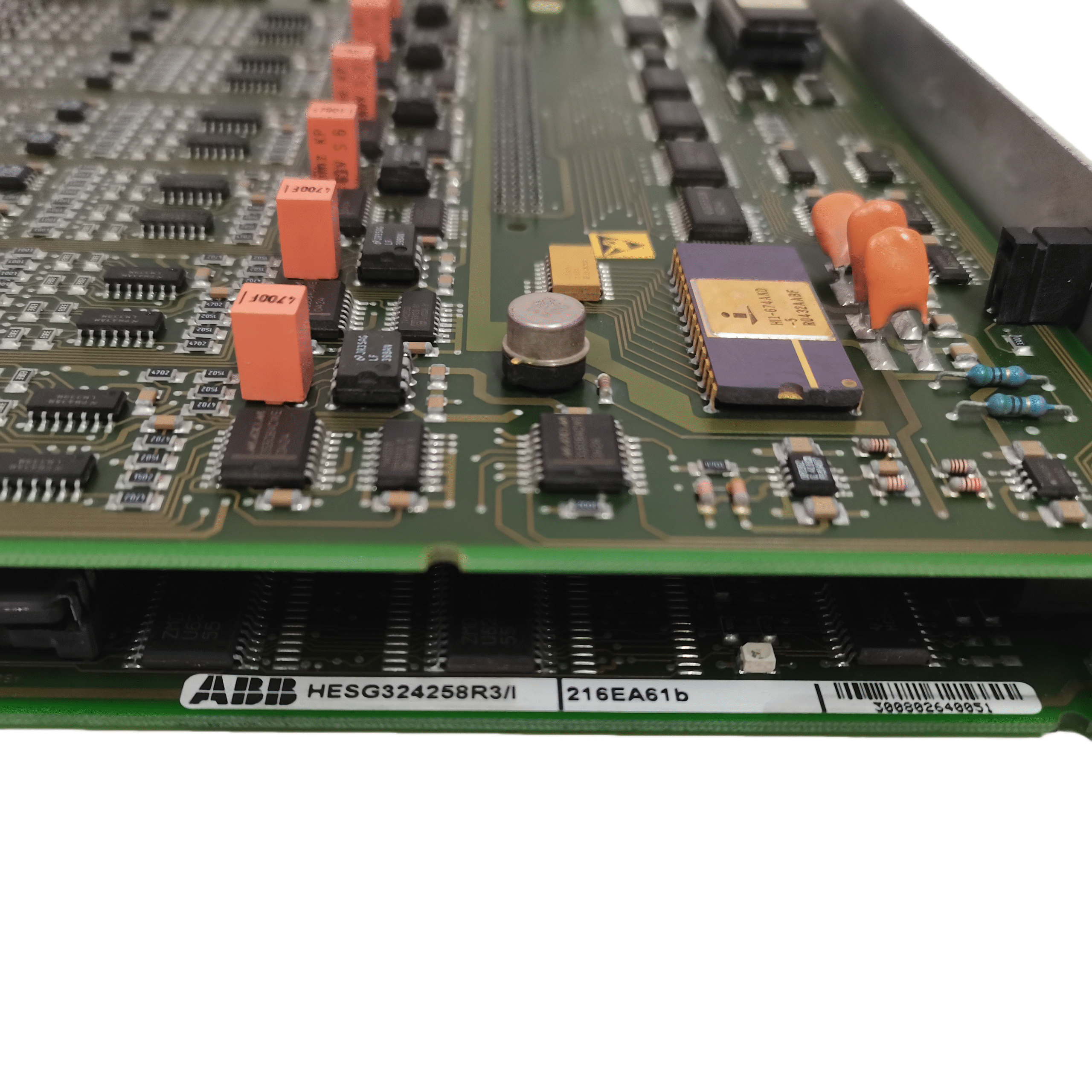

ABB 216EA61B HESG448230R1-G

It is a high-performance analog input module designed for industrial automation and power systems.



Basic Information

• Manufacturer: ABB
• Product Type: Analog Input Module
• Number of Input Channels: 8 channels (expandable to 16 channels with the 216GW61 module)
• Input Signal Types: 4-20mA, 0-20mA, 0-10V
• Rated Input Voltage: 24V DC (±20%)

---

Technical Specifications

• Measurement Accuracy: ±0.1%FS
• Isolation Voltage: 500V AC (between channels)
• Sampling Frequency: 200Hz per channel
• Communication Protocol: B448C parallel bus (compatible with HART protocol)
• Operating Temperature Range: -20°C to +60°C
• Physical Dimensions: 35mm × 100mm × 150mm
• Weight: 0.26kg
• Protection Class: IP20
• Certifications: CE, UL, CSA

---

Key Features

• High-Precision Signal Acquisition: Equipped with a 16-bit high-precision ADC converter, combined with software-adjustable filtering (0.1-100ms). It effectively suppresses high-frequency interference and signal noise to ensure measurement accuracy.
• Anti-Interference Design: Adopts photoelectric isolation technology and redundant power supply design, enabling stable operation in environments with strong electromagnetic interference.
• Wide Temperature Adaptability: Features a wide operating temperature range, suitable for high-temperature, high-dust, and vibration scenarios.
• Flexible System Integration Capability: Realizes data interaction with the protection processing unit 216VC62a via the B448C parallel bus. It is compatible with PROFIBUS DP and HART communication protocols, allowing seamless integration into the ABB 800xA Extended Automation System and third-party control systems.
• Modular Design: Supports hot-swapping, enabling maintenance and replacement during system operation to reduce downtime.

---

Application Fields

• Power Systems: Used for equipment monitoring and protection in power plants and substations, such as real-time monitoring of key equipment like generators and transformers.
• Petrochemical Industry: Monitors and controls key parameters in the production process, such as temperature, pressure, and flow rate.
• Metallurgy and Material Processing: Applied to monitor and control various equipment in the production process.
