Description

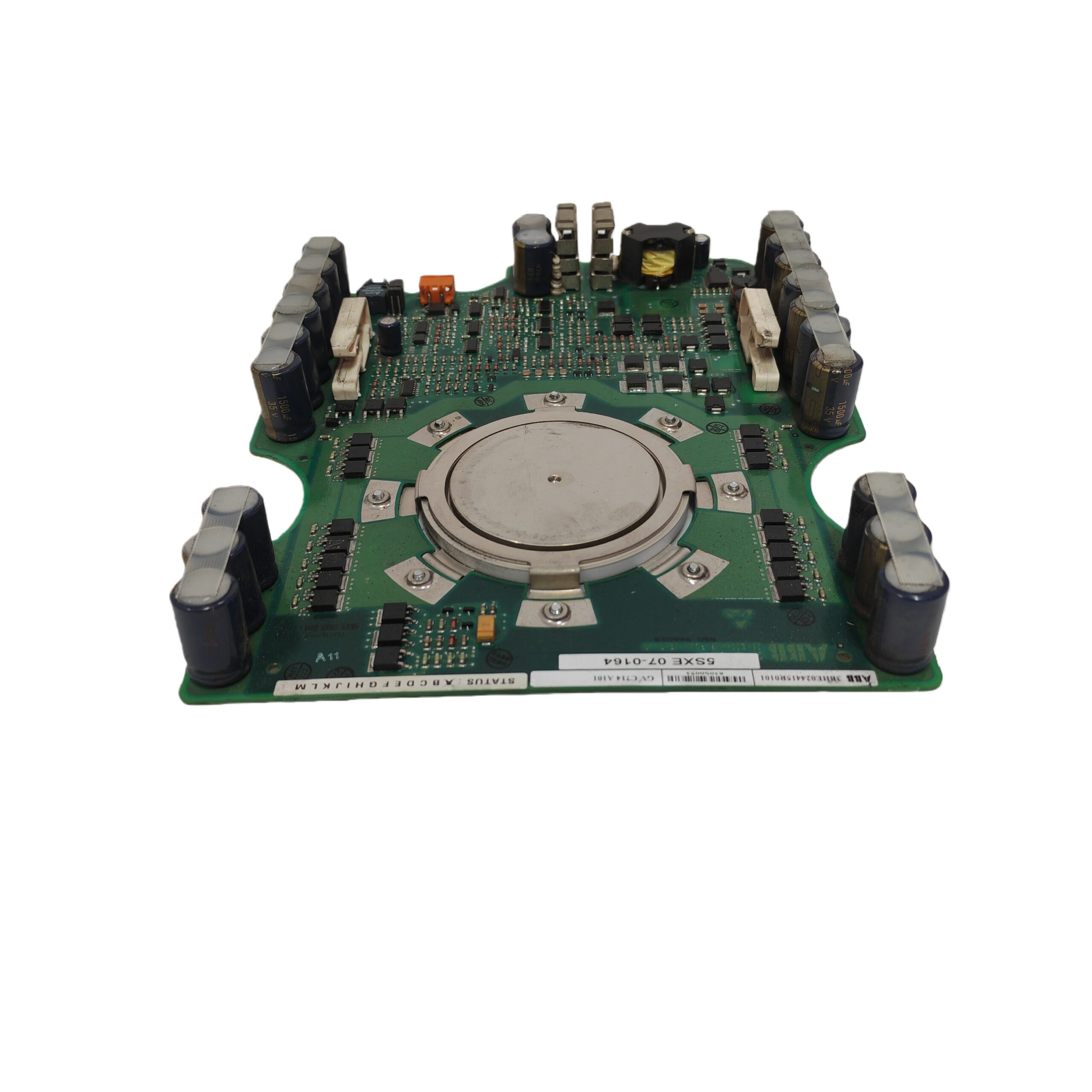

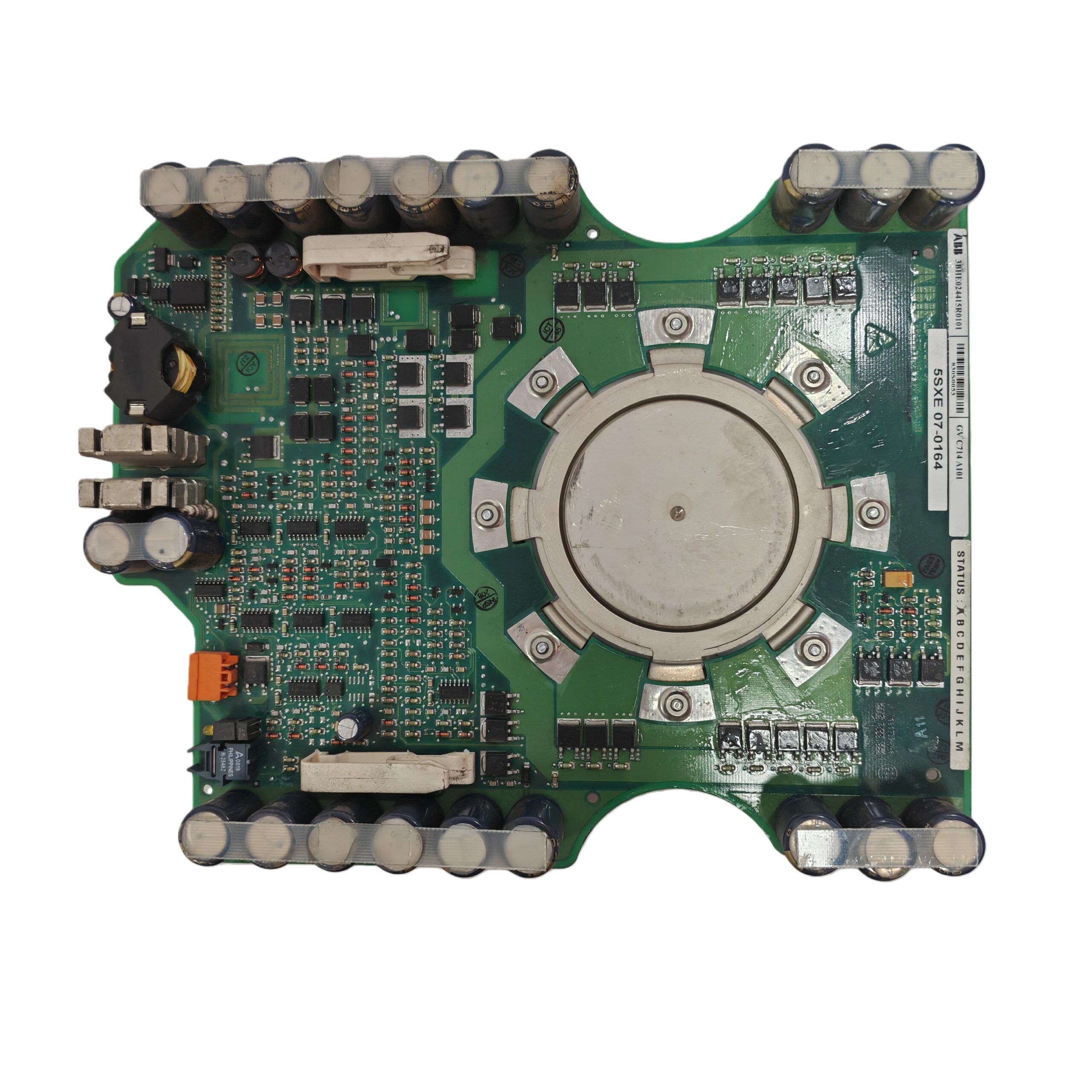

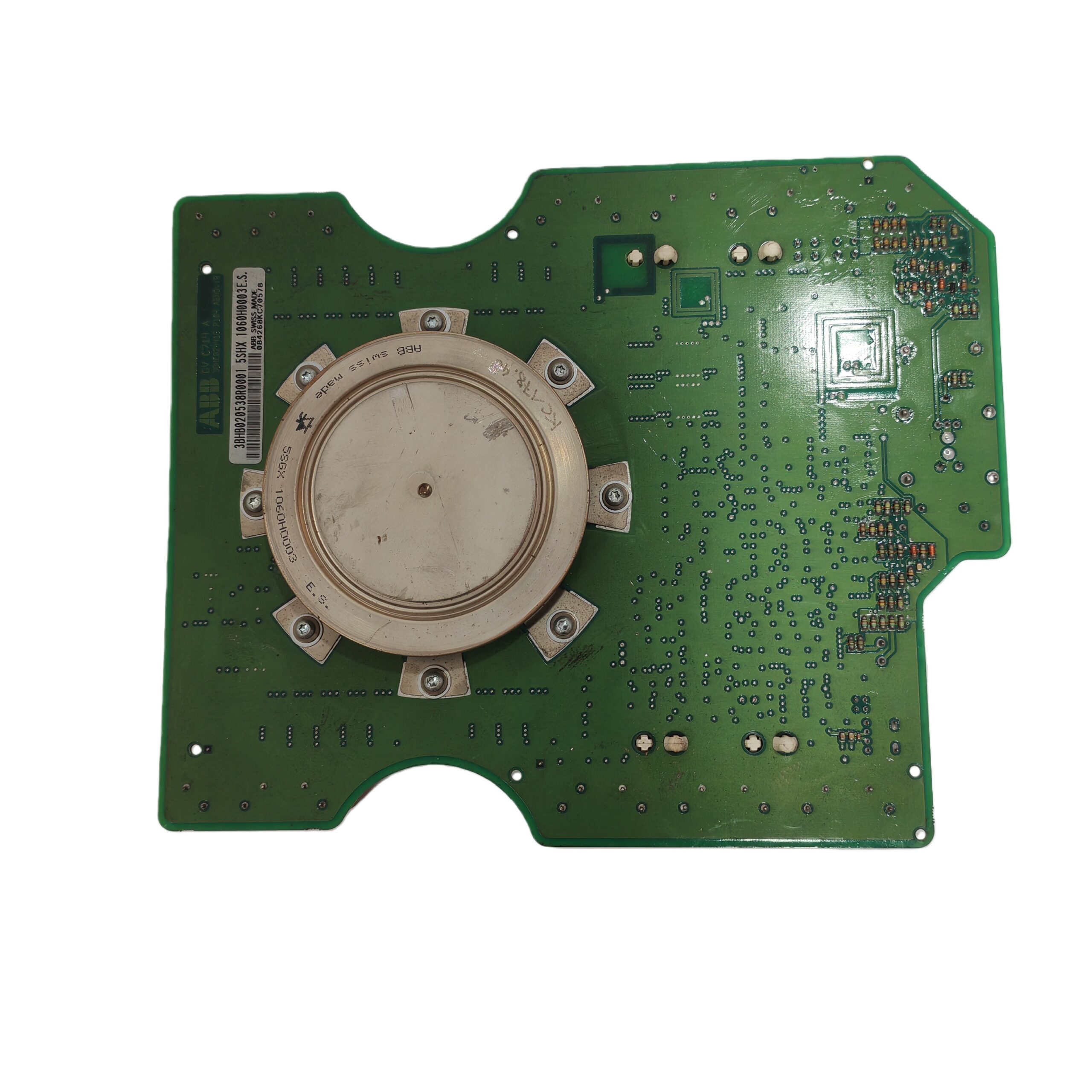

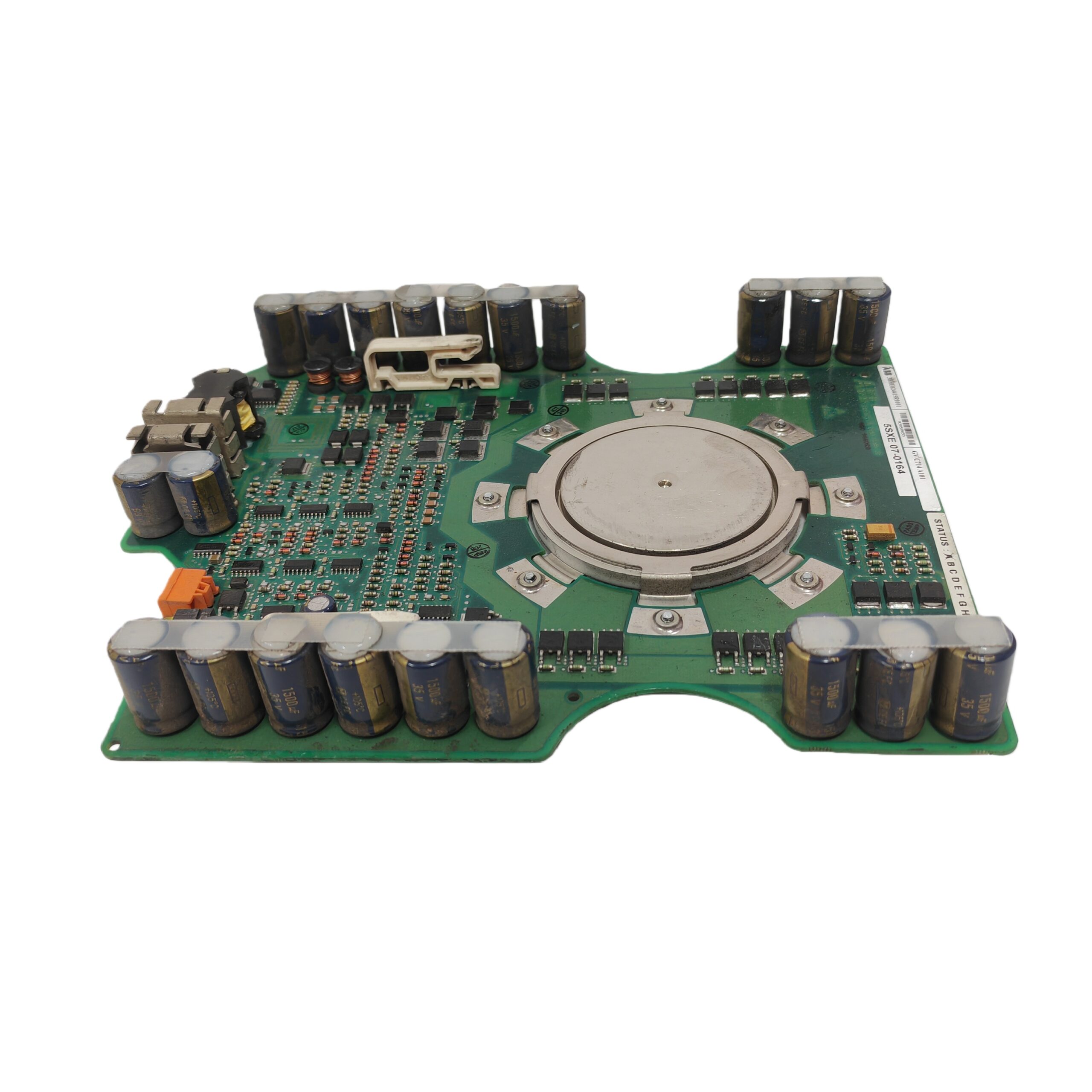

ABB 3BHE024415R0101 GVC714A101 Gate pole drive unit
TIt is a gate drive unit (GDU) designed to drive high-performance IGBT (Insulated Gate Bipolar Transistor) modules in high- and medium-voltage applications
It is a Gate Drive Unit(GDU)designed for driving high-performance IGBT(Insulated Gate Bipolar Transistor)modules in high and medium voltage applications.This module is a core component of ABB high-power power electronic converters,such as frequency converters,HVDC systems,SVC/STATCOM,etc.Its main function is to provide precise and reliable gate drive signals to quickly and efficiently switch IGBTs,thereby achieving precise control and efficient operation of power electronic converters.GVC714A101 integrates advanced protection functions such as short circuit protection,undervoltage lockout,overcurrent protection,and temperature monitoring to ensure the safe operation of IGBT modules under various working conditions.Its high insulation withstand voltage design and optimized layout effectively suppress electromagnetic interference and improve the reliability of the system.
technical specifications
Product model(door pole drive):3 BHE024415R0101 GVC714A101 5SXE07-01643BHB020538R0001 5SHX1006H0003E.S.5SGX1060H00003E.S
Manufacturer:ABB
Product type:Gate Drive Unit(GDU)
Drive voltage:Depending on the requirements of the IGBT module,typically ranging from±15V to±20V
Drive current:high transient peak current,used for fast switching IGBT
Insulation withstand voltage:high voltage isolation capability(specific value depends on the application)
Protection functions:short circuit protection,undervoltage lockout(UVLO),overcurrent protection,temperature monitoring
Communication interface:Internal bus interface(communicating with control unit)
Switching frequency:supports high switching frequency applications
Working temperature:within the industrial standard range(depending on the application environment)
Application scope:High voltage frequency converter HVDC、SVC、STATCOM、High power power electronic converter
Main features and advantages
The collaborative work of ABB GVC714A101 gate driver and IGBT modules such as 5SXE07-0164 5SHX1006H0003E.S.constitutes the core of high-performance power electronic systems,with the following outstanding features and advantages:
High reliability and excellent protection:As a professional gate driver,GVC714A101 integrates multiple advanced protection functions,including fast short-circuit protection,undervoltage lockout(UVLO),overcurrent protection,and temperature monitoring.These functions can monitor the working status of IGBT in real time,and immediately take protective measures in case of abnormalities,effectively preventing IGBT modules 5SXE07-0164 and 5SHX1006H0003E.S.from being damaged under fault conditions,thereby significantly improving the operational reliability and service life of the entire power electronic system.
Accurate and efficient IGBT drive:GVC714A101 can provide precise,stable,and high transient peak current gate drive signals,ensuring that IGBT modules 5SXE07-0164 and 5SHX1006H0003E.S.can be quickly and efficiently turned on and off.This is crucial for reducing switching losses and improving the overall efficiency of power electronic converters,especially in high switching frequency applications where its performance advantages are more apparent.
High insulation withstand voltage design:In high-voltage power electronics applications,high insulation withstand voltage between the driver and the main circuit is essential.ABB GVC71A101 adopts advanced insulation technology,providing excellent electrical isolation capability,effectively protecting control circuits from high voltage impact,and ensuring the safety of personnel and equipment.
Excellent EMC performance:The layout and design of the gate driver have been optimized to effectively suppress electromagnetic interference(EMI)and radio frequency interference(RFI),ensuring the integrity of the driving signal and stable operation of the system in complex electromagnetic environments.This is crucial for the reliability of power electronic systems in industrial sites.
Flexible compatibility:GVC714A101 is compatible with ABB’s various IGBT modules(such as 5SXE07-0164 and 5SHX1006H0003E.S.)and converter systems of different power levels,providing users with a high degree of flexibility and selection space,making it easy to build or upgrade various high-power power electronics applications.
application area
The solution consisting of ABB GVC714A101 gate driver and IGBT modules such as 5SXE07-0164 and 5SHX1006H0003E.S.is widely used in industrial and power fields that require extremely high power conversion efficiency,reliability,and control accuracy.
MV Drives:When driving large motors such as pumps,fans,compressors,and mills in cement plants,mining,power,water treatment,and oil and gas industries,GVC714A101 and its IGBT module are the core of the MV drives,achieving precise speed and torque control,greatly improving system efficiency and productivity.
Transmission System(HVDC/FACTS):In high-voltage direct current transmission(HVDC)systems and flexible alternating current transmission systems(FACTS,such as SVC/STATCOM),ABB GVC714A101 is responsible for driving IGBT valves to achieve flexible control of electrical energy and stable operation of the power grid.High voltage IGBT modules such as 5SHX1006H0003E.S.perform excellently in HVDC applications.
Wind power generation and solar inverters:In the inverters of large wind turbines and megawatt level solar photovoltaic inverters,GVC714A101 drives IGBT modules to achieve efficient energy conversion and grid control,maximizing the utilization of renewable energy.
Industrial power supply and induction heating:In high-power industrial power supplies(such as uninterruptible power supplies(UPS),charging stations)and induction heating equipment,ABB GVC714A101 and its supporting IGBT modules ensure the efficiency and stability of power conversion,meeting the needs of various industrial production processes.
Traction and electric transportation:In traction systems such as high-speed trains,subways,and electric vehicles,this type of gate driver and IGBT module are used to drive motors,providing efficient and reliable power output.
