Description

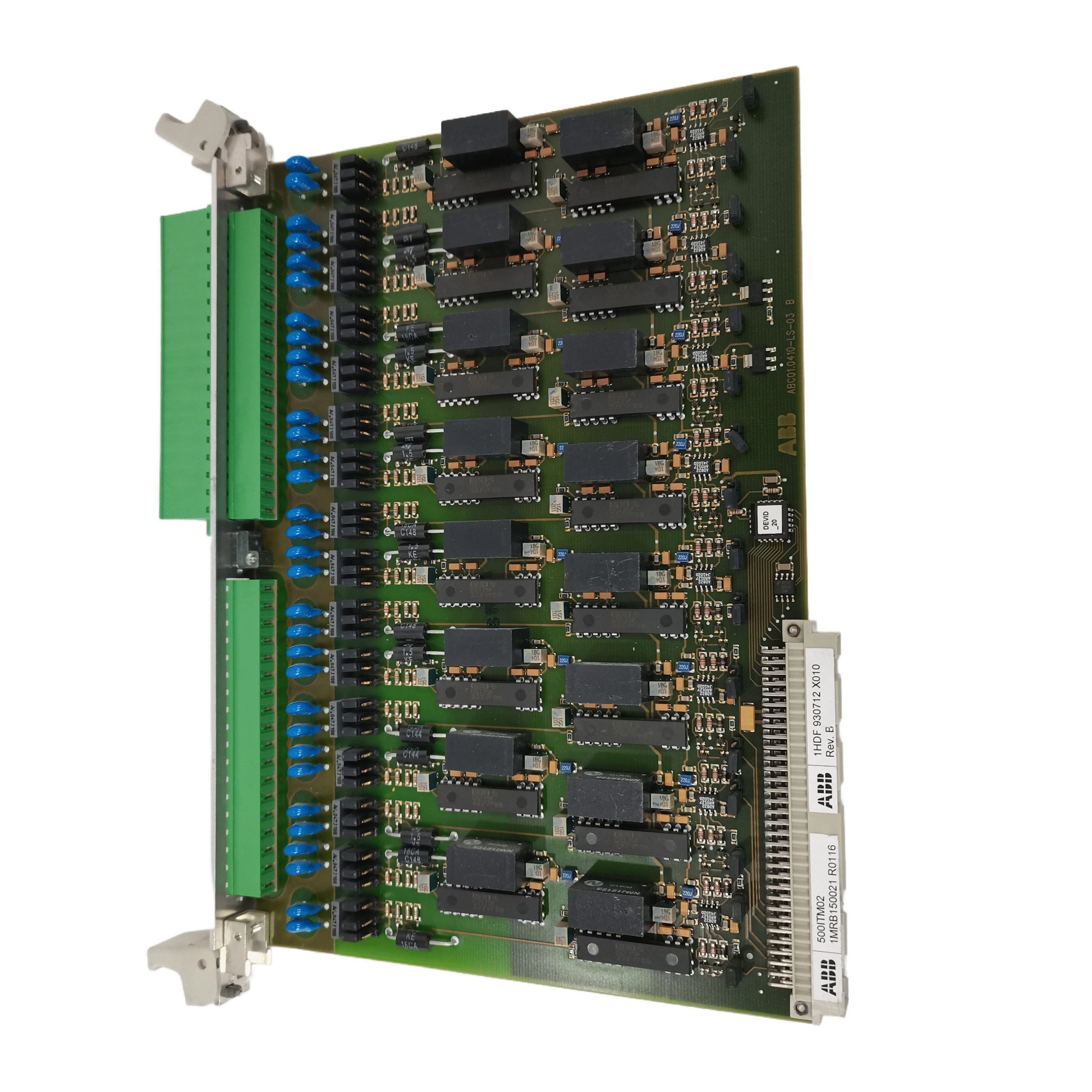

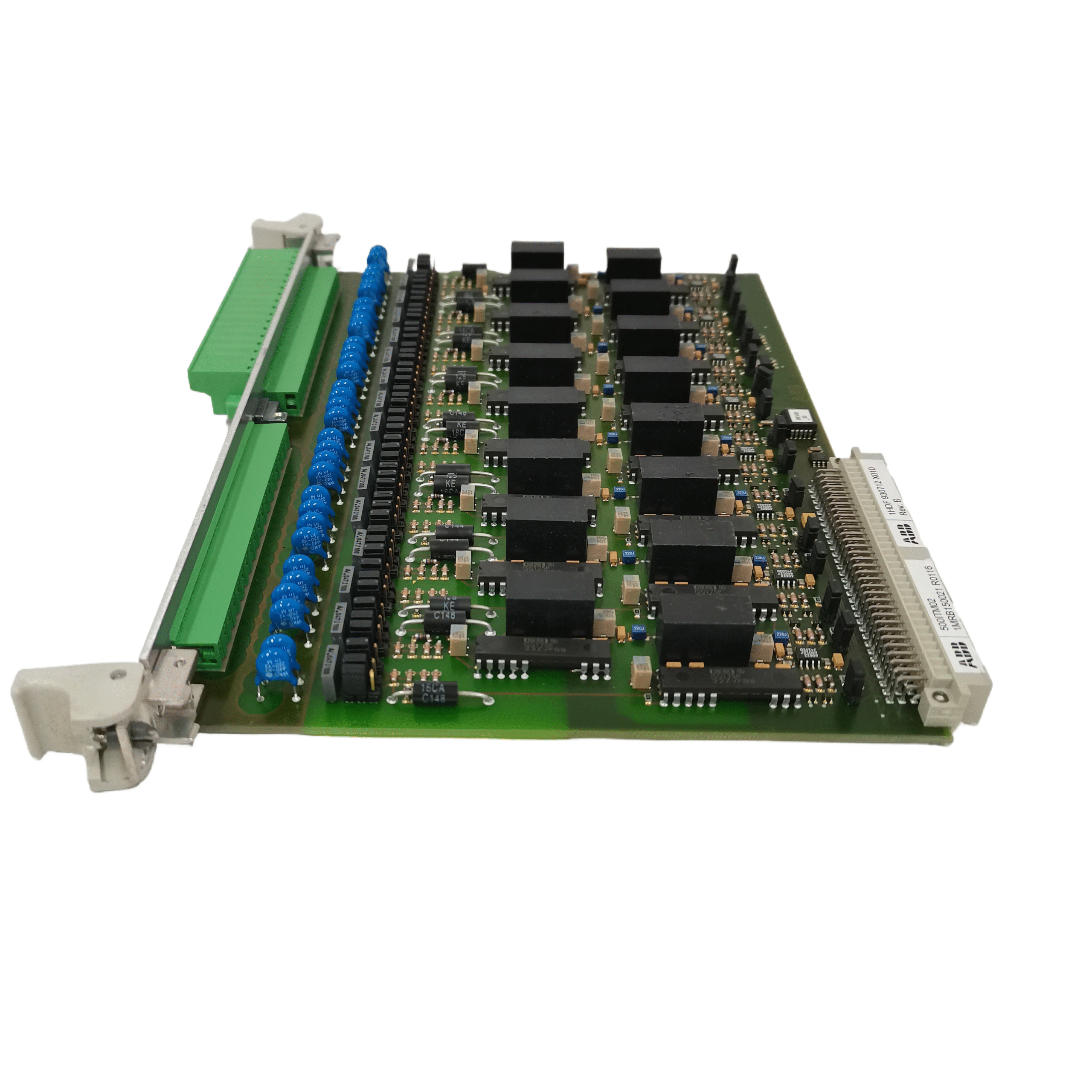

ABB 500ITM02 1MRB150021RO116
It is a temperature transmitter module designed for installation on a DIN rail in the field or in a control cabinet.
Main Functions and Features
Signal Conversion and Conditioning:
Its core function is to receive weak analog signals from temperature sensors (such as Pt100 RTDs and thermocouples).
It converts, isolates, and amplifies these signals into a standardized, interference-resistant analog output signal, typically a 4-20 mA or 0-10 V DC signal. This signal can be transmitted over long distances to a higher-level system such as a PLC, DCS, controller, or recorder.
“Smart” or Configurable Features:
The “02” in the model number generally indicates a configurable transmitter. Compared to the basic “01” model, it typically has more configuration features, such as:
Adjustable range: Users can set the input temperature range (e.g., 0-100°C, 50-200°C) and the corresponding output range using DIP switches or potentiometers.
Selectable sensor types: The transmitter can be configured to accept different types of Pt100 or thermocouples (e.g., J, K, T, etc.).
Linearization: Internationally standardized temperature-resistance/potential curves are built in to ensure a linear relationship between the output signal and temperature.
Wire break detection: The transmitter can detect a break in the sensor line and drive the output signal to a preset alarm level (e.g., below 4mA or above 20mA), alerting the system immediately.
Electrical Isolation:
This module provides electrical isolation between the input circuitry, output circuitry, and power supply. This is crucial because it:
Eliminates measurement errors caused by ground loops.
Protecting downstream equipment from damage caused by high-voltage surges or faults on the field side.
Improves immunity to electromagnetic interference, ensuring signal stability in noisy industrial environments.
Compact and DIN-Rail Mountable:
Designed to mount on a standard DIN rail (TS35), it saves space and can be easily integrated into a control cabinet, alongside other modules such as circuit breakers, PLCs, and power supplies.
High Accuracy and Reliability:
Made by ABB, it is renowned for its high accuracy, low drift, and long-term reliability in harsh industrial environments.
Applications
This temperature transmitter is widely used in industrial process control applications requiring reliable, accurate temperature measurement, such as:
Chemical and petrochemical plants
Pharmaceutical industry
Food and beverage processing
Water and wastewater treatment
Heating, ventilation, and air conditioning (HVAC) systems
Power generation industry
Manufacturing (plastics, automotive, and metalworking)
