Description

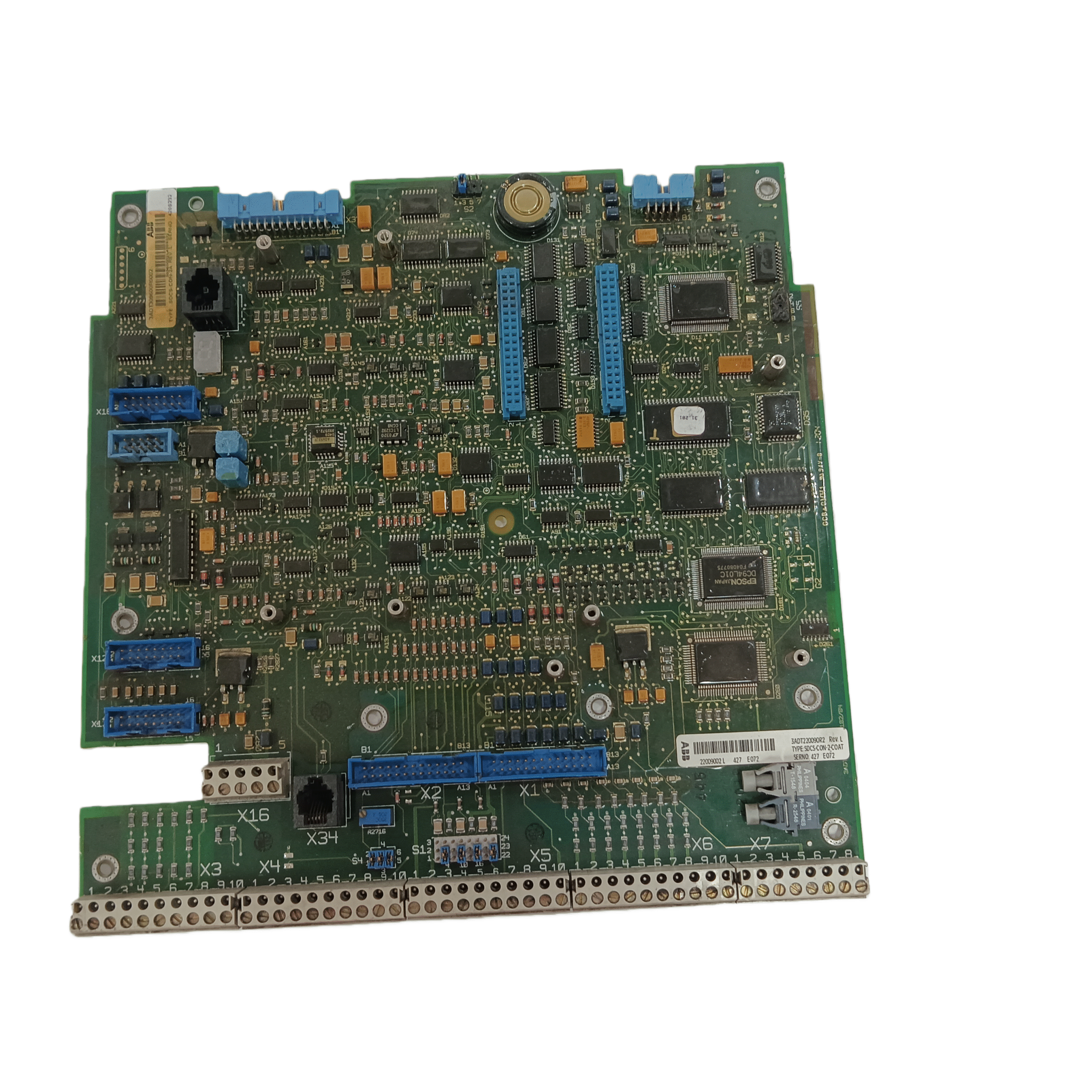

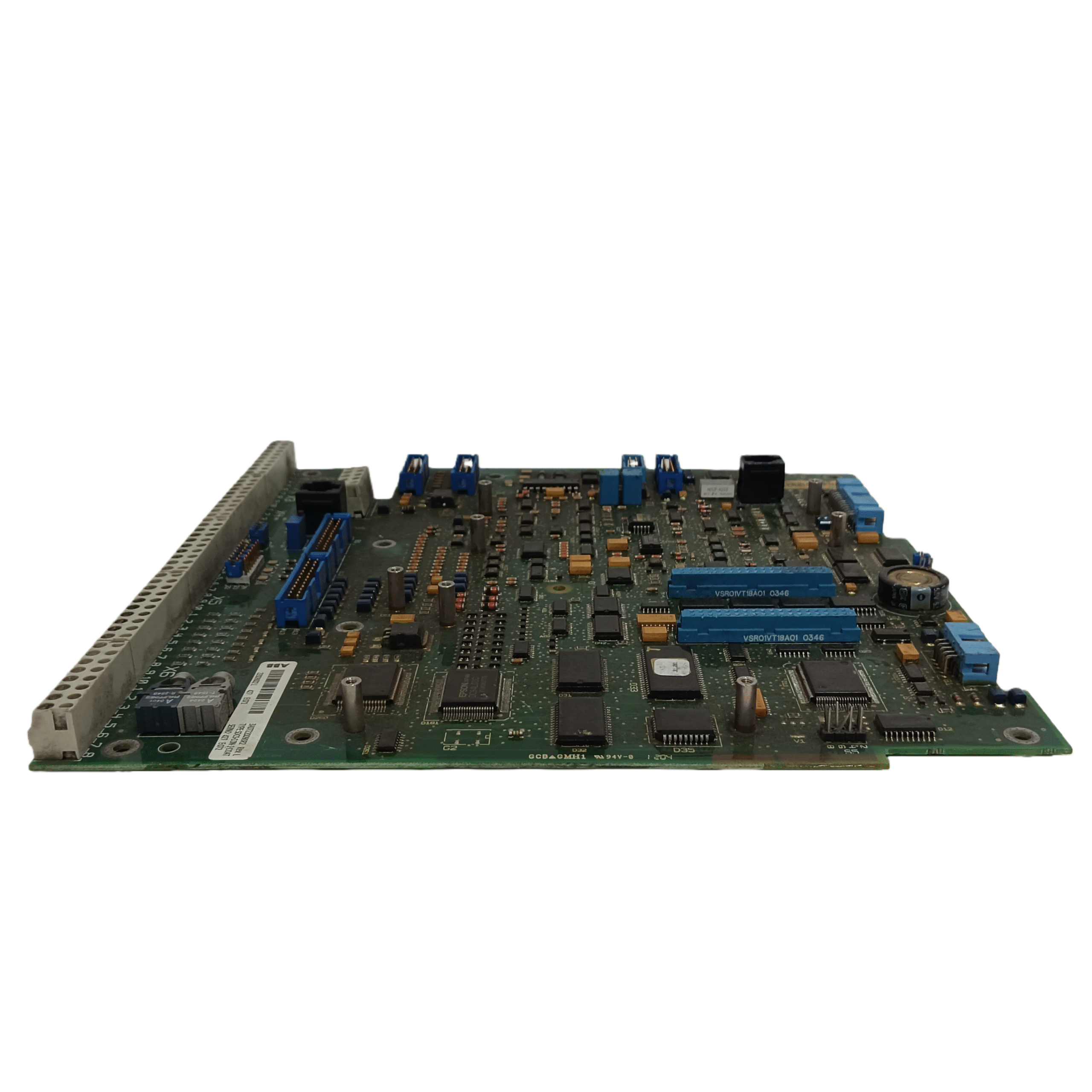

ABB SDCS-CON-2-COAAT 3ADT220090R2

It is a fiber optic communication adapter module for ABB large drive systems (especially ACS 800/1000 series).

Detailed Product Description

1. Core Function & Purpose

• Communication Protocol Conversion: It converts signals from a superior controller (like a PLC or main control board) into commands that the drive units can understand. It supports ABB’s DDCS Fiber Optic Bus.

• Electrical Isolation: Using fiber optics for communication completely avoids issues such as electrical interference and ground loop potential differences, ensuring communication stability and reliability in harsh industrial environments.

• System Expansion: Allows one master controller to connect to and control multiple drive units (frequency converters/inverters) via a fiber optic loop, building a centrally controlled drive system.

• Data Transmission: Responsible for transmitting critical control commands (e.g., Start, Stop, Speed Reference) and status information (e.g., actual speed, current, fault codes).

2. Model Number Breakdown

• SDCS: Indicates this is a component of the ABB Drive Control System.

• CON-2: Stands for “Controller Adapter Module Type 2,” a key interface unit in the system’s communication network.

• COAAT: This suffix specifically defines the module’s hardware version, firmware type, and supported features.

• 3ADT220090R2: This is ABB’s internal material number or order code, used to precisely identify and order this specific version of the module. The “R2” typically indicates a hardware or firmware revision.

3. Technical Features

• Fiber Optic Interface: Uses ST-type fiber optic connectors, offering high transmission speed and excellent noise immunity.

• Modular Design: Designed for standard DIN rail mounting, allowing for easy integration into drive cabinets.

• Status Indicators: Equipped with LED indicators to display power, communication status, and fault information, facilitating on-site commissioning and maintenance.

• High Reliability: Designed for industrial environments with a long Mean Time Between Failures (MTBF).

4. Typical Application Scenarios

This module is primarily used in medium-voltage or high-power applications requiring coordinated operation of multiple drive devices, such as:

• Metallurgy Industry: Main and auxiliary drives for rolling mills.

• Mining Industry: Mine hoists, belt conveyors.

• Pulp & Paper Industry: Multiple section drives in a paper machine.

• Marine Propulsion: Azipod propulsors.

• Oil & Gas: Pipeline compressors, pump control systems.

5. Role within the System

In a typical ABB Multi-Drive Control System:

1. The Master Controller (e.g., SDCS-PIN-xx) acts as the control brain.

2. The SDCS-CON-2-COAAT acts as the bridge connecting the master controller to the individual drive units.

3. Multiple Drive Units (e.g., inverter modules of ACS 800/1000) are connected in a series loop via fiber optics, with each unit connected via a similar interface module (e.g., SDCS-CON-1).

4. The entire loop exchanges data with the master controller through the SDCS-CON-2-COAAT, enabling synchronized control and monitoring.
