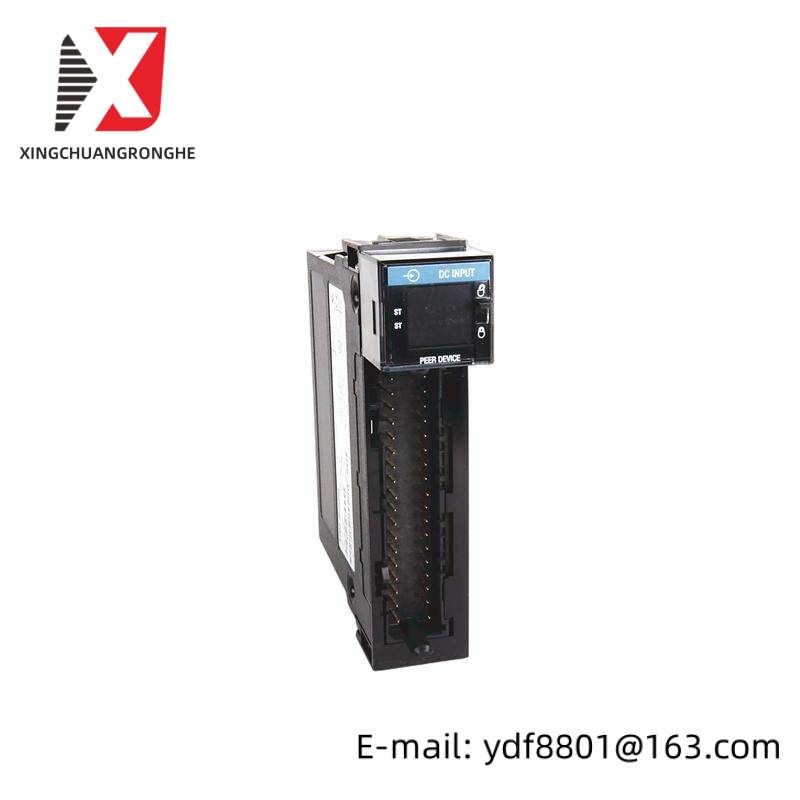

Allen Bradley 1756-IB16IF Input Module for ControlLogix Systems

Description

Input Type:Discrete

Number of Inputs:16

Communication Cable:16-Point

Voltage Category:24V DC

Operating Voltage Range:20.4…26.4V DC

Current per Point:0.5A @ 60°C, 1.0A @ 30°C

Power:24 Volts DC

Bus Current Draw, Max:200mA

Mounting:DIN Rail or Panel Mount

Resolution:320 MICRO-V/Count

Rejection Ratio:Normal Mode Noise > 80 DB, Common Mode Noise > 100 DB

Slot Width:1

    Experience enhanced efficiency and reliability with the AB 1756-IB16IF input module, specifically designed for the ControlLogix platform. This module is equipped with advanced technology to handle up to 16 discrete inputs, ensuring accurate data acquisition for critical industrial processes.

    Featuring a compact yet robust design, the AB 1756-IB16IF supports a wide voltage range of 20.4 to 26.4 volts DC, making it adaptable to various industrial environments. Its ability to draw a maximum of 200 milliamperes from the bus ensures stable operation under diverse conditions.

    Equipped with state-of-the-art noise rejection capabilities, the module ensures minimal interference and maintains high signal integrity, even in noisy industrial settings. This feature is crucial for maintaining the accuracy of data acquisition, which is essential for effective control and monitoring in automation systems.

    The AB 1756-IB16IF offers a high resolution of 320 micro-volts per count, providing precise measurement capabilities that are vital for sensitive applications requiring high precision. Its compatibility with both DIN rail and panel mounting options allows for flexible installation in various industrial settings, enhancing its versatility and ease of integration.

    With its comprehensive set of specifications and robust design, the AB 1756-IB16IF is the ideal choice for industries seeking to enhance their automation capabilities. Whether you’re looking to improve efficiency, reduce downtime, or simply upgrade existing systems, this input module delivers unparalleled performance and reliability, setting new standards for industrial automation.
