Description

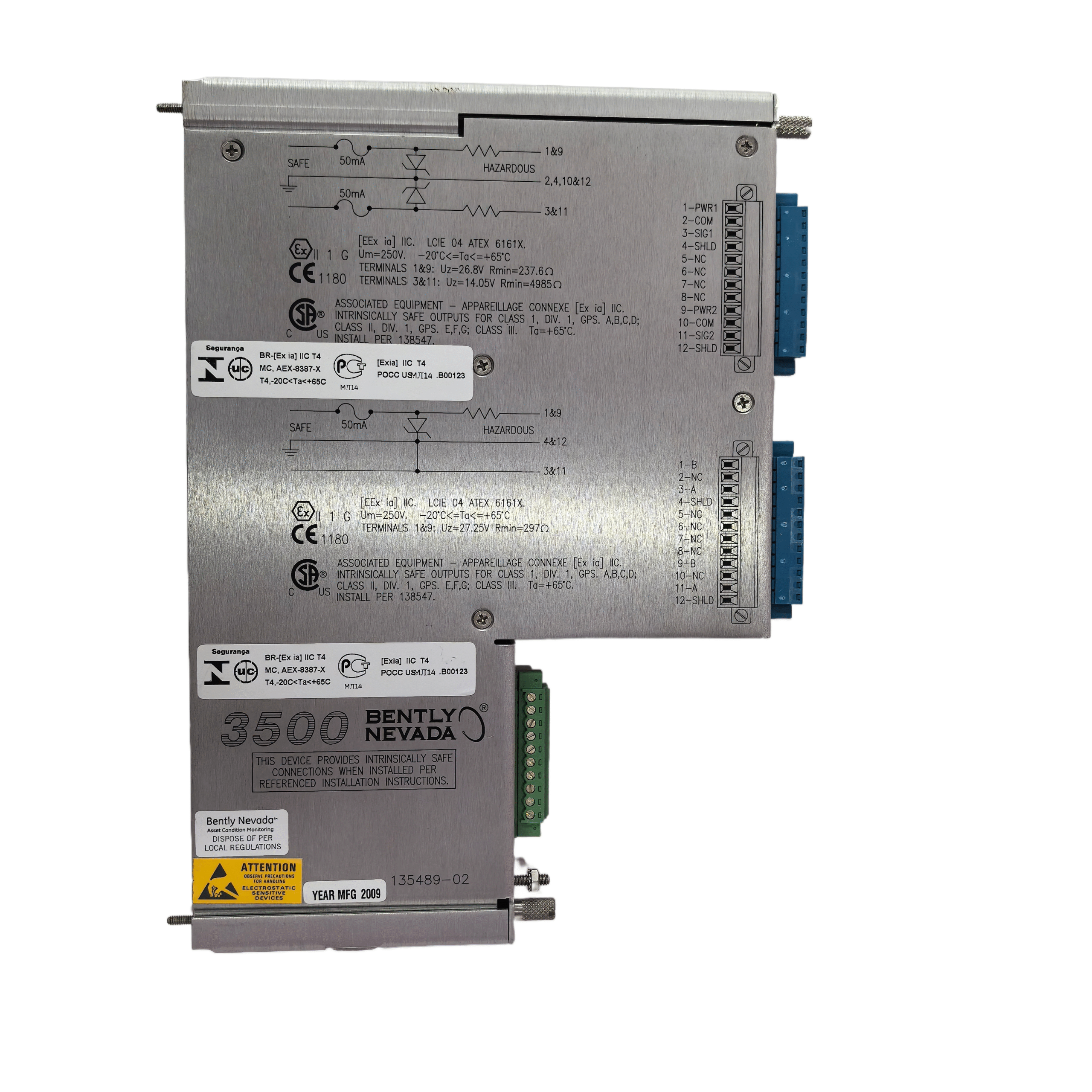

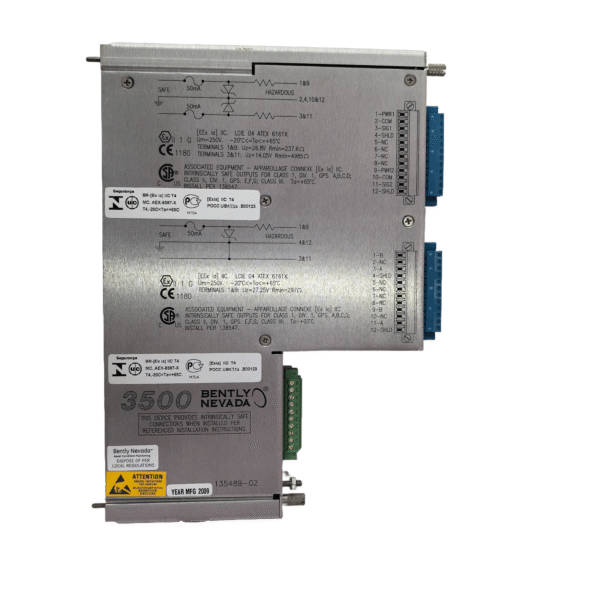

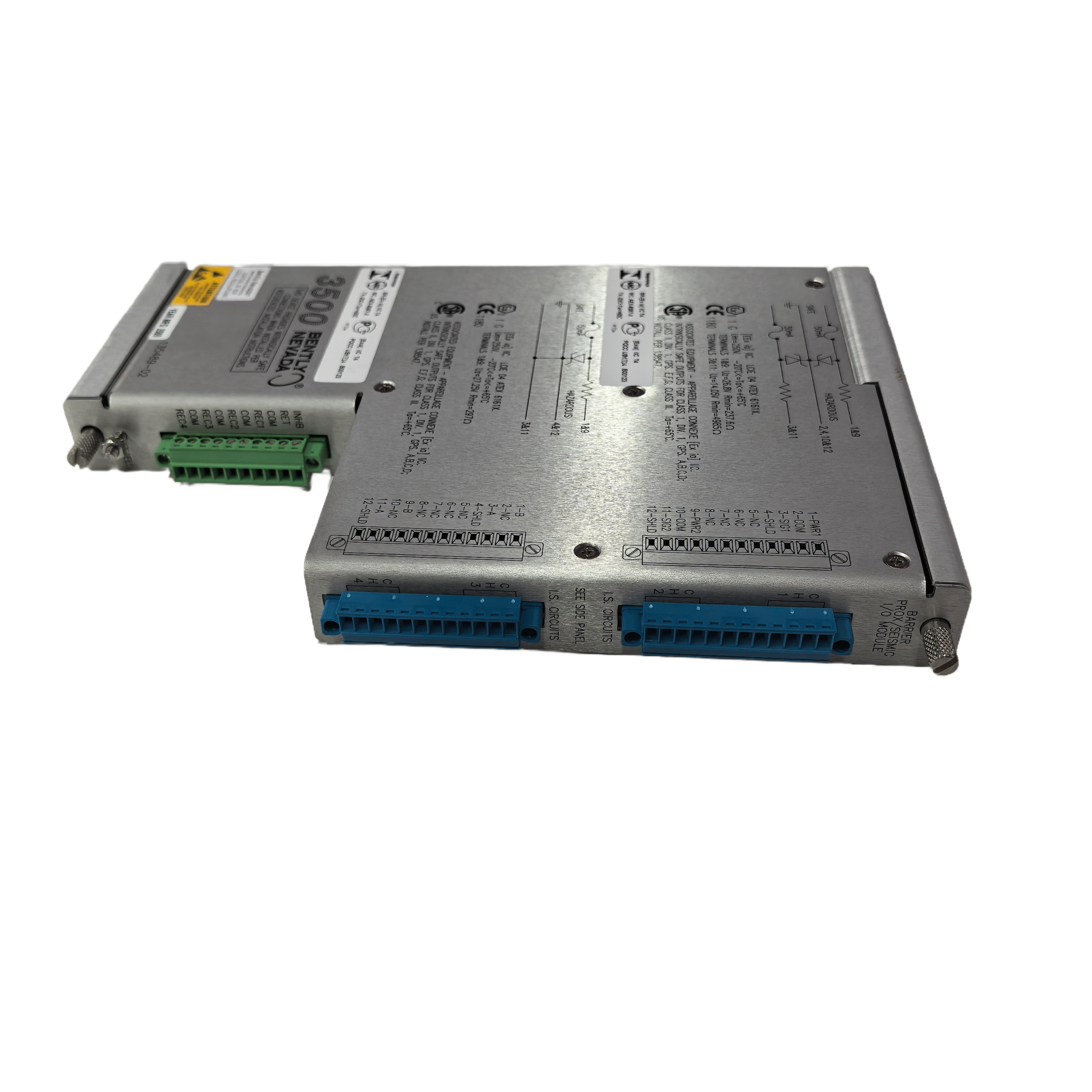

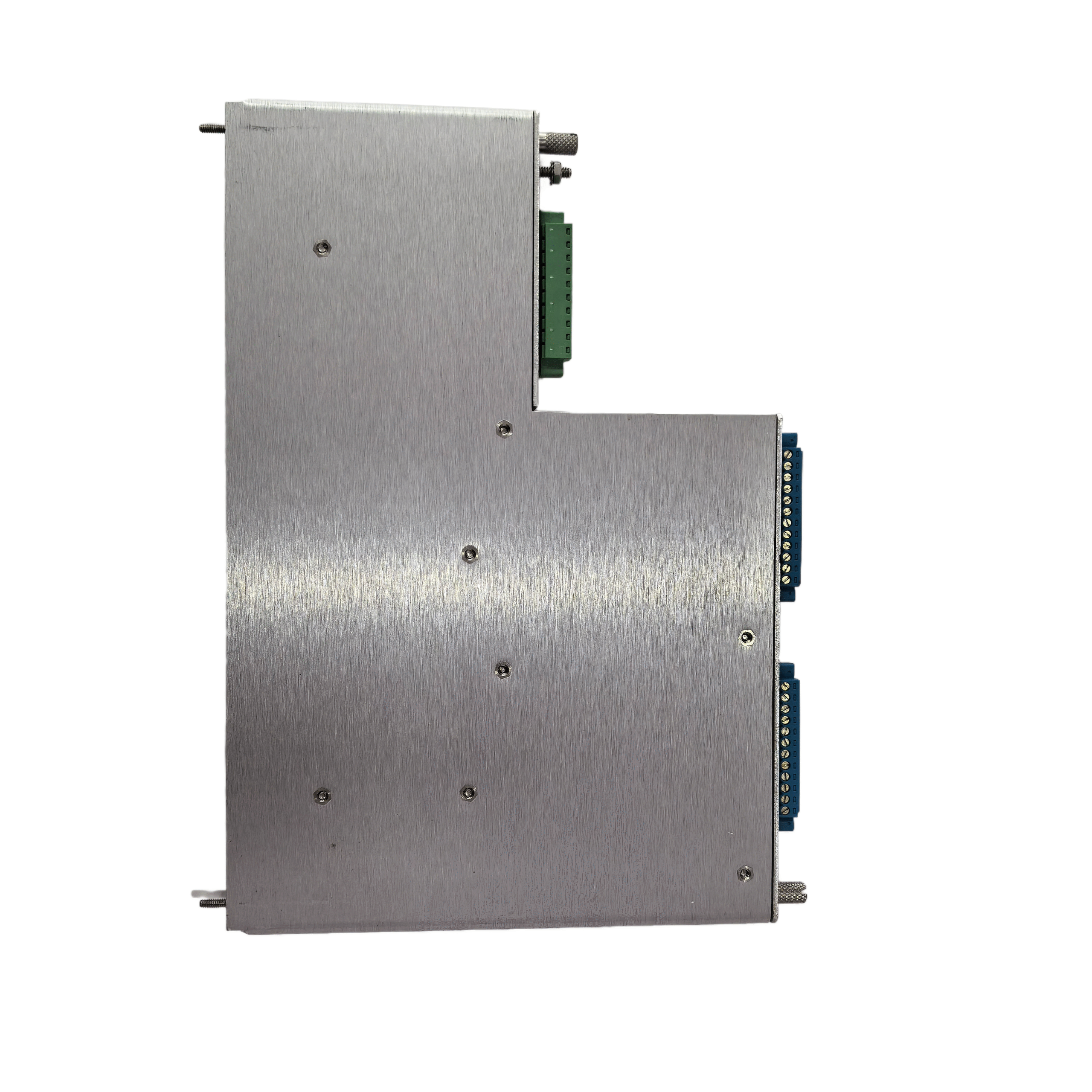

Bently Nevada 135489-02 (3500/70M) Display Interface Module
the 3500/70M Display Interface Module. It is a critical component within the Bently Nevada 3500 Machinery Protection System, designed for real-time monitoring and visualization of machinery health data in industrial environments.
1. Product Overview & Primary Function
The Bently Nevada 135489-02 (3500/70M) is a Display Interface Module.
Its core function is to provide a visual interface for the 3500 monitoring system by enabling the connection of a VGA monitor (often with touchscreen capability) to display real-time machinery data, alarm conditions, and historical trends15.
This facilitates enhanced situational awareness for operators and engineers, allowing for quick identification of potential machine faults and ensuring the safety and reliability of critical assets like turbines, compressors, and pumps.
2. Key Technical Specifications
For a quick comparison of its core technical specs, here’s a table:
| Feature Category | Specification / Description | Source |
|---|---|---|
| Full Model Number | 3500/70M 135489-02 | 1 |
| Core Function | Provides a visual interface for the 3500 system via a VGA monitor, often with touchscreen support | 1 |
| Physical Dimensions | Approximately 20 x 20 x 10 cm (Width x Height x Depth) | 1 |
| Weight | Approximately 0.55 kg | 1 |
| Power Consumption | -02 Display Unit: Approximately 12.0 Watts Combined (Interface Module & Display Unit): Approximately 15.5 Watts |
1 |
| Installation Options | Facial Mounting, 19-inch EIA Rack Mounting, Panel Mounting, or Independent Mounting | 1 |
| Compatibility | Each 3500 rack can accommodate up to two display modules. | 1 |
| Primary Features | Touchscreen operation, user-customizable displays, real-time alarm annunciation, historical data recording for analysis | 1 |
| Country of Origin | USA |
3. Detailed Functional Description
-
Visual Data Presentation: The module interfaces with a standard VGA monitor, providing a clear window into the status of all modules within the 3500 rack (e.g., vibration, speed, position)1.
-
Touchscreen Interaction: The associated display unit (-02 variant specified) supports touchscreen operation, simplifying navigation through menus, parameter setup, and data querying, which streamlines operational procedures1.
-
User-Customizable Displays: Operators can tailor the display layouts to emphasize the most critical information for their specific machinery and operational preferences, choosing which data points and trends to view1.
-
Real-Time Alarm Annunciation: Critical alerts from monitoring modules (like the 3500/42M Vibration Monitor4) are displayed immediately, prompting timely operator response to potential machine faults1.
-
Data Logging Capability: The module can record historical operational data. This information is vital for post-event analysis, predictive maintenance strategies, and troubleshooting root causes of machine issues1.
4. Typical Applications & Industries
The 135489-02 module is employed wherever Bently Nevada 3500 Systems are installed to protect critical rotating equipment. Key industries include:
-
Power Generation: Monitoring turbines (steam, gas), generators, and large pumps.
-
Oil & Gas: Compressors, turbines, and pumps on offshore platforms and in refineries.
-
Chemical & Petrochemical Plants: Critical pumps and compressors.
-
Pulp & Paper Industry: Large rollers and turbines.
-
Metals & Mining: Rotating equipment like fans and compressors.
5. System Integration & Compatibility
-
-
The 135489-02 module is designed for seamless integration into the Bently Nevada 3500 series framework.
-
It operates in conjunction with other modules in the 3500 system, such as the Power Supply (3500/15), Frame Interface Module (3500/20), Vibration Monitors (e.g., 3500/42M)4, Relay Modules, and Transient Data Interface (TDI) modules4.
-
It is crucial to ensure compatibility with the specific configuration of your 3500 rack and the associated monitoring modules.
-
