Description

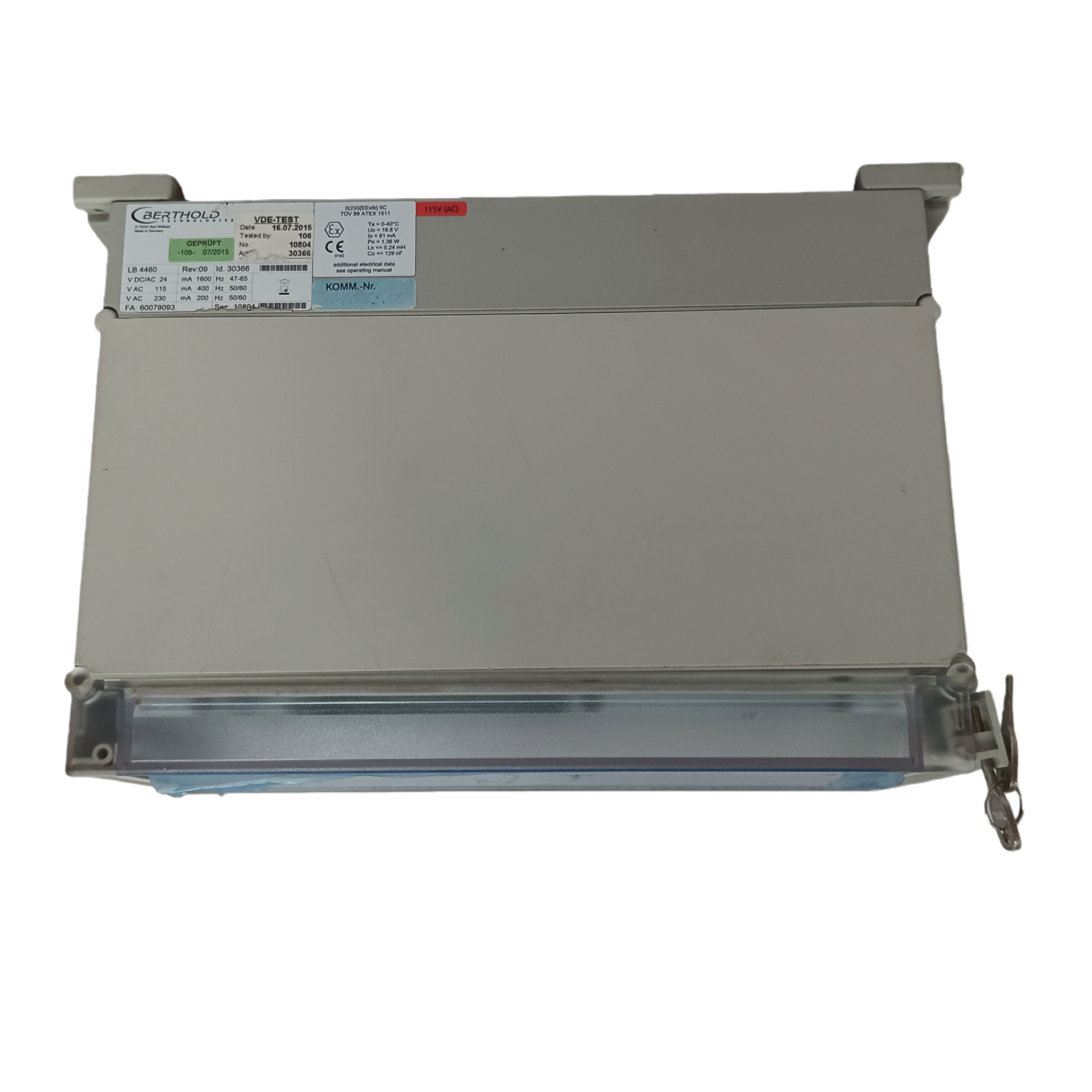

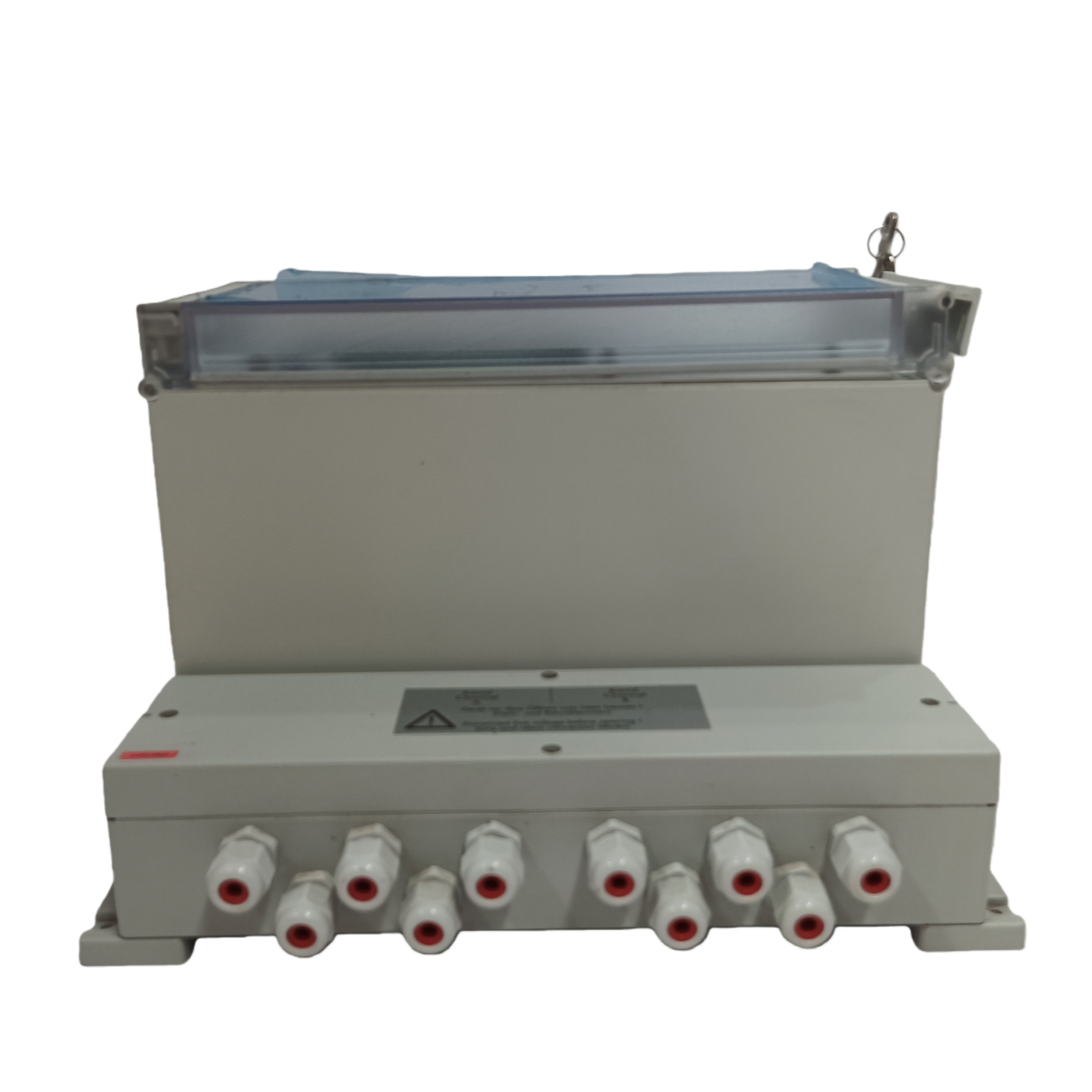

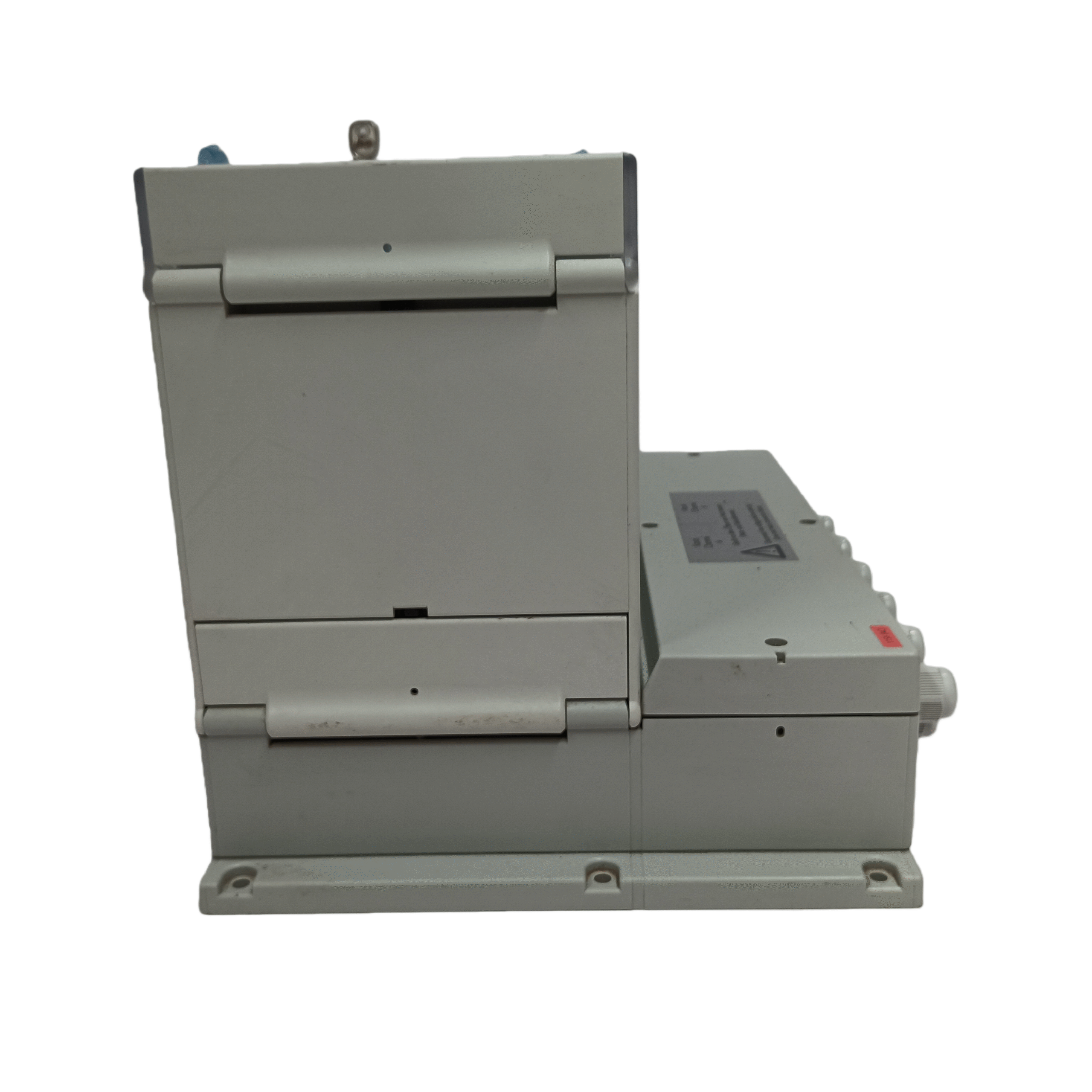

BERTHOLD LB4460

It is a very famous and classic product in the field of industrial online measurement. It is an online radioactive density meter/concentration meter.

Working Principle

Its core working principle is the Gamma Ray Attenuation Method:

1. Radiation Source: One part of the instrument (the source container) houses a low-activity gamma radioactive source (e.g., Cesium-137).

2. Detector: The other part of the instrument (the detector unit) is mounted on the opposite side of the pipe or vessel, aligned with the radiation source.

3. Measurement: Gamma rays pass through the pipe wall and the process medium.

4. Attenuation: The medium absorbs a portion of the gamma rays. The higher the density of the medium, the more radiation is absorbed, and the weaker the signal reaching the detector.

5. Calculation: The detector converts the received radiation intensity into an electrical signal. The internal microprocessor in the LB 4460 calculates this signal based on a pre-defined calibration curve and displays it as the real-time density or concentration value of the medium.

Key Features & Advantages

1. Non-Contact Measurement:

   • Advantages: The sensors do not contact the medium, making it suitable for measuring corrosive, abrasive, high-temperature, high-pressure, crystallizing, and high-viscosity media that are challenging for traditional contact instruments.

   • Does not cause pipe clogging or pressure loss.

2. High Accuracy and Stability:

   • Employs advanced detector and electronic technology to provide highly accurate and stable measurement results with minimal long-term drift.

   • Crucial for process control and product quality assurance.

3. Robust Design:

   • Designed for harsh industrial environments (e.g., mining, metallurgy, chemical, pulp & paper, wastewater treatment), typically featuring a sturdy housing and good protection rating.

4. Easy Installation and Maintenance:

   • Features a “clamp-on” design that can be installed directly onto existing pipes without major process modifications.

   • Calibration and maintenance are relatively straightforward.

5. Safe and Reliable:

   • The radioactive source is strictly sealed in a source container with multiple safety protections, complying with international radiation safety standards. It is very safe during normal operation, with regulated procedures required only for installation and maintenance.

6. Versatile Outputs and Communication:

   • Provides standard 4-20 mA analog outputs and relay alarm outputs for easy integration into DCS, PLC, or other control systems.

   • Later models may support fieldbus communication (e.g., Profibus, Modbus).

Typical Applications

The LB 4460 has a very wide range of applications, covering almost all industrial sectors requiring continuous online density or concentration monitoring:

• Mining & Mineral Processing: Measuring slurry density (e.g., iron ore, copper, gold, coal slurry) to optimize flotation and thickening processes.

• Chemical Industry: Monitoring the concentration of acids, alkalis, polymers, solvents, etc.

• Pulp & Paper Industry: Controlling pulp consistency.

• Food & Beverage: Measuring the concentration of syrups, juices, dairy products, etc.

• Wastewater Treatment: Monitoring sludge density and concentration.

• Power Industry: Measuring gypsum slurry density in flue gas desulfurization systems.

• Building Materials Industry: Monitoring the density of cement slurry.

System Components

A complete LB 4460 measurement system typically includes:

1. Detector Unit: Contains the scintillation detector and high-precision electronics.

2. Radioactive Source Container: Houses the encapsulated gamma source, featuring a safety shutter and shielding.

3. Transmitter/Evaluation Unit: Used for signal processing, display, parameter setting, and signal output. This unit is sometimes integrated with the detector.

4. Mounting Kit: Used to precisely align and fix the source and detector onto the pipe.
