Description

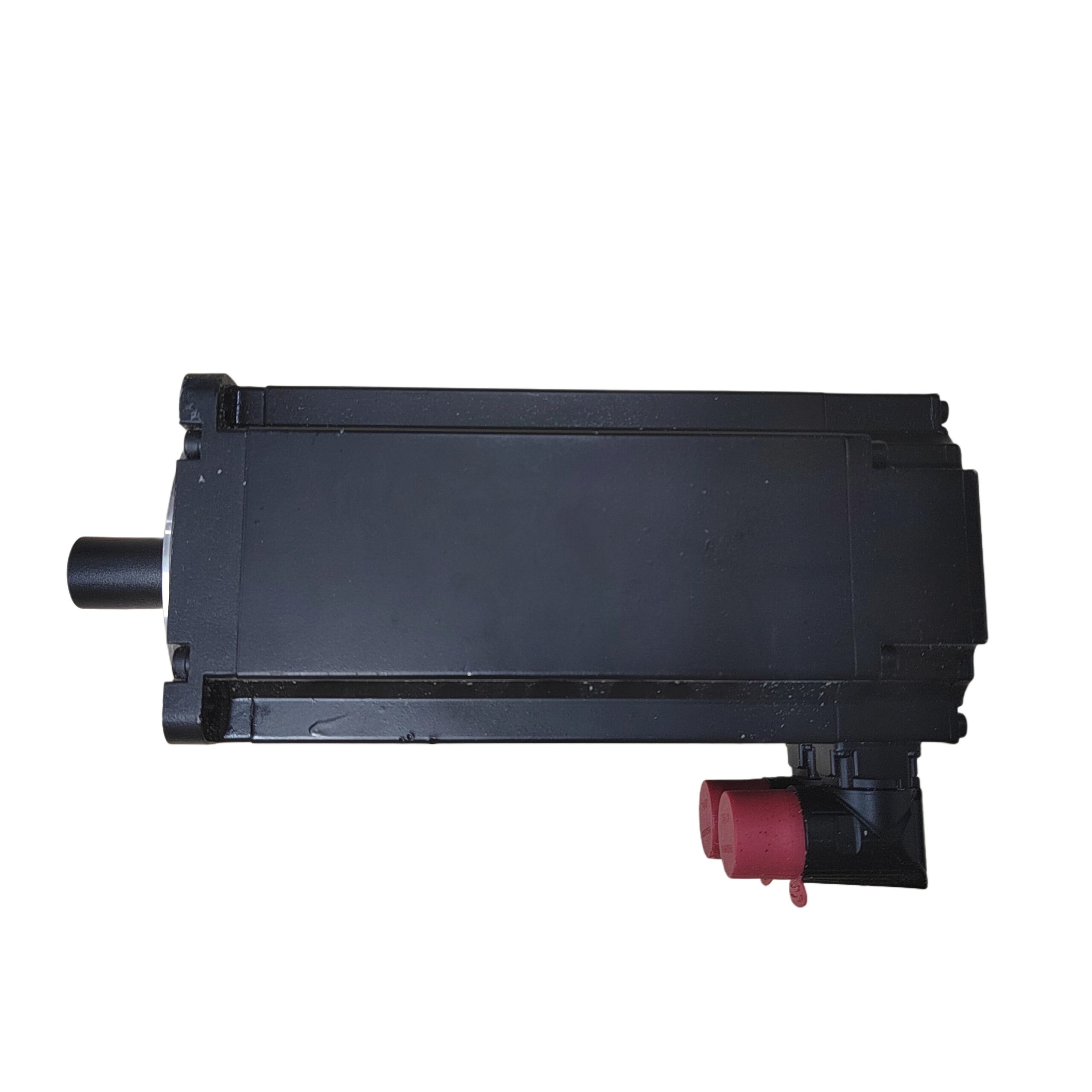

B&R 8LS46.R0045D000-0 servo motor
The B&R 8LSA46.R0045D000-0 is a high-performance three-phase permanent magnet synchronous servo motor produced by B&R. It belongs to the 8LS series and is designed for applications that require high dynamic response, high positioning accuracy and compact size.
Key Features and Benefits
High Power Density and Compact Design: Utilizing advanced electromagnetic design, this motor delivers high output power in a compact package, delivering powerful power within limited space.
High-Precision Control: As a synchronous motor, it works with B&R’s ACOPOS series servo drives to achieve precise control of position, speed, and torque. The motor incorporates a built-in EnDat encoder or resolver as a feedback element, ensuring high control accuracy.
Fast Response and High Dynamic Performance: With excellent dynamic characteristics, it enables fast starting, stopping, acceleration, and deceleration, making it suitable for applications requiring high-speed response.
High Reliability and Stability: Utilizing high-quality materials and manufacturing processes, such as preloaded deep-groove ball bearings and NdFeB permanent magnets, it ensures long-term stable operation. Stator power dissipation is conducted directly through the housing, ensuring excellent heat dissipation.
Intelligence and Ease of Use:
Automatic Identification: All motor mechanical and electrical parameters are stored in the encoder. When connected to the servo drive, the system automatically identifies the motor model, eliminating manual configuration and simplifying the commissioning process.
Remote Monitoring: Supports remote monitoring and maintenance via the network for convenient management
Key Technical Parameters
Type: Three-phase permanent magnet electronically commutated synchronous motor
Rated speed (nN): 4500 rpm
Maximum speed (nmax): 12000 rpm
Rated torque (Mn): 4800 Nm
Stall torque (M0): 8000 Nm
Maximum torque (Mmax): 30.40 Nm
Rated power (PN): 2262 W
Number of pole pairs: 5
Feedback system: Equipped with resolver or EnDat encoder
Cooling method: Self-cooling
Protection level: IP64
Connection method: Angled rotary connector
Weight: Approximately 6.50 kg (excluding brake)

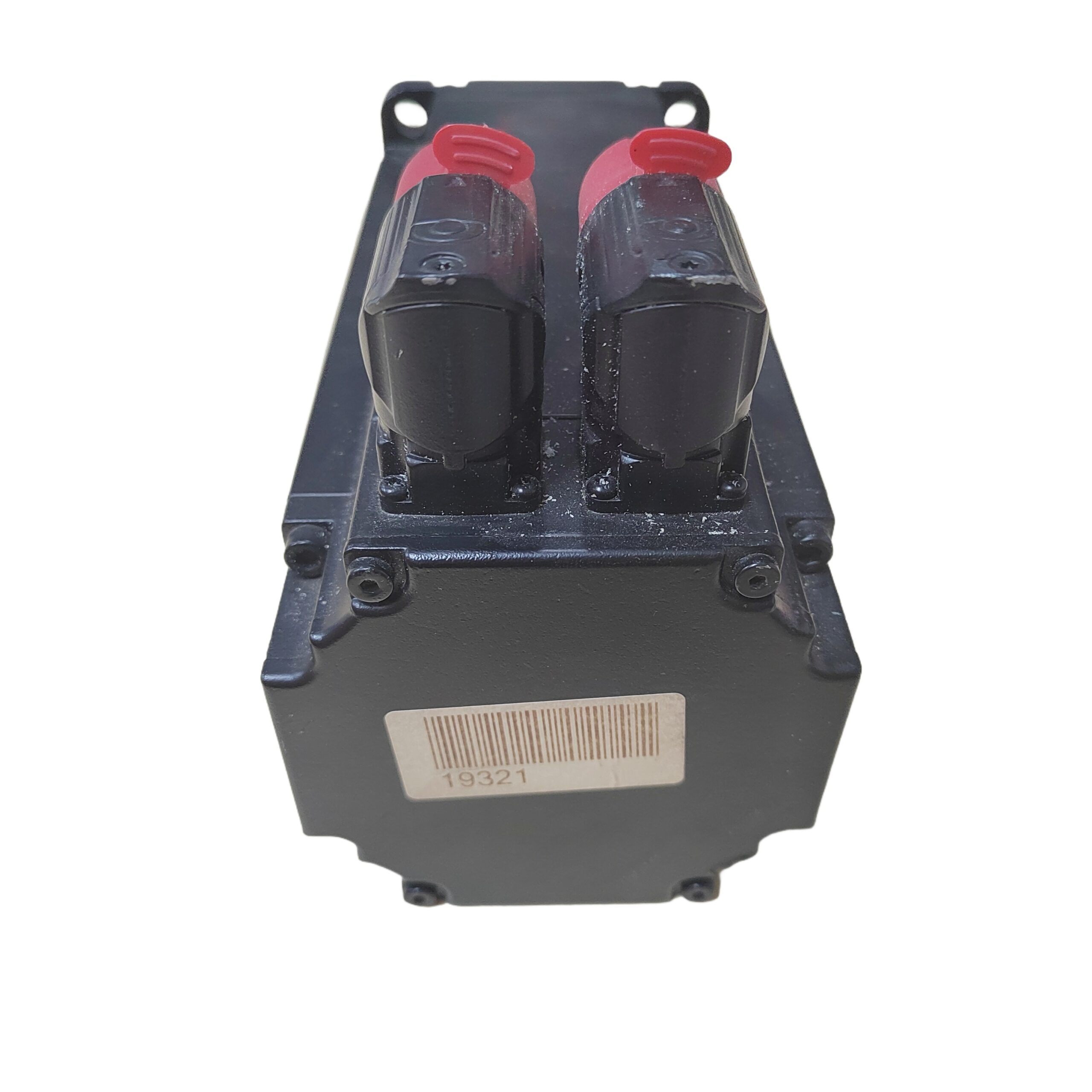

Electrical connection: Via two SpeedTEC circular plugs
