ElmoG-TUB30480ERSS0 servo drive

Description

ElmoG-TUB30480ERSS0 servo driver

It is a high-performance Ethernet servo drive (or motion control module)

1. Product Introduction：

ElmoG-TUB30480ERSS0 is a high-performance, compact digital servo drive launched by Elmo Motion Control, designed specifically for industrial automation, precision motion control, and high dynamic response applications. As a member of the Elmo Gold Line series, this driver integrates advanced digital control algorithms, high power density, and excellent reliability, making it suitable for fields such as robotics, semiconductor equipment, medical instruments, packaging machinery, etc. that require high precision and stability.

2. Core Features

High power density design

Despite its compact size (compliant with TUB series micro packaging standards), ElmoG-TUB30480ERSS0 can provide up to 480V DC input voltage and sustained 30A output current (peak can reach even higher), achieving strong power output in limited space, making it suitable for integration into devices with limited space.

Multiple feedback support

Supports multiple types of encoder inputs, including EnDAT, BiSS-C, Resolvers, Hall Sensors, and Incremental Encoders (ABZ), compatible with mainstream motor feedback systems, ensuring high-precision closed-loop operation of position, speed, and torque control.

Advanced control mode

Provide multiple control modes: position control (PPM), speed control (SPM), torque/current control (TMM), and support advanced functions such as electronic gears and electronic camshafts to meet complex motion trajectory requirements.

Networked communication interface

Built in EtherCAT master/slave interface (model suffix “SS” indicates EtherCAT functionality), supports real-time industrial Ethernet communication, and can be seamlessly integrated into automation systems based on PLC or motion controllers to achieve high-speed data exchange and synchronous control.

Intelligent diagnosis and protection mechanism

Integrate comprehensive fault detection functions, such as overcurrent, overvoltage, undervoltage, overheating, short circuit protection, etc., and report status information in real time through LED indicator lights or communication protocols to improve system safety and maintenance efficiency.

Wide voltage input range

Support 85-480V DC wide voltage input, adapt to different power supply environments, and enhance system deployment flexibility.

3. Application scenarios：

Industrial robot joint drive

CNC machine tool feed axis control

Precision positioning platform in automated assembly line

Rotating scanning mechanism in medical imaging equipment

Wafer Handling System in Semiconductor Manufacturing Equipment

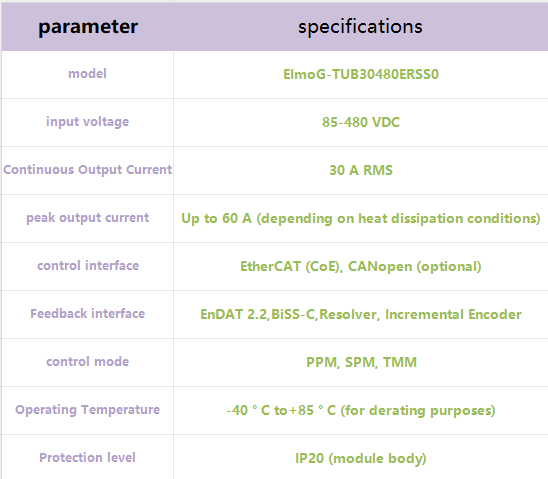

4. Overview of Technical Specifications



The ElmoG-TUB30480ERSS0 servo drive is an ideal choice for high-end motion control systems due to its high dynamic response, compact structure, powerful communication capabilities, and flexible control options. It not only improves the accuracy and efficiency of equipment, but also promotes the development of intelligent manufacturing through digital connections. For engineers who pursue high performance and reliability, this driver is a key component for achieving precise motion control.
