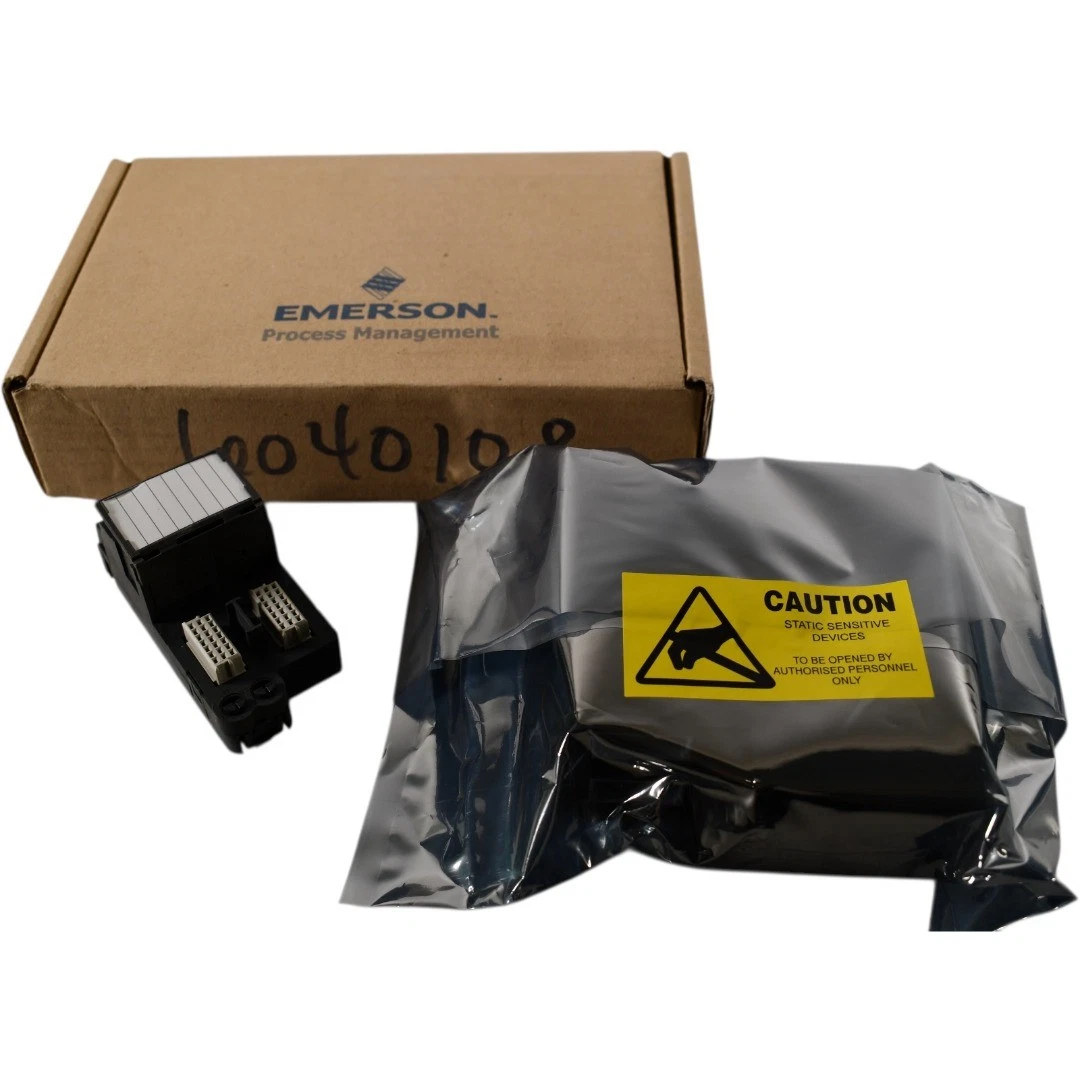

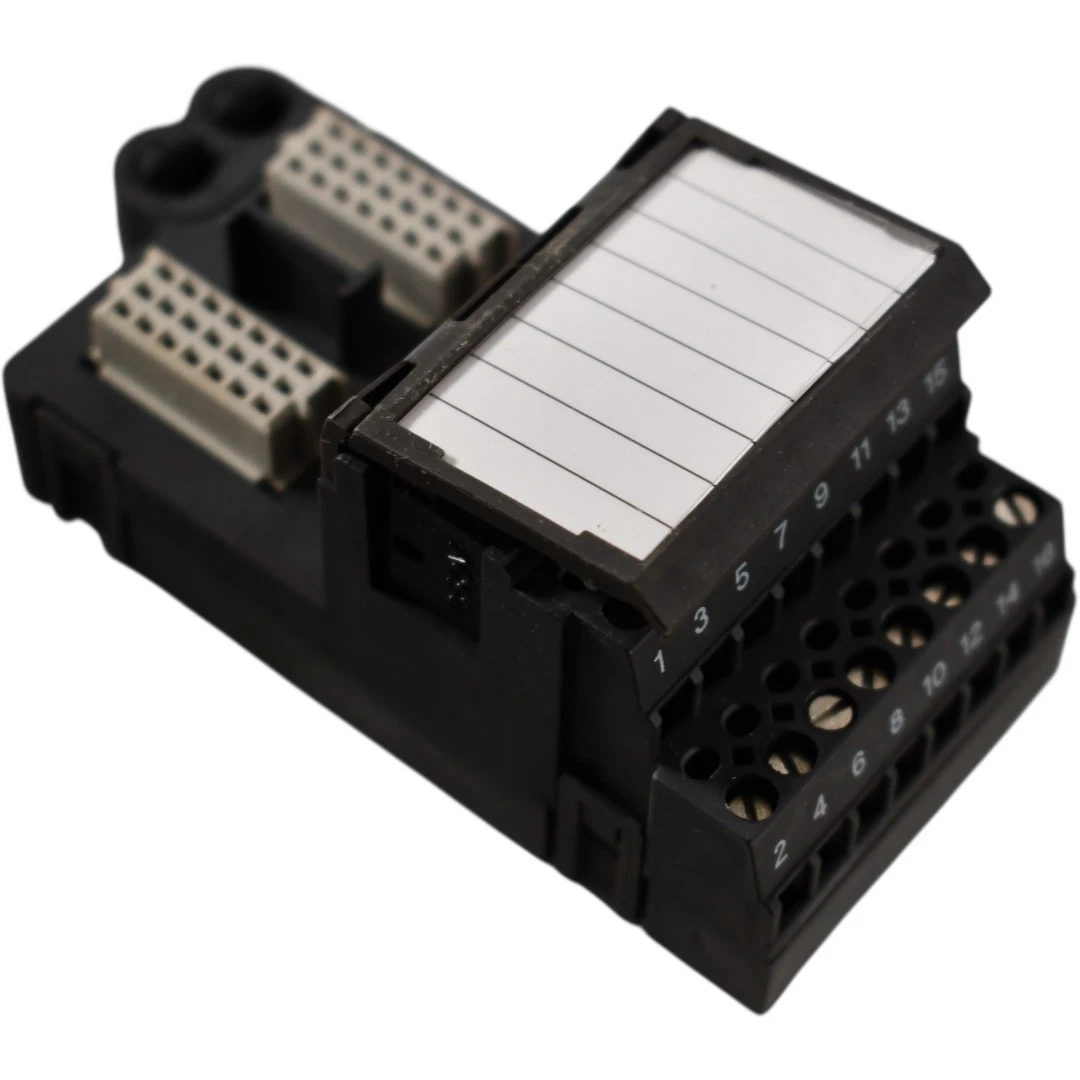

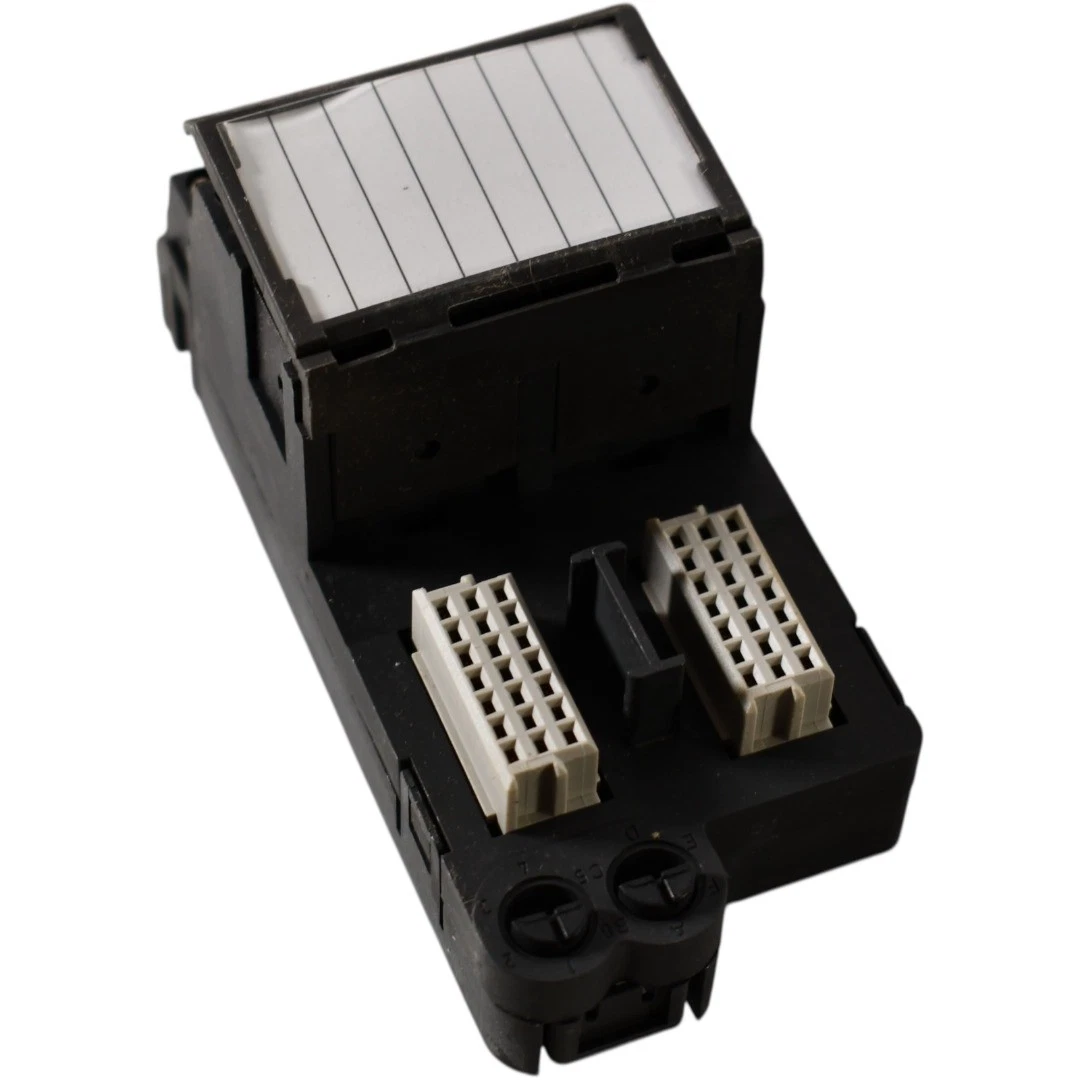

EMERSON KJ3209X1-BA1 DO Output Module

Description

EMERSON KJ3209X1-BA1 DO

It is an output module produced by Emerson and is suitable for DeltaV control system.

• Product Type: Discrete Isolated Output Module.
• Signal Input: It features two independent eddy current sensor signal inputs with an input voltage range of -1 ~ -22V DC. The compatible sensors include Epro’s PR642X series eddy current sensors and their matching preamplifiers, as well as equivalent sensors from other manufacturers. Additionally, the module is equipped with a keyphasor (tachometer) signal input, which requires a signal voltage greater than 13V.
• Signal Output: It provides two current outputs representing characteristic values, configurable as 0~20mA or 4~20mA; two 0~10V voltage outputs representing characteristic values; two 0~20Vpp dynamic signal outputs for spectrum analysis; and two 0~10V DC voltage outputs. These latter two outputs are proportional to the distance between the sensor and the measured surface.
• Limit Monitoring Function: Each channel can be individually set with alarm and danger thresholds, as well as alarm hysteresis values to prevent repeated alarm triggers. It also includes a limit multiplier function, allowing the setting of a multiplication factor (1.00 ~ 5.00) to avoid unnecessary alarms or shutdowns during special conditions such as passing through critical speeds. The module has four alarm outputs, which can be configured as normally open (NO) or normally closed (NC), and it also features an alarm latching function.
• Status Indication: Module status information can be obtained through the front panel “Channel OK” indicator lights, “Channel OK” Outputs 1/2, and via computer and configuration software displayed in the “Device Status” section.
• Application Field: Primarily used in automated control systems, such as servo motor control and other industrial automation scenarios.
