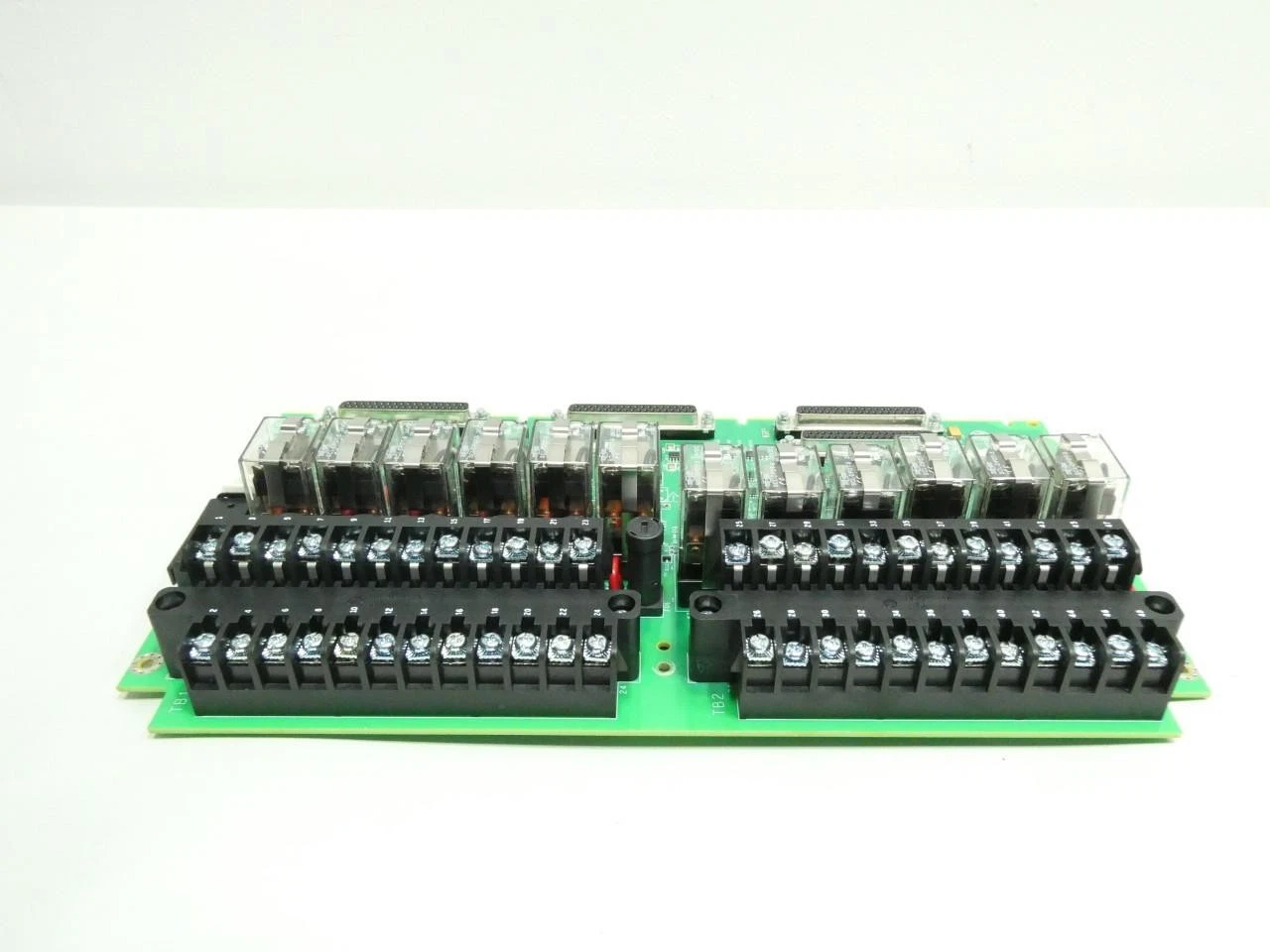

GE IS200TRYH1BHH IS200TRLYH1B  Relay output module/terminal board



🛠️ Product Basic Information

Item Description
Core Model Number IS200TRLYH1BHH (Also commonly abbreviated as IS200TRLYH1B series)
Manufacturer General Electric (GE)
Product Line Mark VI or Mark VIe Gas/Steam Turbine Control System
Product Type Analog I/O Board or Relay Output Module/Terminal Board (Descriptions vary by supplier)

📝 Key Functions & Features

  • Primary Role: This module is part of the GE Speedtronic Mark VI/Mark VIe control system, which serves as a central control system for gas and steam turbines.

  • Signal Processing: As an Analog I/O Board (Model IS200TRLYH1BHH), it performs scaling and conditioning for various analog signals. Signal types processed include:

    • LVDT Input, Servovalve Output

    • Thermocouple Input

    • 4-20 mA Input and Output (e.g., compressor stall detection signals, fuel flow pressure signals)

    • Vibration Input, Relay Driver Output

    • Pulse Input, Voltage Input

    • Generator and Line Signals

  • Relay Output: As a Relay Terminal Board, it provides multiple relay output channels (some sources indicate 8, others 12) for controlling external devices like solenoid valves, with contact type being Form C (combination of normally open and normally closed).

  • System Connection: Connects to other system boards (e.g., STCA board, TCQC board) and terminal boards via various connectors (e.g., 2PL, 3PL, JE) for power and data communication.

  • Hardware Configuration: The board is equipped with hardware jumpers (e.g., J1, J2, J5, J6) used to configure output current range (e.g., 20mA or 200mA) and enable other functions.

📊 Technical Parameter Overview

Parameters may vary across different model variants based on differing information sources:

Parameter Category Description
Electrical Parameters • Input Voltage: Commonly 24 V DC
• Contact Rating: Some sources indicate 10A @ 250V AC/DC, others show 5A
• Input Voltage Range: Some sources indicate 110-240V AC
Physical Parameters • Number of Relays: 8 or 12
• Operating Temperature: Typically -20°C to 60°C, some sources indicate up to -40°C to 85°C or -40°C to 65°C
Design Features • High Reliability: Industrial-grade design, suitable for harsh environments
• Redundancy Support: Supports single, dual, and triple redundant systems
• Isolation Protection: Features input/output current isolation and transient overcurrent protection

💼 Application Areas

This module is widely used in industrial automation fields requiring high reliability, particularly in the energy sector:

  • Power Generation: Used for controlling gas turbines and steam turbines.

  • Oil & Gas: Controls natural gas compressors, pumping stations, and other equipment.

  • Other Industries: Also used in critical industries such as chemicals, metallurgy, rail transportation, and building automation.
