GE IS420UCSBH1A module

Description

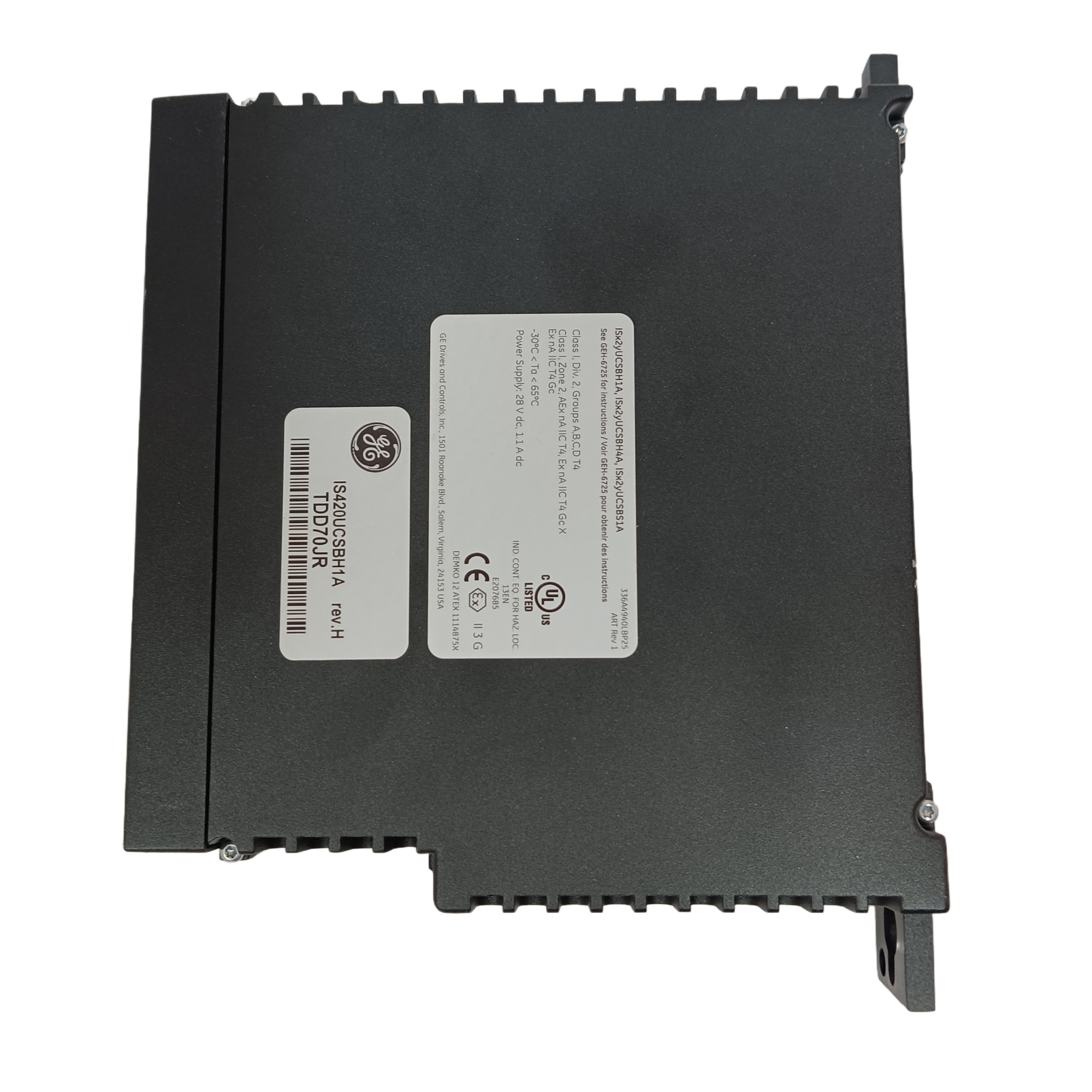

GE IS420UCSBH1A

the is a high-performance, high-reliability gas turbine control module designed for precise control and monitoring of gas-fired generator sets. The module has powerful data acquisition and processing capabilities, which can collect analog and digital signals of various sensors and monitoring equipment in real time, and perform filtering, amplification, digitization and calibration to ensure accurate and reliable data.

1. Basic information

Model:IS420UCSBH1A

Type: Module (part of Mark VIe series)

Brand: General Electric (GE)

Place of origin: USA

2.Technical Specifications

1,Processor: 600 MHz Intel EP80579 processor.
2,Memory: 256 MB DDR2 SDRAM (with ECC error correction code)
3,Storage: 2 GB NAND flash
4,Working voltage: 18-32 V DC (rated 24V/28V DC)
5,Maximum current: 1.5 ADC
6,Weight: 2.4
7,Dimensions: 6.4 “x8.1″x1.4 “(162.6 mm x 205.7 mm x 35.6 mm)
8,Operating temperature: -30’C to + 65 °C(-22 °F to 149 °F)

3.system characteristic

• .Operating system: QNX Neutrino real-time operation system

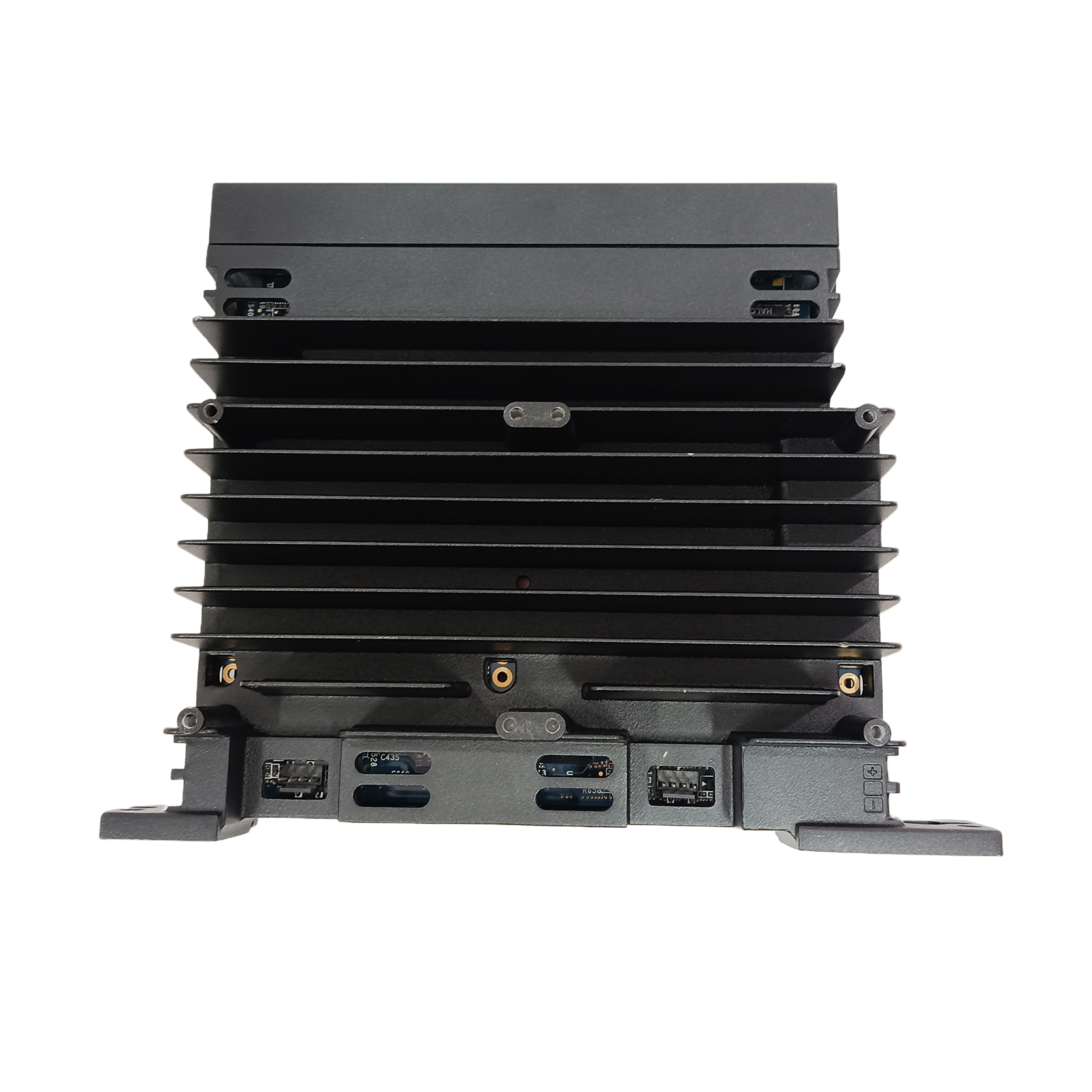

• .Design features: fanless design, air-cooled heat dissipation
• .Protection class: Meet EN 50155 standard, EN 50121-3-2 EMC test standard
• .Connectors: M12 durable connectors for communication and power interfaces

4.Application

.Work:-40 °C to + 70 °C (EN 50155 TX standard)

.Applicable industries: electric power, petrochemical, gas turbine control system

.Certification: Compliance with UL, ATEX, EMC and other international safety and electromagnetic compatibility standards

5.functional characteristic

.Real-time control: executes complex control logic (fuel control, ignition control, speed control, etc.)

.Data acquisition: processes analog and digital signals, supports signal filtering, amplification, digitization and calibration

.Fault diagnosis: real-time monitoring of system status, automatic detection and processing of potential faults

.Redundant support: Support controller redundant configuration (main/standby)

.Expansion capability: supports easy-to-plug HDD/SSD/CF modules, which is convenient for data storage and system expansion
