Description
GE PCI-5565PIORC-111000

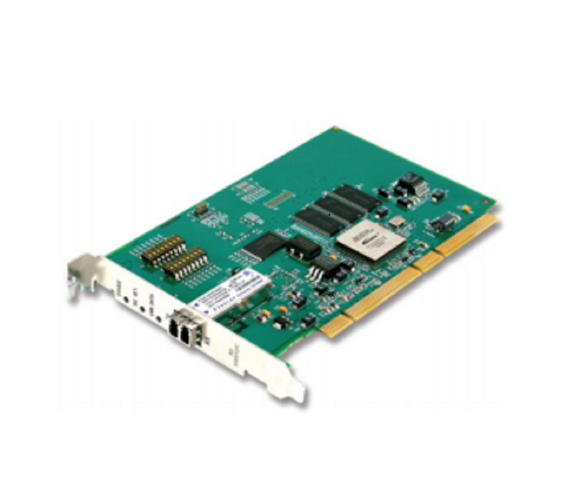

A PCI Reflective Memory card designed and manufactured by GE Intelligent Platforms (now part of Abaco Systems). Its core function is to create a deterministic, low-latency shared memory network, allowing multiple computing nodes to share the same data in microseconds.
Key Features and Specifications
| Feature | Description |
|---|---|
| Product Name | GE PCI-5565PIORC-111000 (Commonly abbreviated as PMC-5565PIORC) |
| Manufacturer | GE Intelligent Platforms (now Abaco Systems) |
| Product Type | Fiber-Optic Reflex Memory Card |

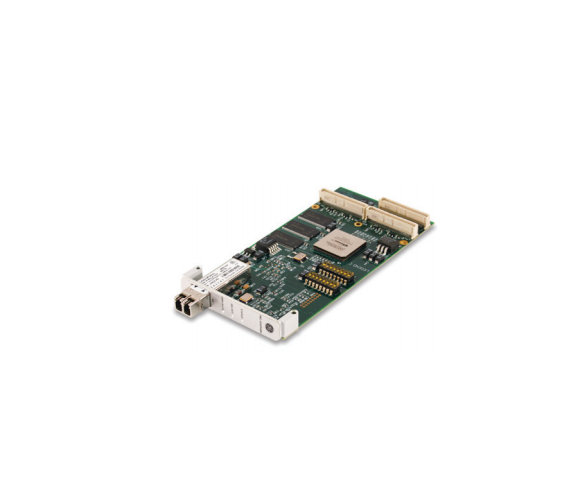

| Bus Interface | PCI Mezzanine Card, compliant with the PMC standard (It cannot be plugged directly into a PC; it requires a carrier board). |
| Network Interface | Multi-mode fiber optic, using ST connectors |
| Number of Fiber Channels | 2 (Dual redundant channels for enhanced reliability) |
| Data Transfer Rate | 2.125 Gbps (Fiber line rate) |
| Sustained Data Rate | Approximately 174 MB/s |
| Latency | Extremely low, typically in the nanosecond to microsecond range for node-to-node transmission. |
| Memory Capacity | 128 MB of local reflex memory |
| Number of Nodes | Theoretically supports up to 256 nodes on a single network |
| Distance | Up to 300 meters between nodes using multi-mode fiber (Up to 10 km with single-mode fiber modules) |
| Deterministic | Yes. Data propagation time is fixed and predictable, independent of network traffic. |
| Software Support | Drivers provided for various operating systems including Windows, Linux, and VxWorks. |
Primary Functions and Advantages
-
Determinism and Low Latency:
-
This is its most critical advantage. The time for data to transfer between nodes is fixed and predictable, making it ideal for real-time systems with strict timing requirements, such as flight simulators, radar signal processing, and industrial automation control.
-
-
Simplified Programming:
-
For applications, data sharing is as simple as reading from and writing to local memory. Developers do not need to deal with complex network programming (e.g., TCP/IP sockets), significantly reducing software complexity.
-
-
High Bandwidth and Performance:
-
The 2.125 Gbps bandwidth is sufficient to handle large volumes of real-time data, such as sensor data and image data.
-
-
Ruggedized Design:
-
This product is typically intended for military, aerospace, and harsh industrial environments, designed to withstand vibration, shock, and extended temperature ranges.
-
-
Redundancy and High Reliability:
-
The dual fiber ports support a redundant ring network topology. If one fiber link is broken, the network automatically reconfigures within nanoseconds to continue communication via the backup link, ensuring system uptime.
-
Typical Application Scenarios
This product is primarily used in fields with extreme demands for real-time performance and reliability:
-
Flight Simulators & Training Systems: Multiple image generators, motion platforms, and control systems need to synchronize and share flight data.
-
Radar & Sonar Systems: Multiple signal processing units need to share large amounts of sensor data in real-time.
-
Industrial Automation & Control: Multiple PLCs and controllers in a large factory need to operate in sync.
-
Test & Measurement Systems: Multiple data acquisition devices require high-speed synchronization with a central processing unit.
-
Military Command & Control Systems: Computers at different stations need to share a common tactical picture.
