Description

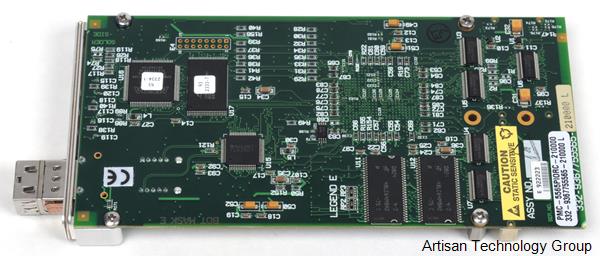

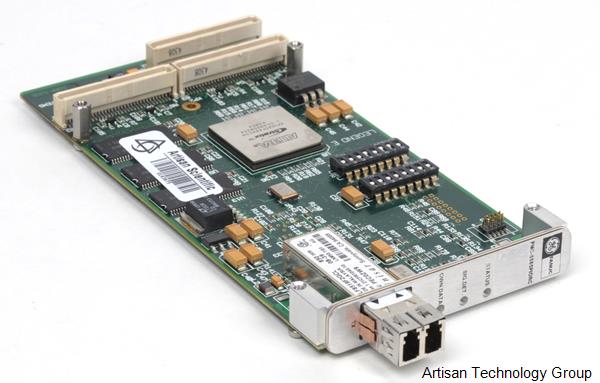

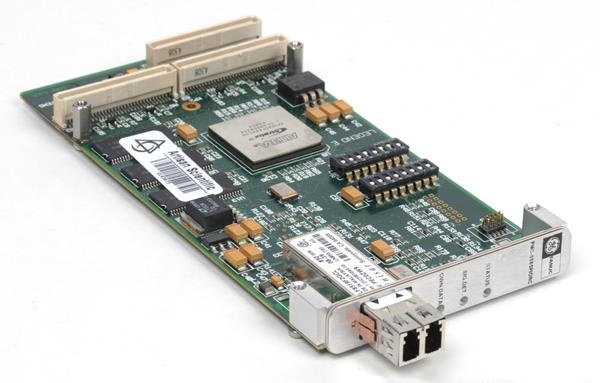

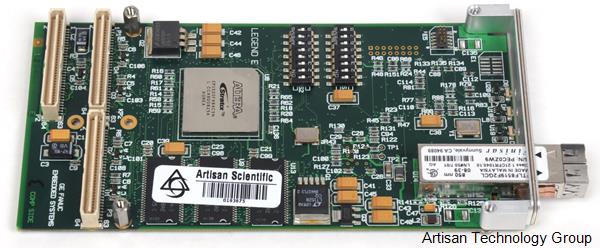

GE PCI-5565PIORC-210000 Reflective memory card
It is a reflective memory card, mainly used to achieve high-speed, low-latency data transmission
Basic Information
Brand: GE
Type: Reflective Memory Card
Memory Capacity: 256MB
Fiber Type: Multimode Fiber
Form Factor: Standard Half-Length PCI Card
Technical Specifications
Bus Compatibility: Compatible with 33MHz/66MHz, 64-BIT/32-BIT PCI buses, supporting 3.3V and 5.0V signal levels.
Fiber Optic Rate: 2.125G
Transmission Rate: Up to 174MB/S
Transmission Latency: 0.4μs
Topology: Supports ring and star topologies.
Node Quantity: Up to 256 nodes.
Transmission Distance: Up to 300 meters for multimode fiber.
DMA Channel: Equipped with an independent DMA channel.
Network Interrupt: Supports network interrupts with 32-bit data.
Endian Conversion: Enables endian conversion for different architectures within the same network.
PIO Window: Configurable PIO window sizes, including options like 2Mbytes, 16Mbytes, 64Mbytes, or set to the on-board memory size.
Operating Temperature: 0℃ ~ 65℃; Storage Temperature: -40℃ ~ 85℃.
OS Support: Compatible with Windows, Linux, VxWorks, RTX, DOS, LabVIEW RT, and other operating systems.
Functional Features
Reflective Memory Technology: Enables memory-to-memory communication between interconnected computers via a local area network. When data is written to the reflective memory card of one machine, it is automatically transmitted to other networked reflective memory cards via fiber optics. This process requires no software overhead and only incurs a latency of several hundred nanoseconds.
Anti-Interference & Real-Time Performance: Features strong anti-interference capability and high real-time performance. It supports interrupt transmission, requires minimal software development code, and offers excellent expandability. This frees software developers from complex communication protocols.
Application Fields
This product is widely used in flight simulators, automated test systems, ship and submarine simulators, control and monitoring of aluminum rolling mills, power plant simulators, engine test benches, industrial automation, high-speed data acquisition, and other fields. It is particularly prevalent in hardware-in-the-loop (HIL) real-time simulation systems.
