Description

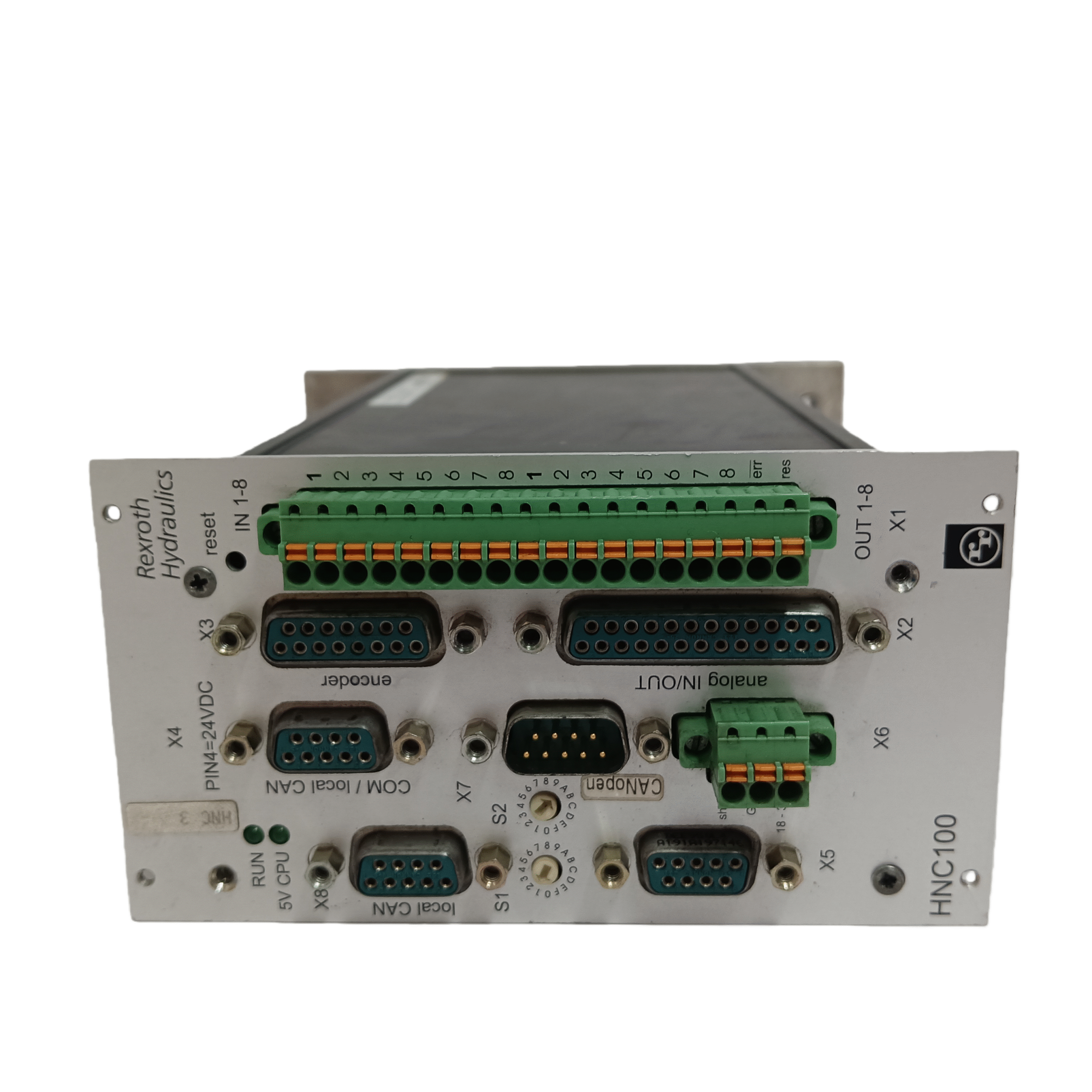

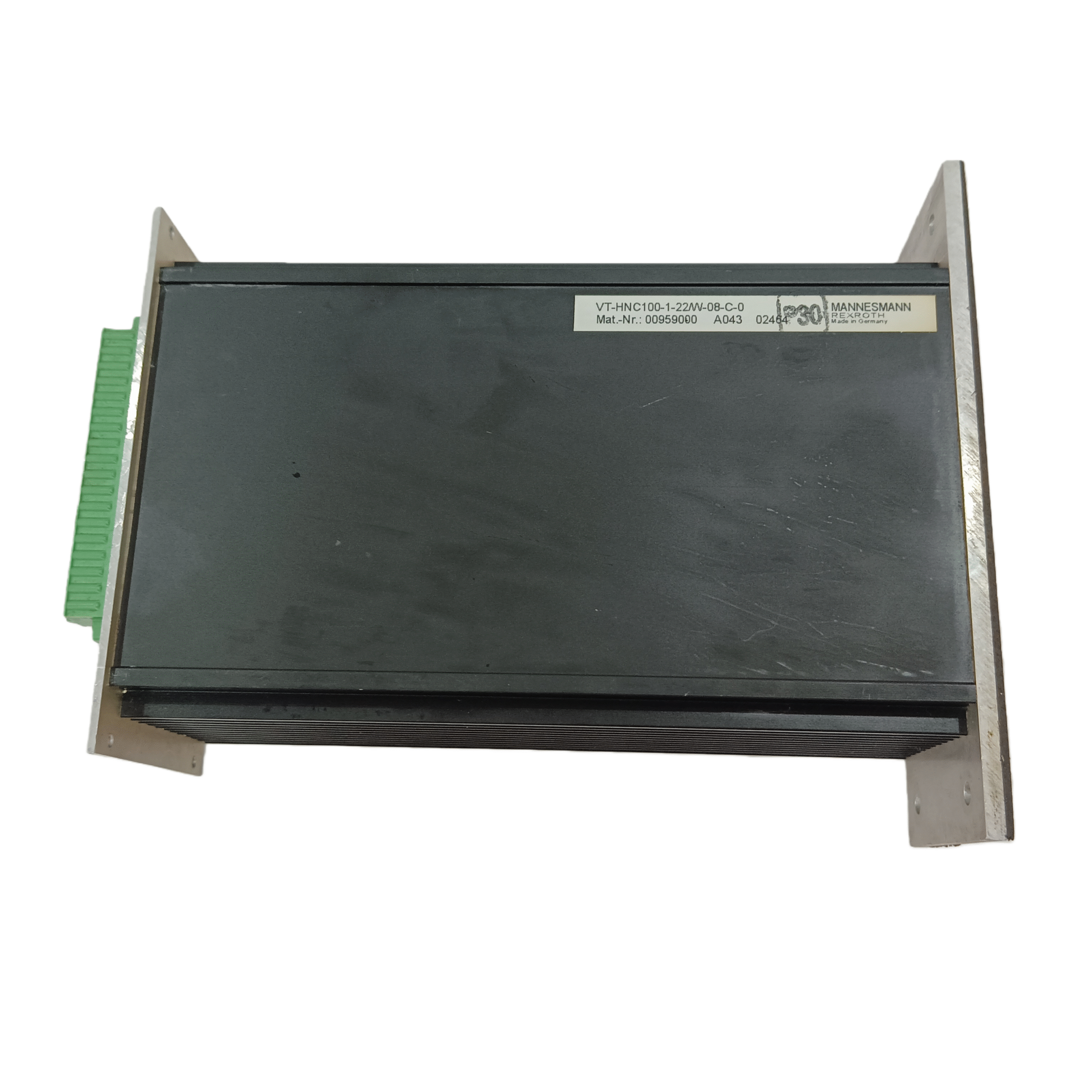

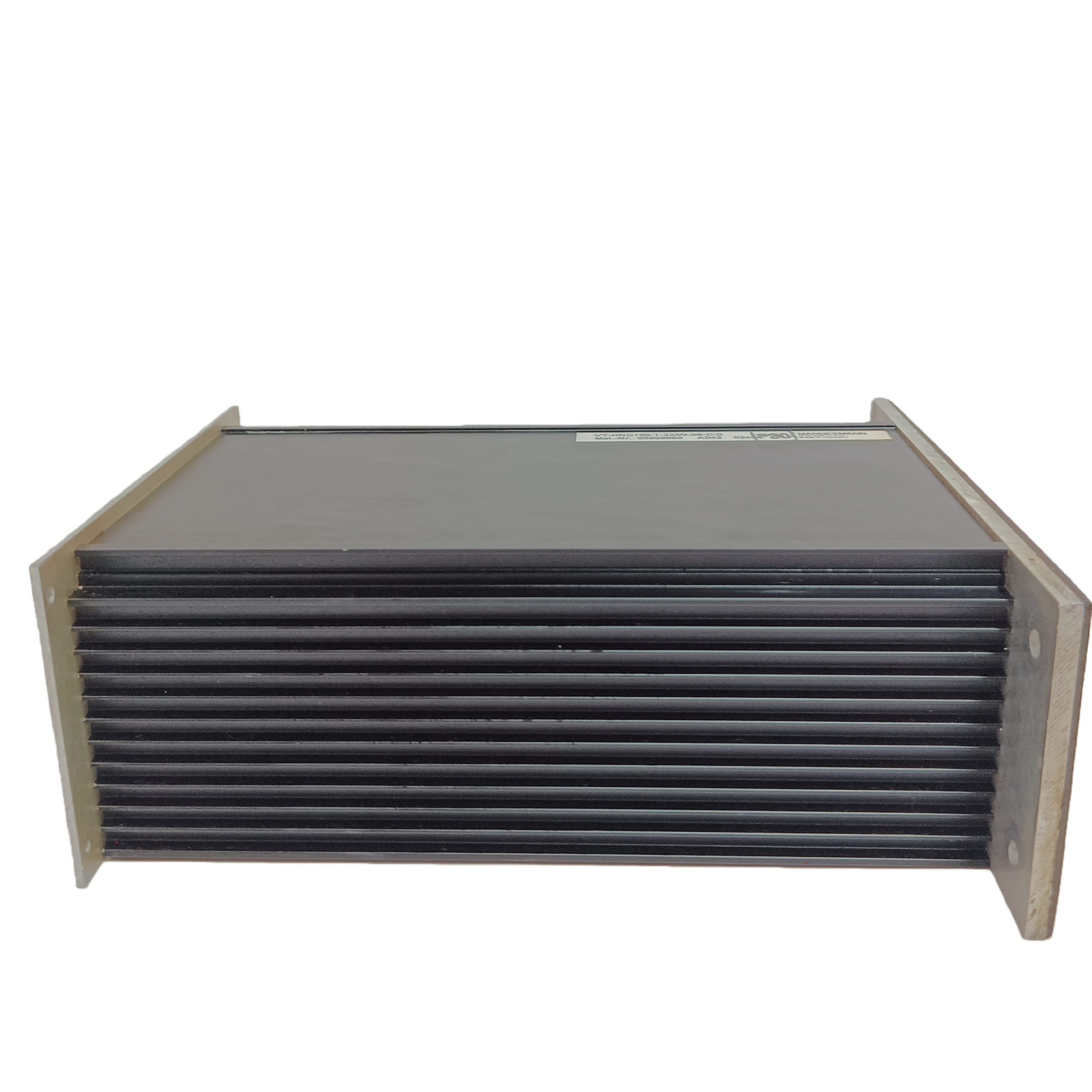

 REXROTH VT-HNC100-1-22W-08-C-0

This is a high-performance, compact hydraulic servo drive from the Rexroth HNC series. It is primarily used to build a complete, digital electro-hydraulic motion control solution.

Detailed Product Description

1. Core Function & Positioning

• All-in-One Design: It integrates a motion controller (with PLC functionality), an amplifier (drive circuitry), and a power supply into a single compact unit. This eliminates the need for a traditional separate PLC and a standalone servo amplifier, simplifying system architecture, and reducing wiring and installation space.

• Dedicated to Hydraulics: Its hardware and software functions are specifically optimized for hydraulic applications. It features built-in control algorithms for hydraulic system non-linearities and characteristics (e.g., pressure compensation, viscous friction compensation).

• High Performance: Supports highly dynamic motion control, enabling precise positioning, synchronization, and pressure/force control.

2. Model Code Interpretation

Following Rexroth’s naming convention, we can decode the various parts of this model number:

• VT-HNC100: Product series and base model. HNC stands for “Hydraulic Motion Controller,” and 100 indicates its performance class and form factor.

• -1: Typically represents the input voltage or power supply type. Here, “-1” likely indicates a single-phase AC supply (e.g., 200-240V AC).

• -22W: Represents the output current/power rating. 22W means its maximum output current is approximately 22A (peak), which determines the size of the servo valve it can drive.

• -08: Represents built-in function options or software version. For example, it could refer to a specific control function package or firmware version.

• -C: Indicates the device’s technical version or hardware revision.

• -0: Usually denotes the standard version or the absence of special options.

Note: The most accurate decoding requires consulting the official “Ordering Code” manual, as the meaning of some fields may change with product updates.

3. Key Features & Benefits

• Saves Space & Cost: The all-in-one design reduces the number of components, cabinet space, and wiring costs.

• Simplifies Commissioning: Configured, parameterized, and diagnosed using Rexroth’s IndraWorks engineering software. All settings are completed within a single software environment, making the process very convenient.

• Powerful Control Performance:

  • Supports multiple motion control modes: position control, speed control, pressure/force control, torque control.

  • Features built-in high-performance control loops (position, speed, pressure).

  • Supports synchronization functions like electronic gearing and electronic camming.

• Comprehensive Interfaces:

  • EtherCAT: The primary communication interface for high-speed, real-time communication with a superior PLC (e.g., Rexroth’s ctrl-X PLC) or other EtherCAT masters.

  • Digital Inputs/Outputs (DIO): Used for connecting limit switches, enable signals, alarm indicators, etc.

  • Analog Inputs/Outputs: Can be used to connect additional analog sensors (e.g., pressure sensors, displacement transducers) or as setpoint inputs.

  • Encoder Interface: Supports connection to various feedback sensors (e.g., incremental encoders, SSI absolute encoders) for detecting the actuator’s actual position.

• High Reliability: Includes comprehensive fault diagnosis and protection functions, such as overcurrent, overtemperature, short circuit, and feedback loss monitoring.

4. Typical Applications

This drive is suitable for all industrial fields requiring high-precision, high-dynamic hydraulic motion control, such as:

• Injection Molding Machines: Controlling injection, plastication, and clamping movements.

• Presses: Metal forming presses, stamping presses for precise pressure and position control.

• Test Benches: Material testing, fatigue test stands for implementing complex force and displacement profiles.

• Construction Machinery: Simulator controls, robotic work attachments.

• Metallurgical Equipment: Continuous casters, rolling mills, etc.
