Description
Display Type:TFT LCD
Display Resolution:480 x 272 pixels
Backlight Type:LED
Display Size:4.3 inches
Power Input:24±20% VDC
Power Consumption:400mA @ 24VDC
Front Panel Compliance:NEMA4/IP65
RS-485 Support:COM1 & COM3
MPI Speed:187.5Kbps (use one at a time)
PCB Coating Process:Ensures high reliability
Weight:0.25 kg
Dimension (WxHxD):128 x 102 x 32 mm

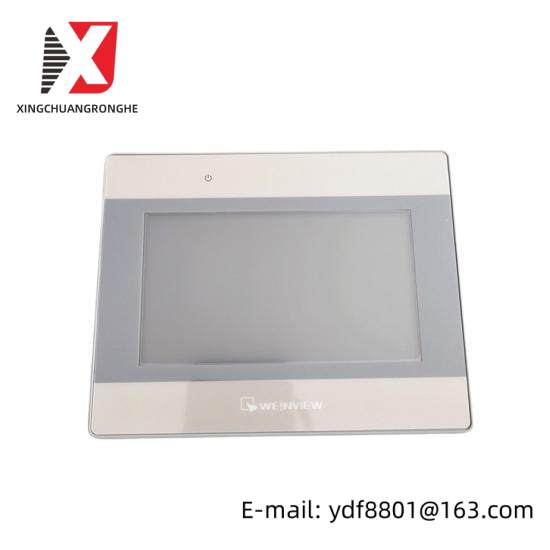

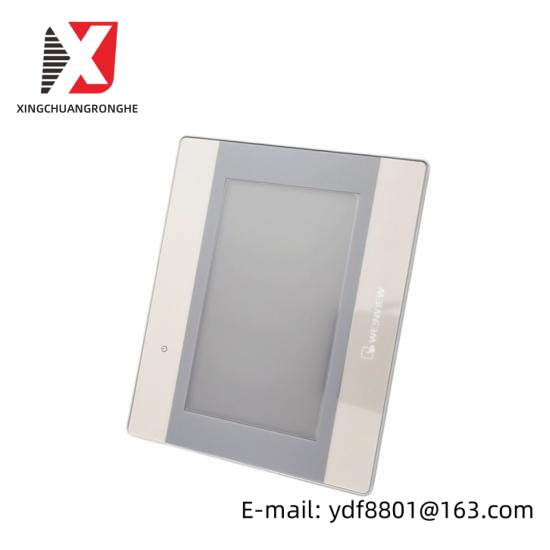

Introducing the Weintek HMI MT8050iE, an innovative industrial touchscreen designed for seamless integration into demanding manufacturing settings. This compact device offers a robust solution for control applications, featuring a slim design and fan-less cooling system to ensure durability and reliability under challenging conditions.
With its 4.3-inch TFT LCD display equipped with LED backlight, the MT8050iE delivers clear visuals in any lighting environment. Its 480 x 272 pixel resolution ensures crisp text and graphics, enhancing user experience and operational efficiency.
The device is built with a 32-bit RISC processor for smooth performance and supports MPI communication at 187.5Kbps. With COM1 and COM3 RS-485 ports, it offers versatile connectivity options, allowing for easy setup and integration with existing systems.
To withstand harsh industrial environments, the MT8050iE undergoes a PCB coating process that enhances its resistance to corrosion. It is rated NEMA4/IP65, ensuring protection against dust, water splashes, and other contaminants commonly found in factory floors.
The Weintek HMI MT8050iE weighs just 0.25 kg, making it lightweight yet sturdy enough to handle the rigors of industrial use. Its dimensions of 128 x 102 x 32 mm allow for easy installation in tight spaces, and it operates within a wide temperature range of -10°C to +50°C, ensuring reliable performance year-round.
