Description

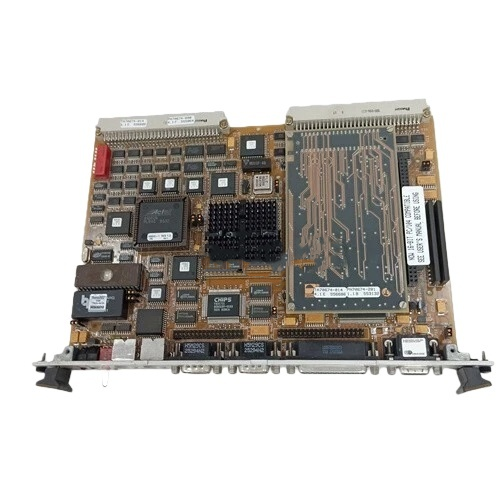

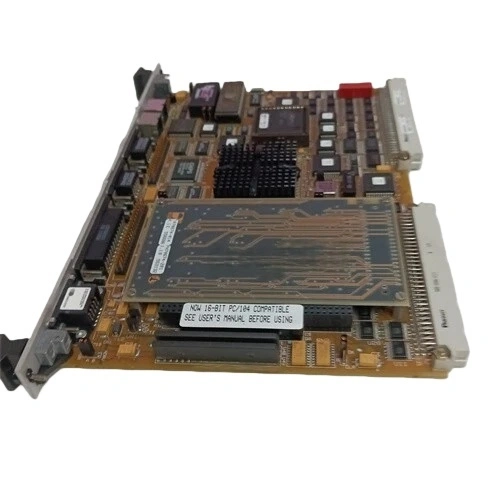

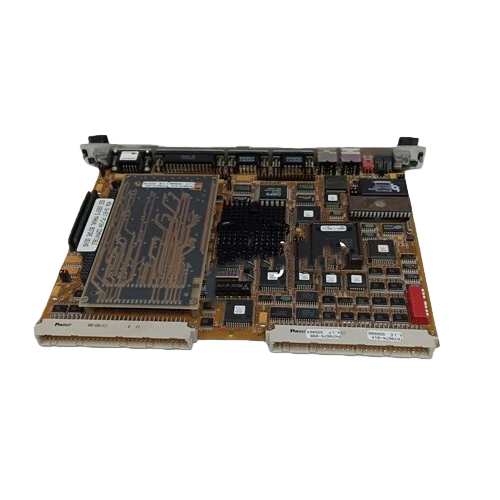

XYCOM XVME-674

It is a rugged and powerful VME bus module, mainly used as the I/O expansion core of the system, providing multi-channel serial communication and digital I/O capabilities.



Main Functions and Type

• Primary Function: I/O Expansion. The module primarily serves as a key I/O subsystem within a VME architecture, providing serial communication and/or digital input/output capabilities.
• Serial Communication Interface: Supports multiple channels (up to 8 or 16) of RS-232, RS-422, or RS-485 serial communication, suitable for applications requiring high-density communication.
• Digital I/O Functionality: Certain configurations offer 32 or 64 programmable digital input/output channels for direct control and monitoring of field devices.
• (Potential) CPU Functionality: Multiple commercial sources refer to it as a “CPU BOARD,” suggesting it may integrate a processing unit, enabling not only I/O operations but also some level of control and data processing.

Key Technical Specifications

• Bus Standard: VMEbus (6U format, compliant with ANSI/VITA 1-1994 standard)
• Communication Interfaces: RS-232, RS-422, RS-485 (specific configuration may vary by model)
• Power Supply: Powered by +5V DC from the VME backplane.
• Operating Environment:
  • Operating Temperature: -40°C to +85°C (industrial-grade wide temperature range)
  • EMC/Environment: Meets CE and FCC standards; some versions feature MIL-STD-810 shock and vibration certification, suitable for harsh industrial environments.
• Isolation Protection: Opto-isolation (500V–1500V) between channels and system power/ground, effectively preventing electromagnetic interference and ground loops, enhancing system stability.
• Physical Dimensions: 6U VME card, 233mm × 160mm.

Main Features

1. Modular and Flexible: Configurable via jumpers or software for serial port parameters and I/O functions.
2. High Reliability: Designed for continuous operation and critical equipment control, capable of stable performance under extreme temperatures and vibration.
3. Industrial-Grade Isolation: Individually isolated channels ensure safety and stability in complex electromagnetic environments.
4. Strong Compatibility: Compatible with other Xycom and Emerson embedded CPU modules and controllers, easily integrated into existing VME systems.
5. Multi-Channel Concurrency: Supports simultaneous operation of multiple serial interfaces, meeting high-density communication demands.
