ZYGO 8020-0102-02SPM8020-9274-02PCB

Description

ZYGO 8020-0102-02SPM8020-9274-02PCB

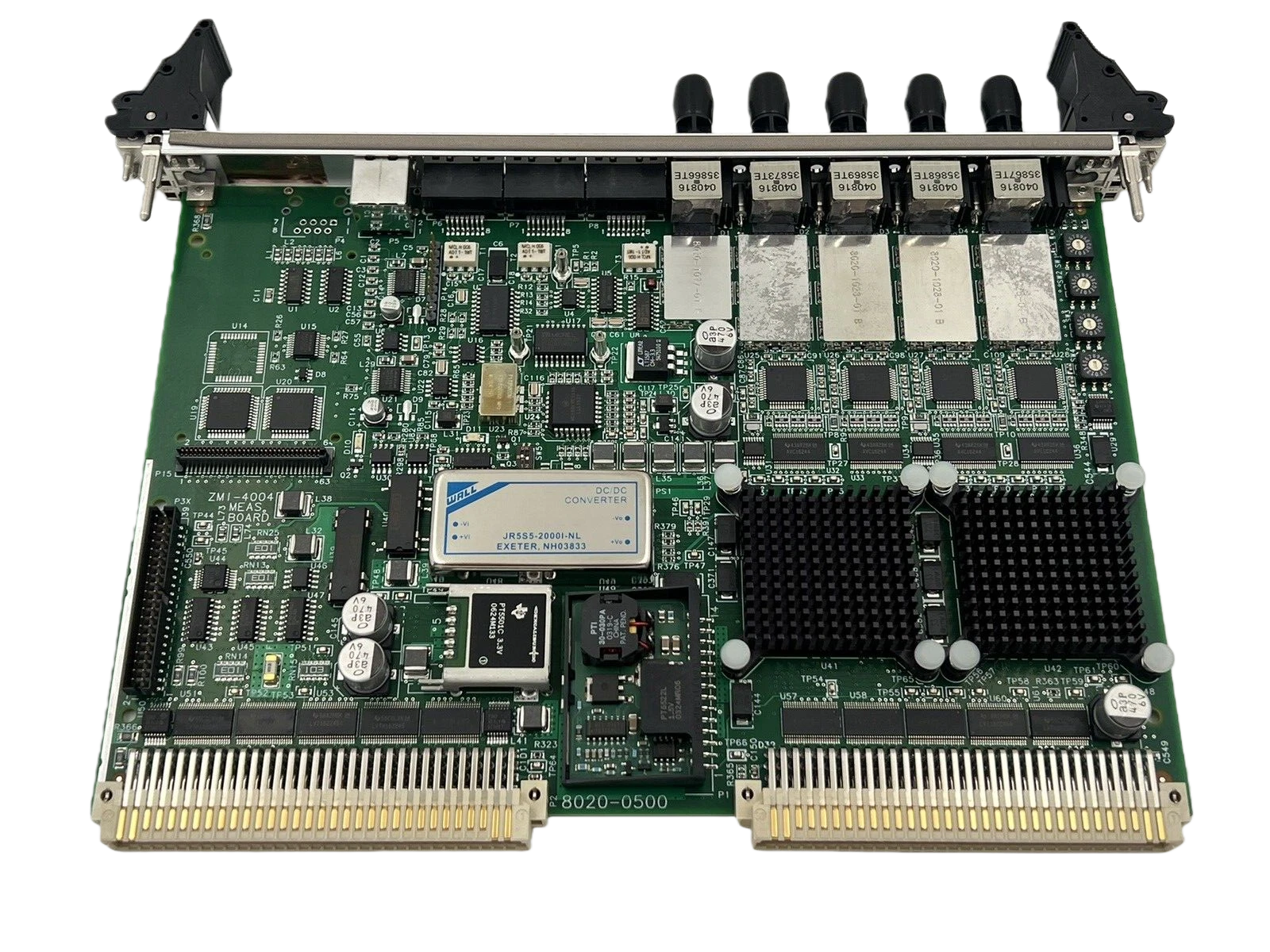

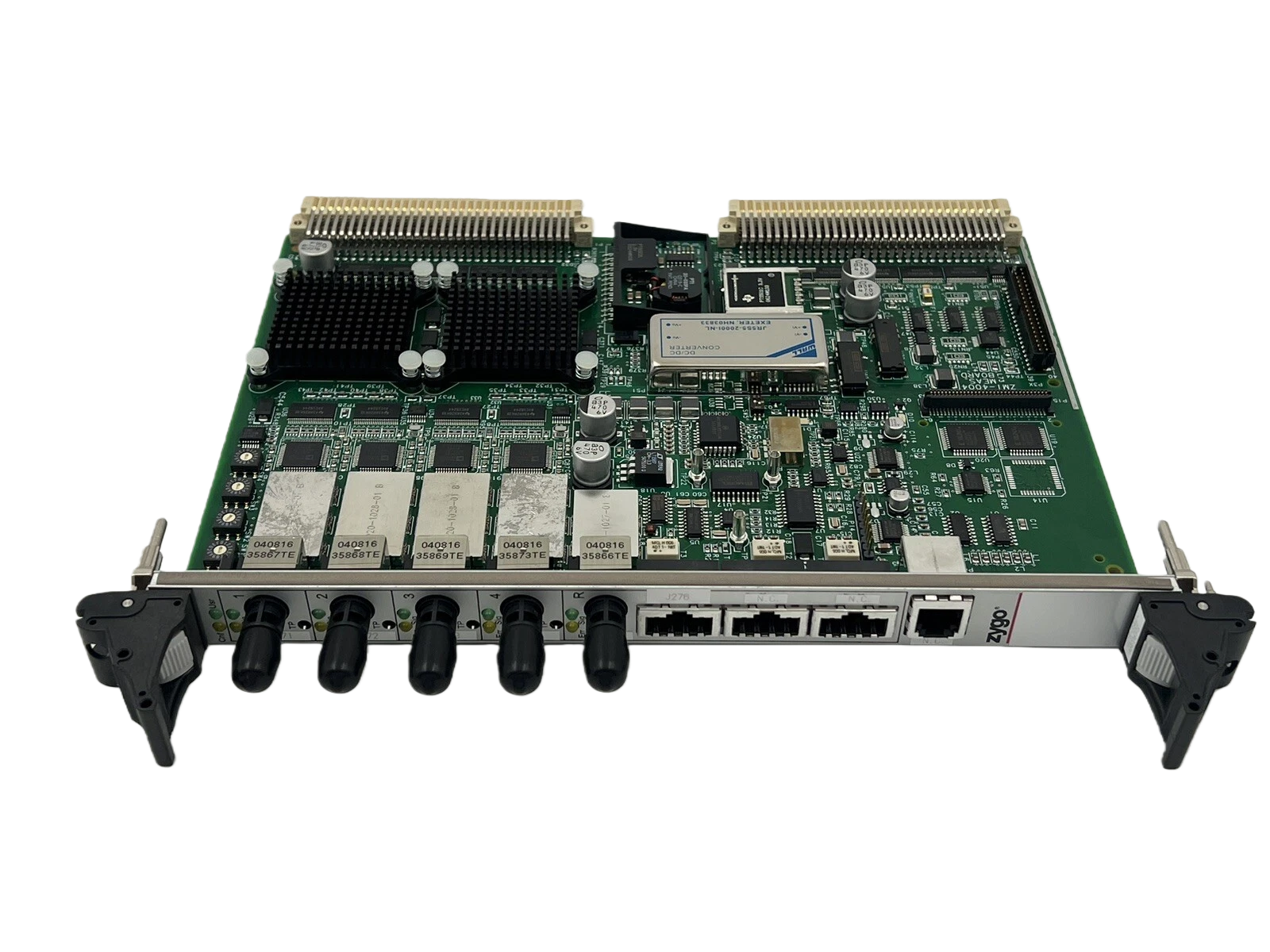

ZYGO 8020‑0102‑02 SPM

• This model belongs to the Zygo 8020 series PCB card used in Scanning Probe Microscopy (SPM) systems for signal acquisition and control.
• Like other 8020 series cards, it adopts a VME64x (or compatible) slot, featuring a high‑speed data bus (e.g., EtherCAT, SSI) and multiple analog/digital I/O interfaces, providing real‑time data in nanometer‑level displacement measurements.
• Typical specifications (referencing similar 8020‑0700‑01 PCB cards) include:
  • Dimensions: approximately 229 mm × 114 mm × 29 mm (same size as the ZMI‑2002 measurement board)
  • Operating temperature: 0 °C ~ +40 °C, protection rating IP54
  • Resolution: < 1 nm, measurement accuracy ± 0.1 µm
  • Interfaces: VME64x, USB, EtherCAT, RS‑232/RS‑485, etc., allowing direct connection to Zygo interferometers or control software.

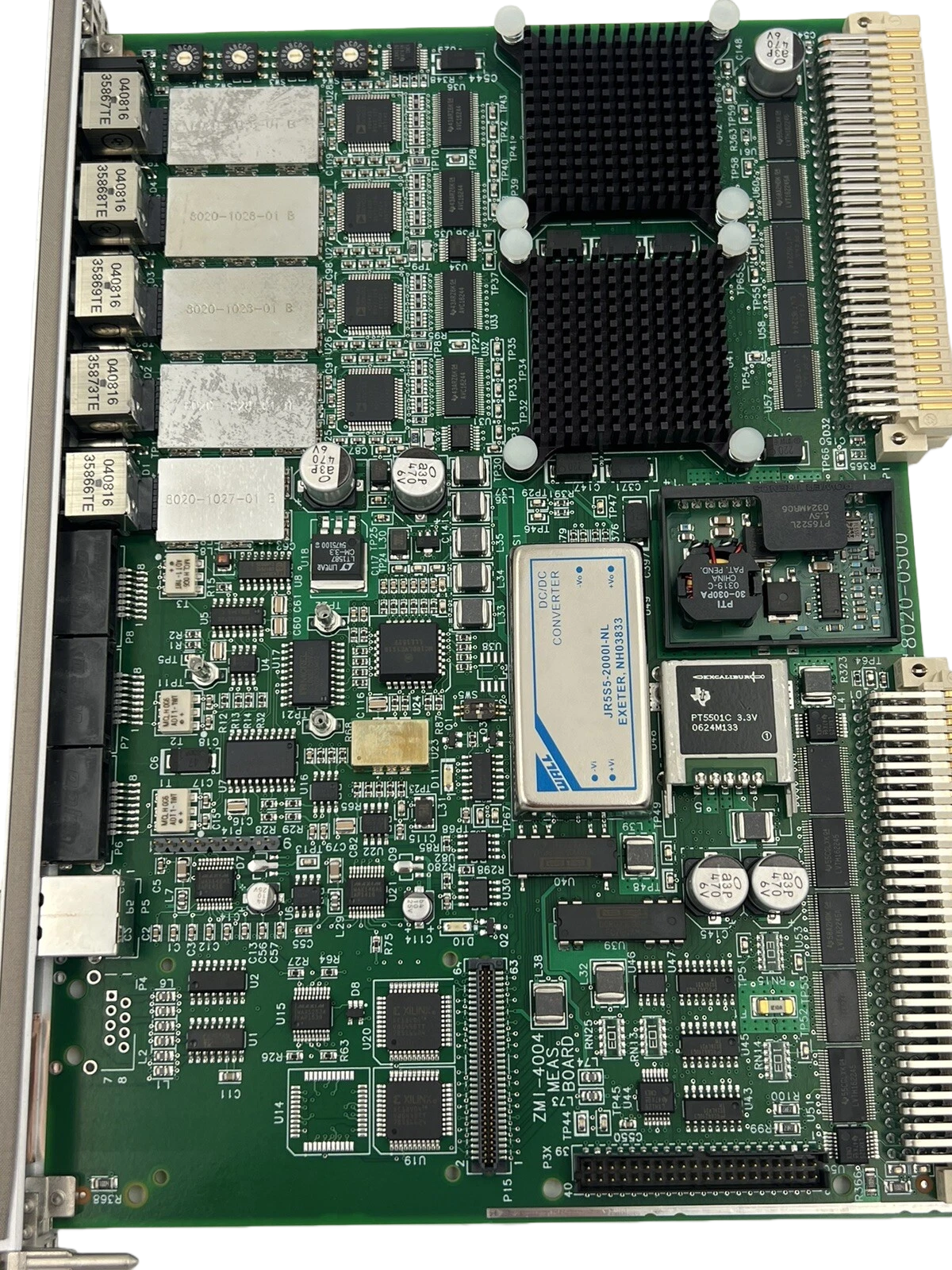

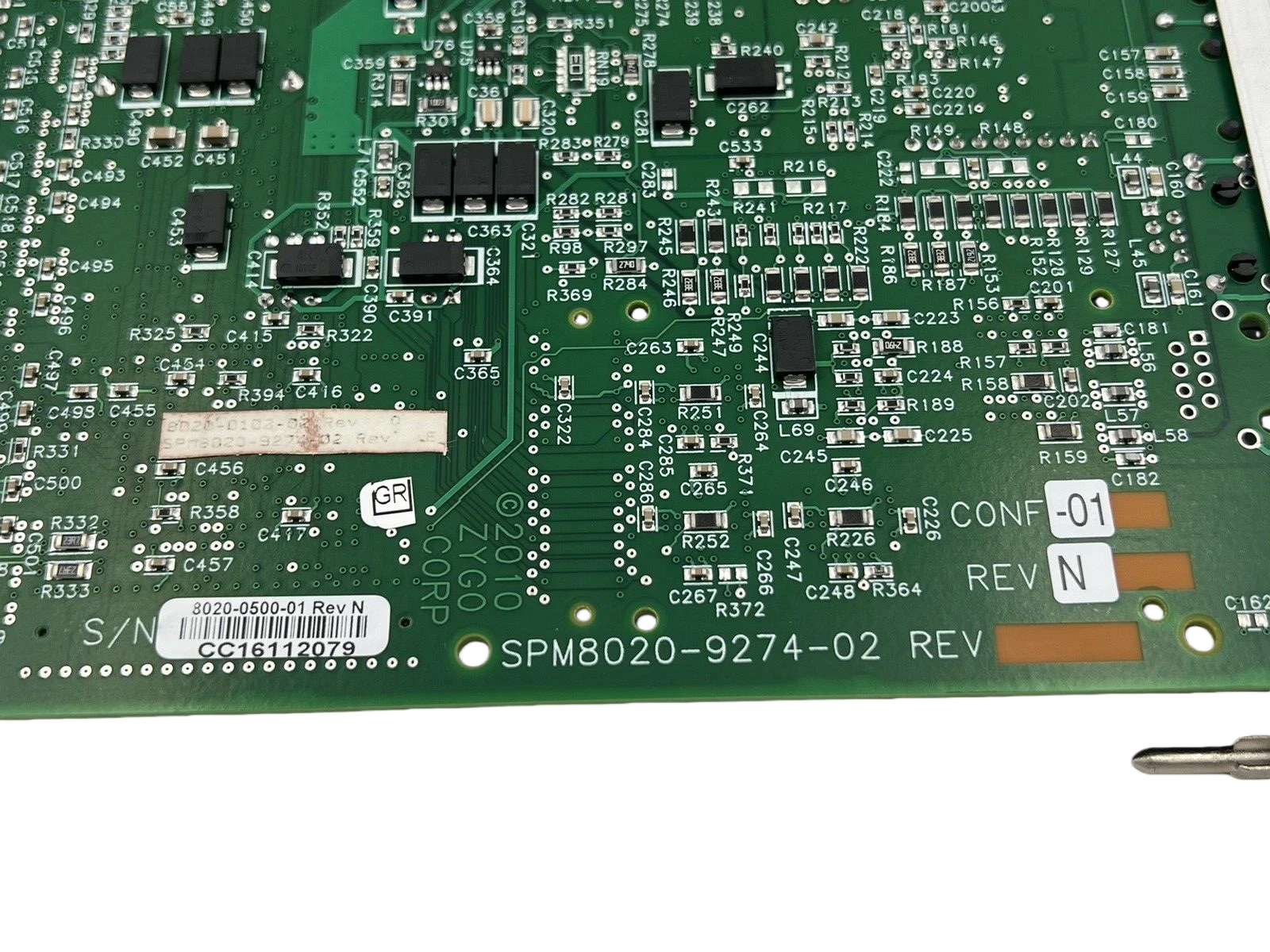

ZYGO 8020‑9274‑02 PCB

• Also part of the Zygo 8020 series printed circuit board (PCB), intended for the electronic signal processing and power distribution of high‑precision measurement boards (such as ZMI‑4004, ZMI‑4104).
• This PCB uses a 4‑axis VME64x specification, supporting up to 2.55 m/s displacement speed and 0.1 ns data latency, suitable for high‑end industrial applications like semiconductor lithography and optical component positioning.
• Key features (similar to the ZMI‑4004) include:
  • High resolution: 0.15 nm (capable of 0.1 nm)
  • High update rate: supports multi‑channel synchronized sampling, meeting 4‑axis synchronous measurement requirements
  • Durability: complies with industrial‑grade electromagnetic compatibility (EMC) and vibration isolation standards, making it appropriate for clean‑room environments.
