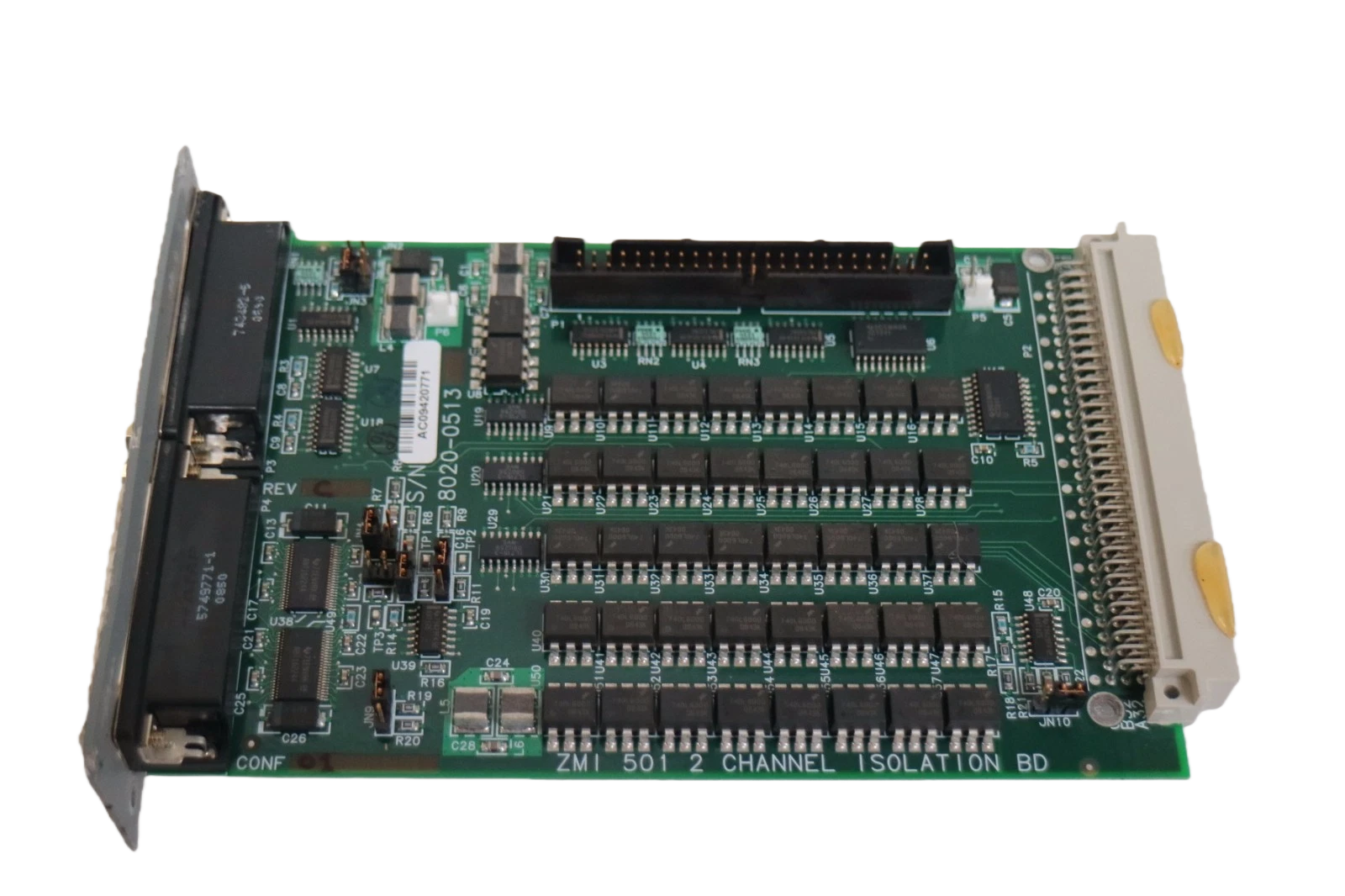

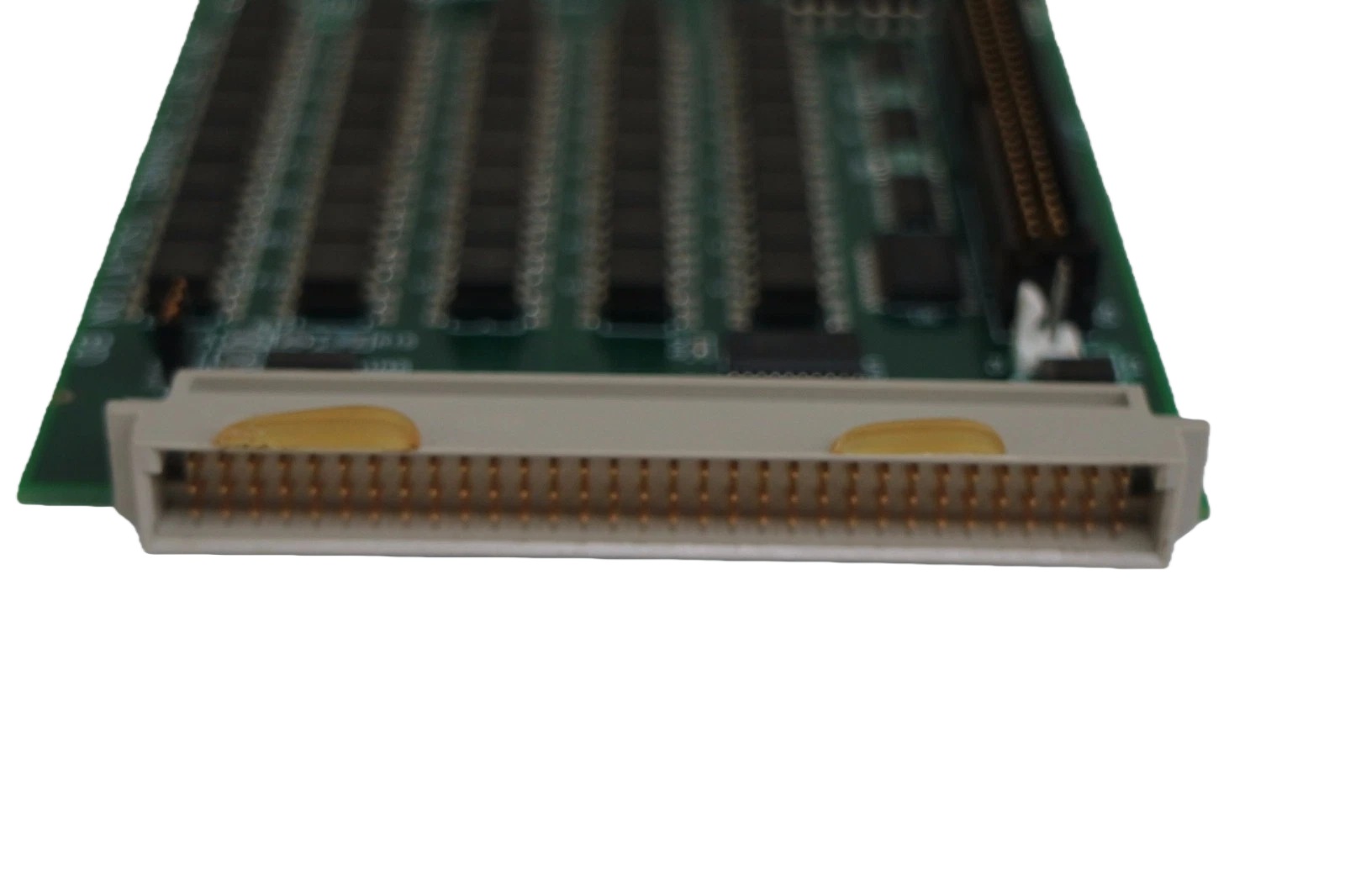

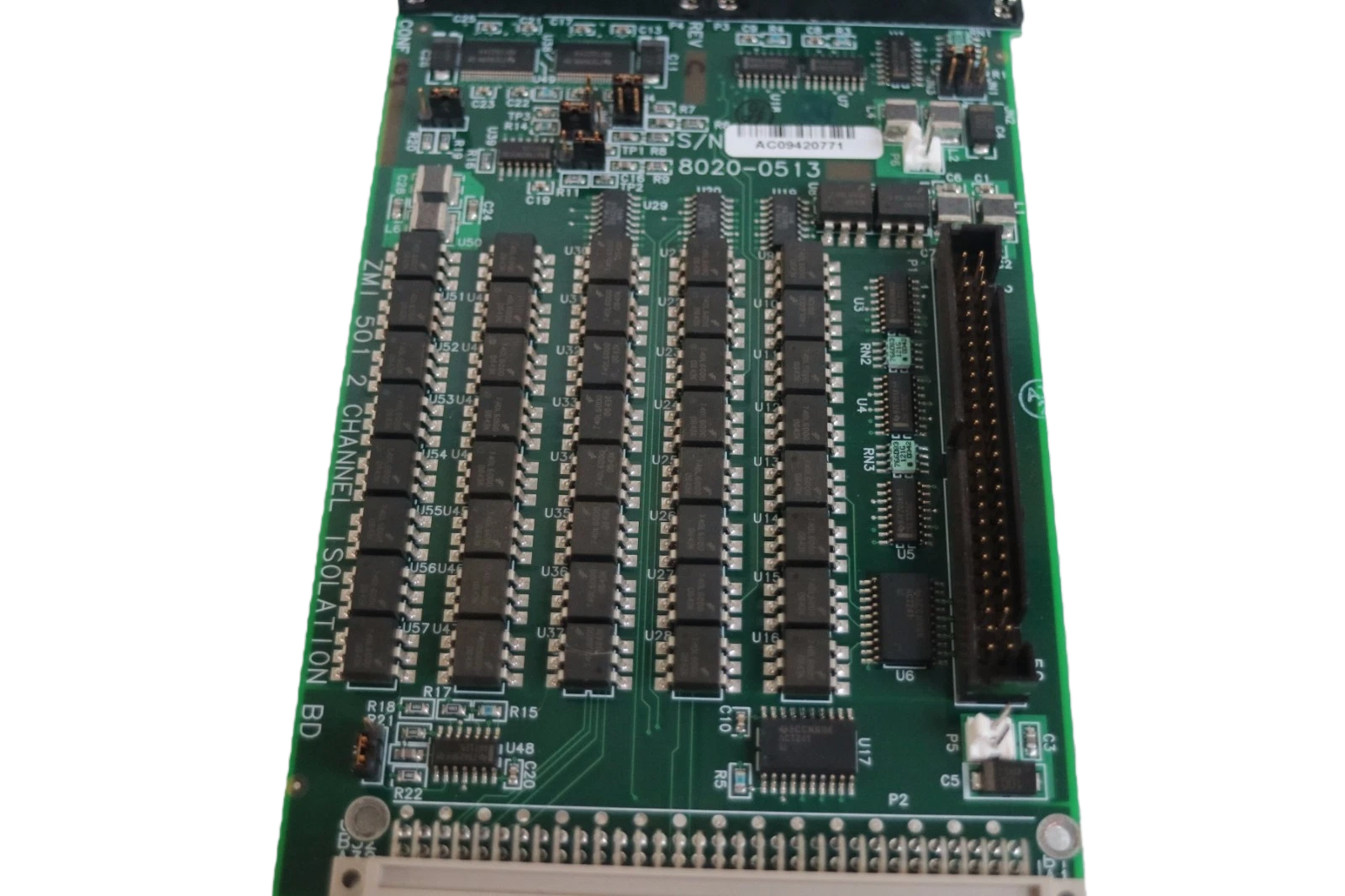

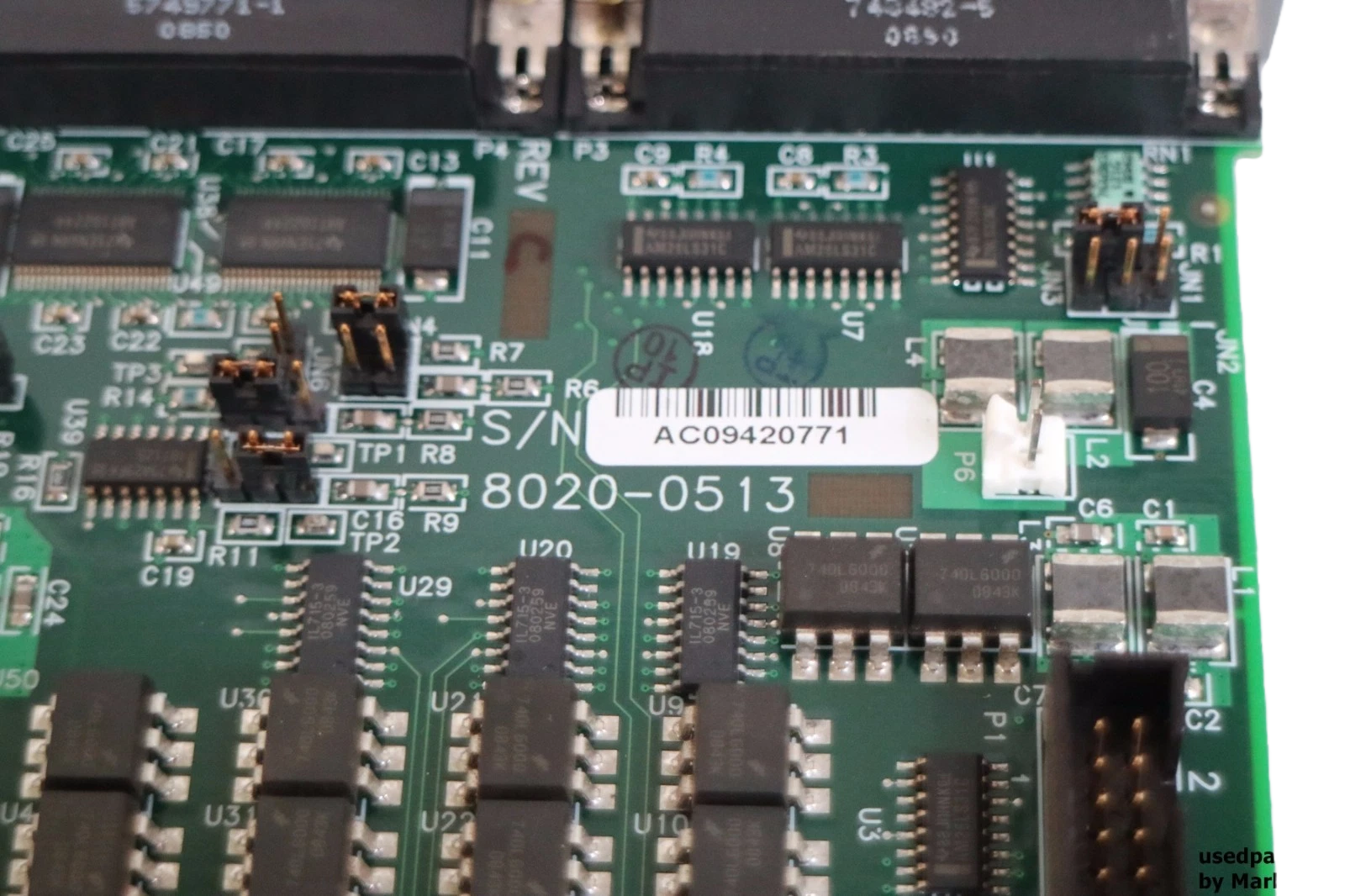

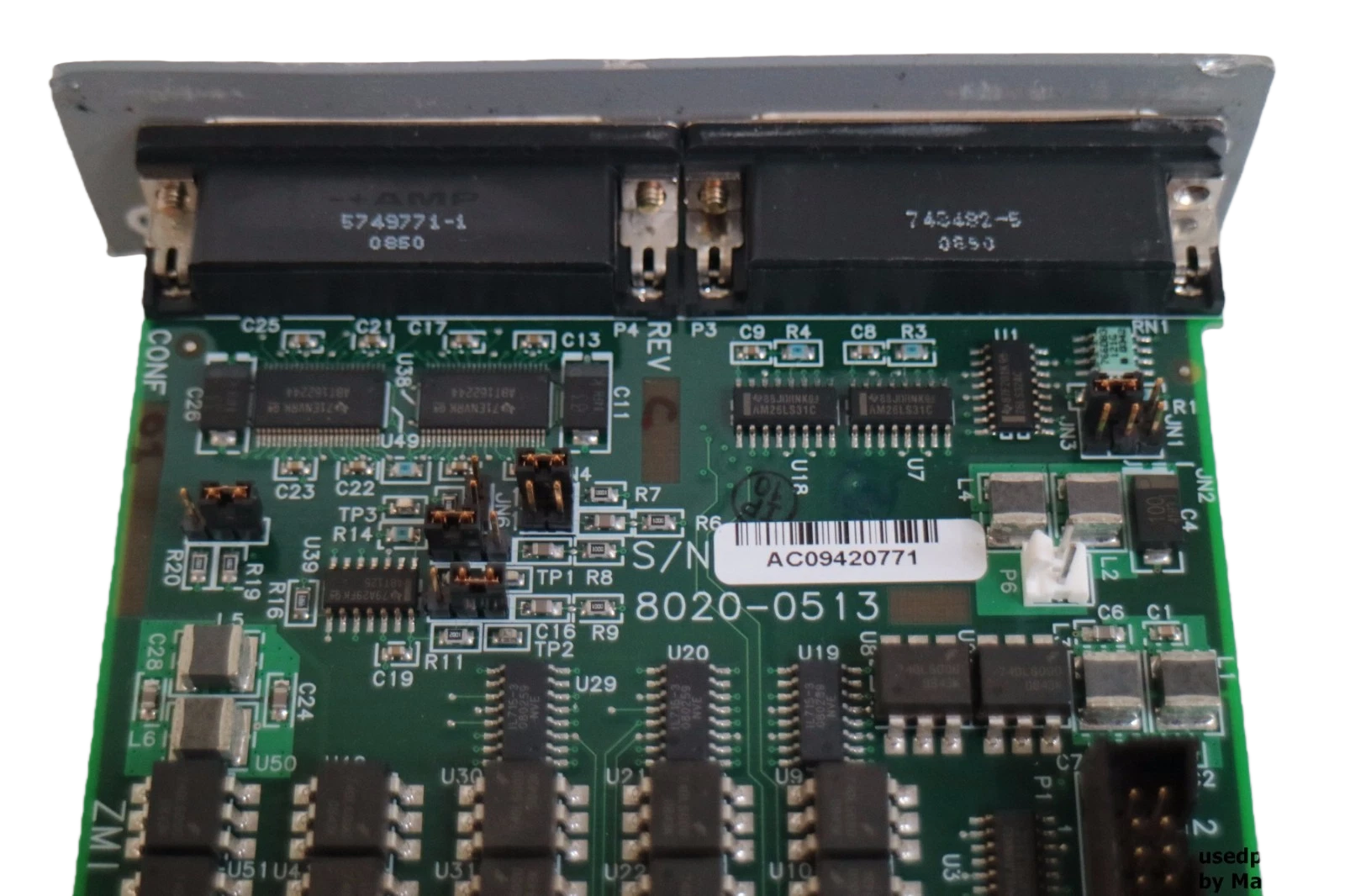

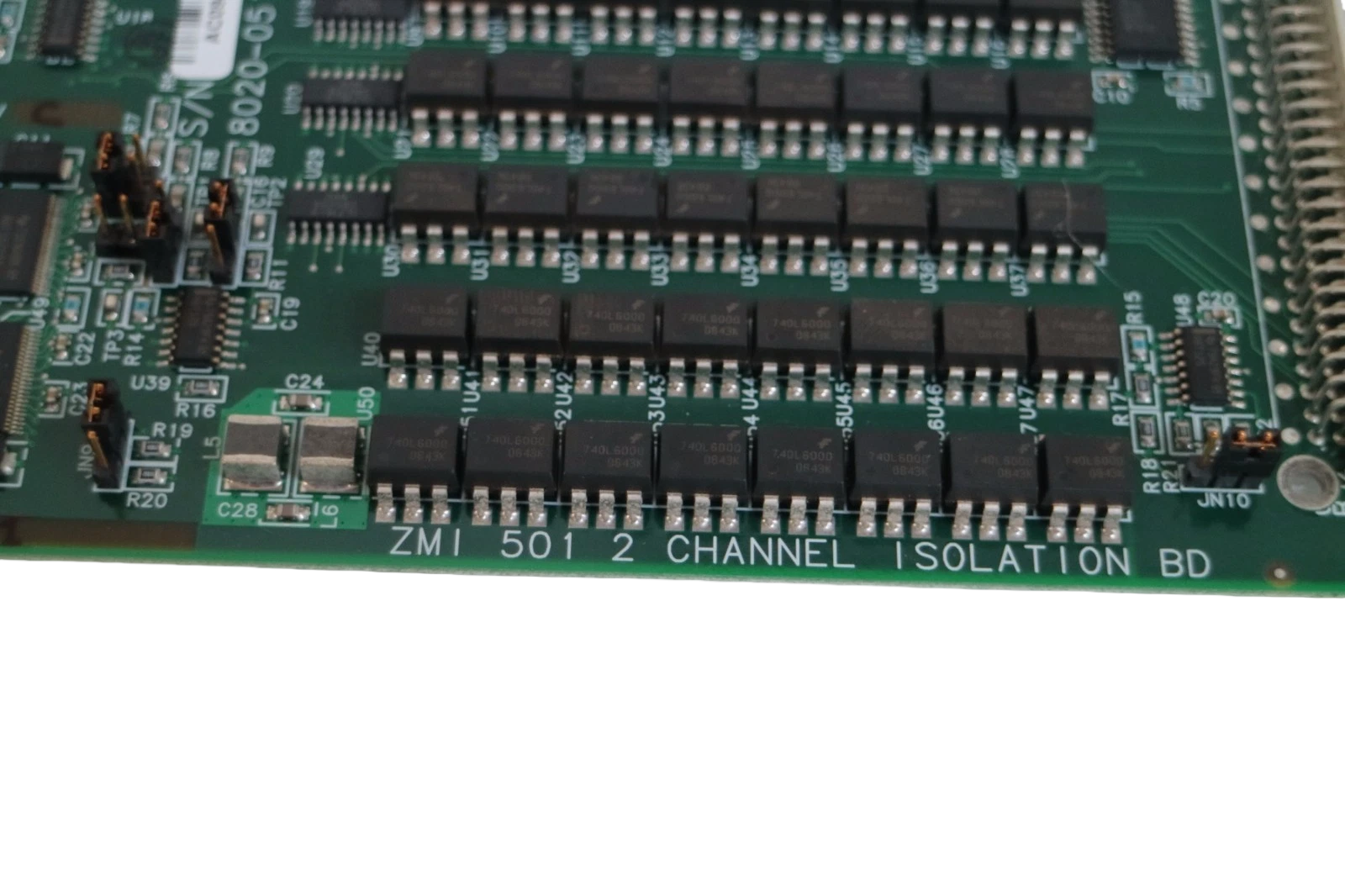

ZYGO 8020-1513-01 Rev.C 2 ZMI 501 Channel isolation panel

Description

ZYGO 8020-1513-01 Rev.C 2 ZMI 501

It is a 2-channel electrical isolation board designed specifically for the ZMI501 measurement system, providing a 5.2VDC power supply, weighing approximately 1kg, with a 5in cable clearance, and enabling modular installation within the ZMI501A housing to ensure signal integrity for high-precision interferometric measurements.



• Model/Part Number: 8020‑1513‑01 Rev.C (commonly referred to as the ZMI 501 Isolation Board)
• System: Part of the ZYGO ZMI 501 measurement system (a 2‑channel measurement chassis), providing electrical isolation between the measurement channels and the control/signal‑processing units.
• Key Functions
  • Provides electrical isolation for two measurement channels (prevents ground loops and noise coupling), ensuring reliable high‑precision displacement measurements.
  • Routes the optical‑fiber signals from the measurement board (8020‑0450 Rev.C Measurement Board) through isolation to the controller or PC.
  • Designed for modular installation within the standard ZMI 501 enclosure (8020‑0237‑05).
• Technical Specifications (based on ZMI 501A enclosure data)
  • Channels: 2 (corresponding to two measurement signal paths)
  • Dimensions/Form Factor: Fits inside the ZMI 501A enclosure; exact dimensions are shown in the enclosure drawings (not listed in the text).
  • Weight: Approximately 2 lb (≈ 1 kg)
  • Cable Routing Clearance: 5 in (≈ 127 mm) with routing options at both ends
  • Power Requirements: 5.2 V DC, tolerance ±0.4 V, maximum current 3.3 A
  • Operating Temperature: Minimum 0 °C (maximum not specified in the excerpt)
• Compatibility
  • Works together with the ZYGO 8020‑0450 Rev.C Measurement Board to form a complete ZMI 501 measurement unit.
  • Suitable for ZYGO ZMI series interferometers (e.g., 7705, 7702, 7714, 7724) that require dual‑axis or multi‑axis measurement capabilities.
• Typical Applications
  • High‑precision displacement, vibration, and attitude measurement systems (such as semiconductor wafer inspection, optical component positioning, precision machine‑tool calibration).
  • Laboratory or industrial environments where preventing back‑reflected light or ground‑loop interference is critical.
• Notes
  • Public documentation does not specify the exact isolation voltage rating (e.g., 5 kV, 10 kV). For detailed isolation specifications, contact Zygo technical support or consult the full product manual.
