Description

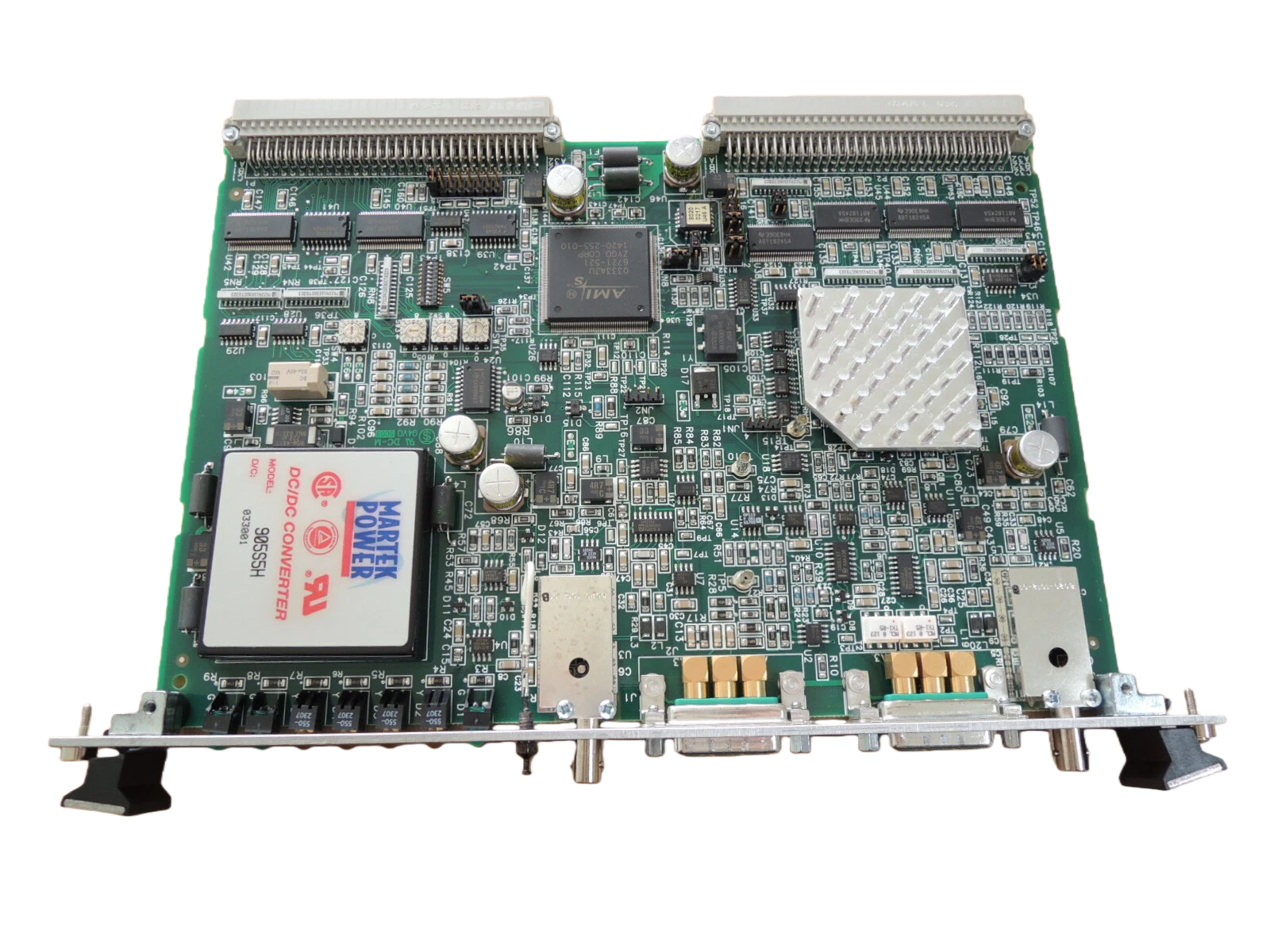

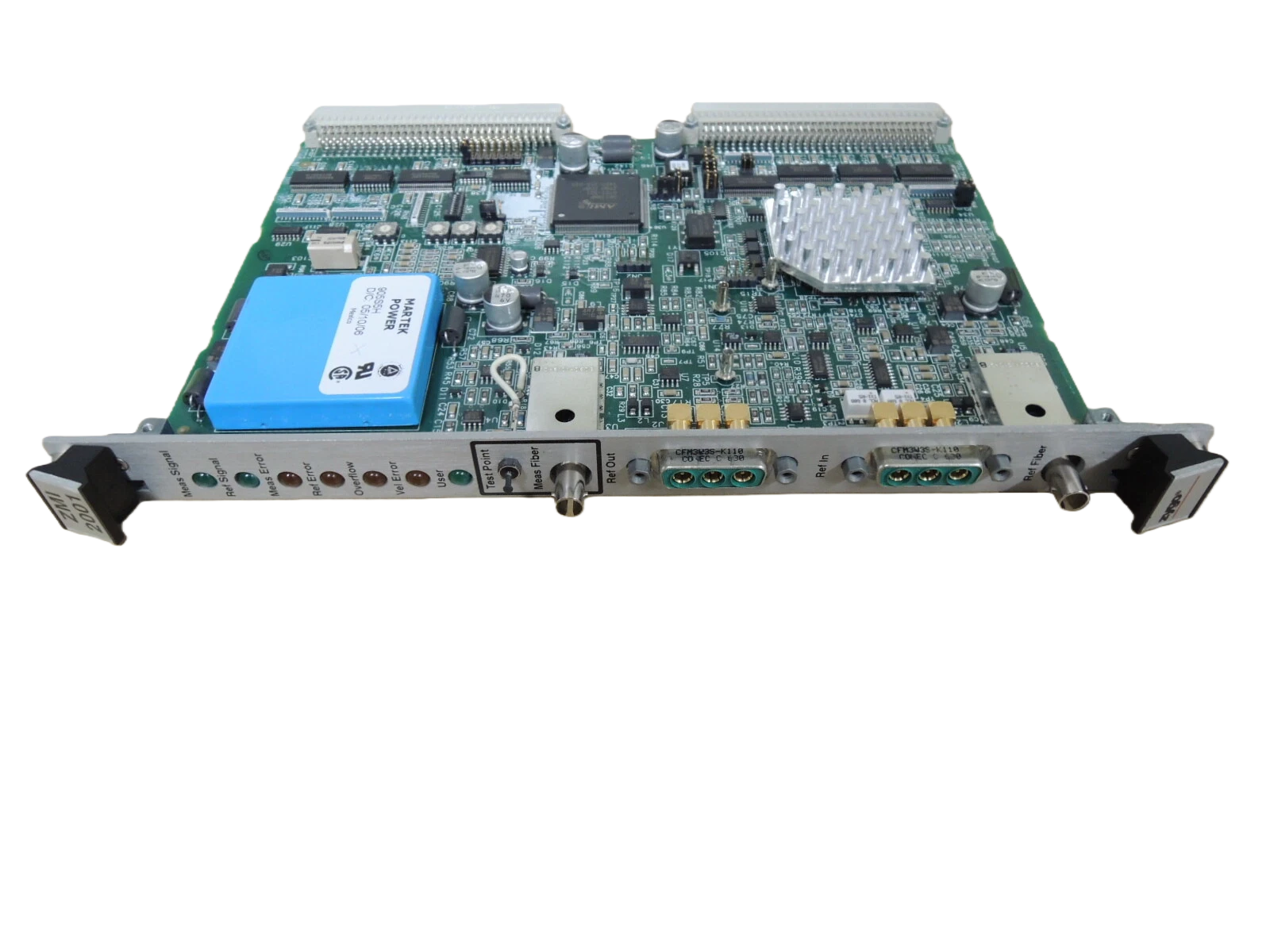

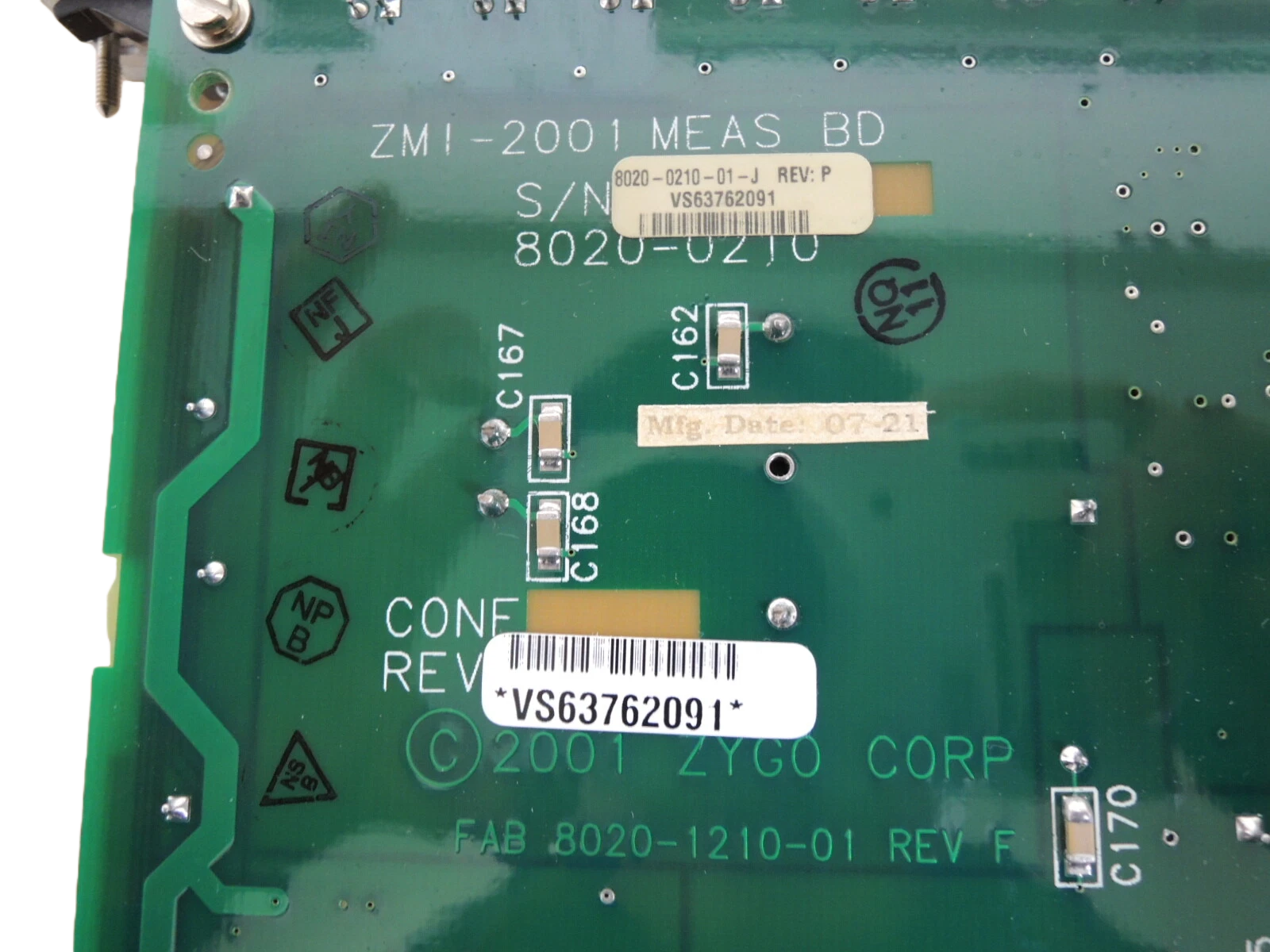

Zygo ZMI-2001 BD 8020-0210 8020-0210-01
This is a single-axis 6U VME measurement board provided by Zygo for displacement measurement interferometer (DMI) systems, typically used with the ZMI-2000 series laser head. The board can be mounted on either the VME or ISA backplane and is specifically designed for high-resolution, real-time position control.
Key Features and Specifications
| Item | Description |
|---|---|
| Number of Axes | Single axis (ZMI‑2001, ZMI PC) — the ZMI‑2002 provides dual axes |
| Form Factor / Interface | 6U VME card, compatible with A16/A24 addressing and D16/D32 data transfers, supports Do8 interrupt acknowledge; also available as a full‑length ISA card (16‑bit ISA bus) and 32‑bit P2 bus |
| Power Requirements | +5 V ± 5 % @ 3.5 A (ZMI‑2001/2002/PC) +12 V ± 10 % @ 0.1 A (ZMI PC only) |
| Position Data | 36‑bit two’s‑complement format |
| Velocity Data | 32‑bit two’s‑complement format |
| Time Range | 107.4 s, 32‑bit two’s‑complement, 25 ns resolution |
| Fiber Optic Signals | Both reference and measurement signals are transmitted via optical fiber |
| Error Status Monitoring | • Reference side: signal, PLL, DLL status • Measurement side: loss, dropped frames, glitches • Velocity: board‑level, user‑defined • Acceleration, overflow (32‑bit, 36‑bit) |
| System Synchronization | Supports clock input or clock output |
| Data‑Age Uncertainty | ±36 ns (uncompensated) for ZMI‑2001; reduced to ±1.4 ns when compensated |
| Compatibility | Conforms to VMEBus specification C.1, UL94Vo rating, suitable for standard 6U VME backplanes |
Typical Applications
- Lithography & Semiconductor Manufacturing: Optical steppers, scanners, electron‑beam/laser mask writers
- Inspection & Metrology: Mask, wafer, LCD inspection tools, CD‑SEM systems
- Process Equipment: Memory repair, precision machining, optical alignment, and any real‑time position‑control requirement
Core Advantages
- High Resolution: λ/2048 (≈ 0.31 nm) per channel; dual‑channel operation can reach λ/4096 (≈ 0.15 nm)
- Fast Response: Up to 2.1 m/s (dual‑channel) or 1.05 m/s (single‑channel)
Data age limited to a few tens of nanoseconds, ensuring accurate real‑time control - Modular Integration: The measurement board plugs directly into any 6U VME or ISA backplane, simplifying system design and reducing cost
