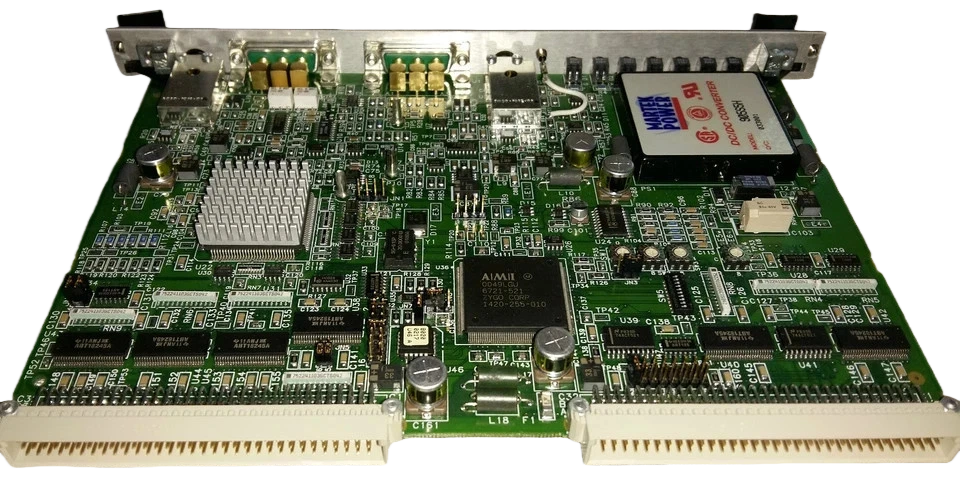

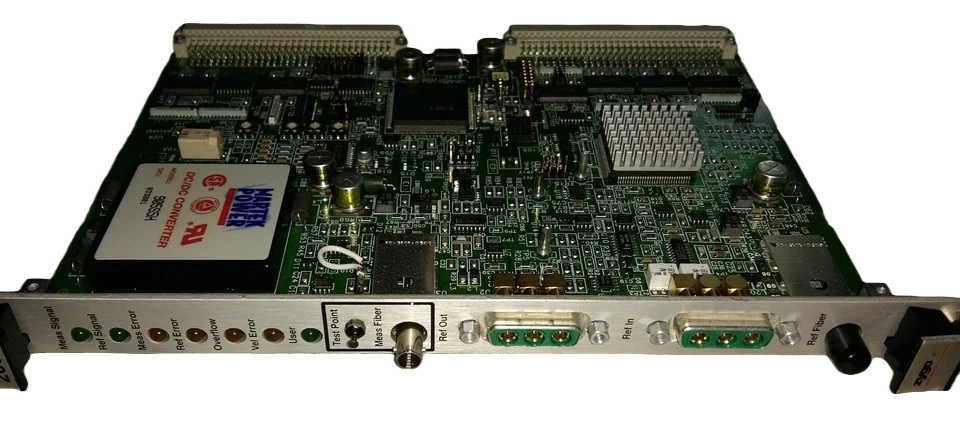

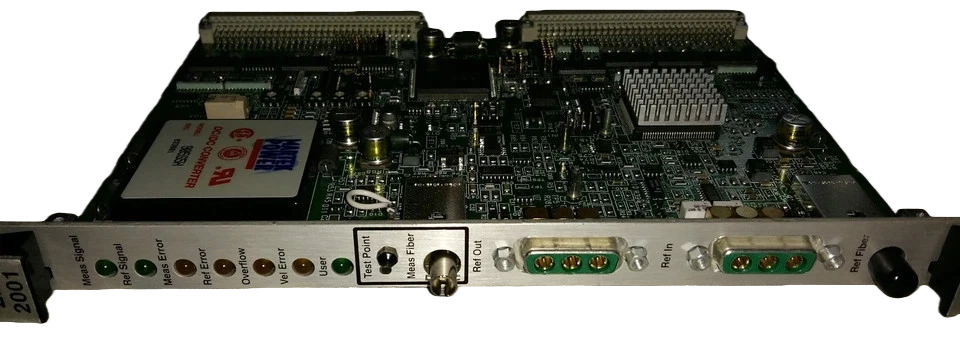

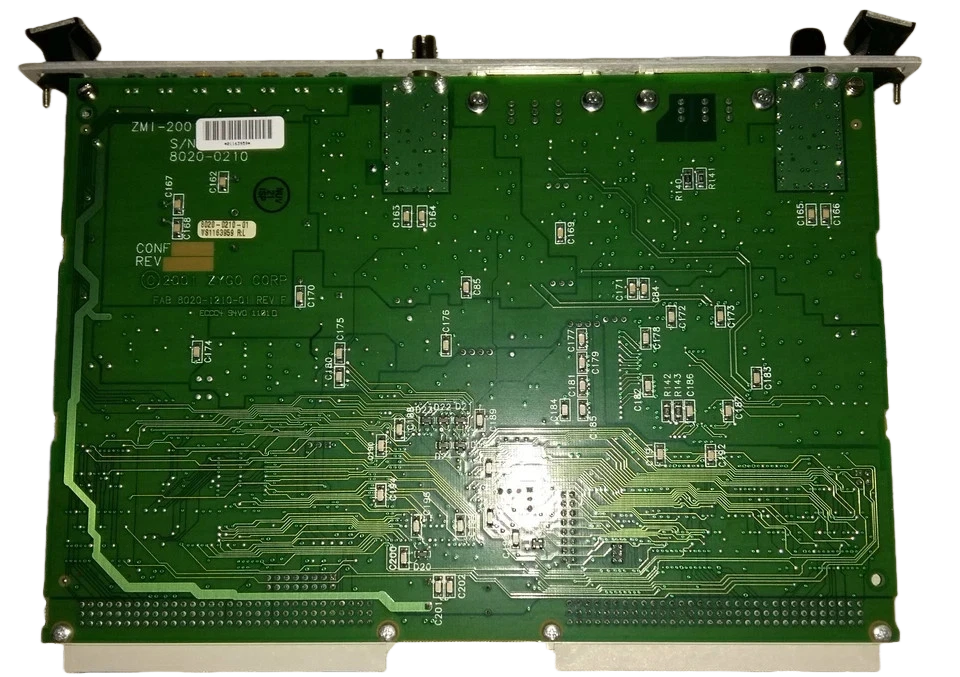

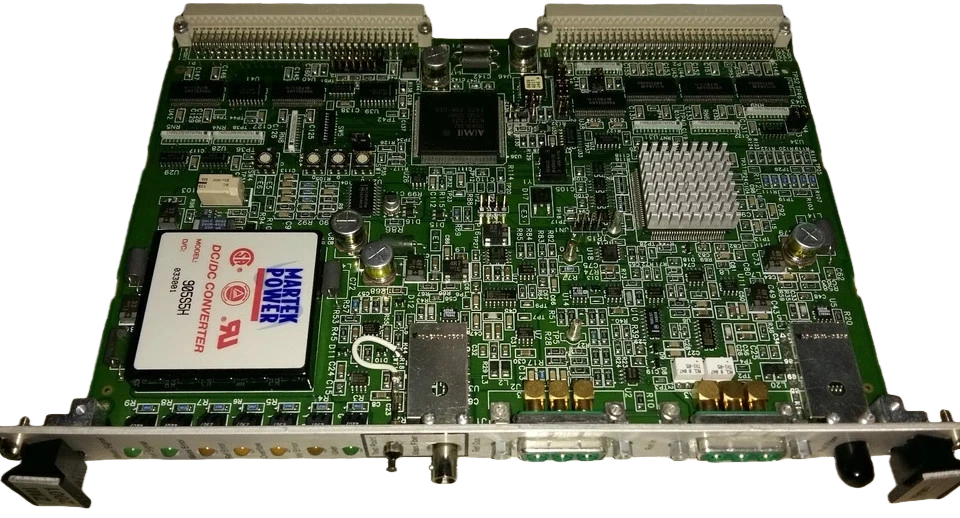

ZYGO ZMI-2001 MEASURE BD 8020-0210-01-J VME

Description

ZYGO ZMI-2001 MEASURE BD 8020-0210-01-J VME

Zygo offers a Displacement Measuring Interferometer (DMI) system for high-end real-time position control.



Key Technical Specifications

Parameter	Specification
Resolution	λ/2048 ≈ 0.31 nm (2‑Pass PMI)
Travel Range	±10.6 m (2‑Pass PMI)
Maximum Speed	2.1 m/s
Maximum Acceleration	980 m/s² (≈100 g)
Data Age	335 ns
Data‑Age Uncertainty	Single‑axis: ±15 ns (ZMI‑2001) Dual‑axis synchronous compensation: ±1.2 ns Multi‑axis (8‑axis) compensation: ±1.7 ns
Laser Head	He‑Ne continuous‑wave dual‑frequency, 425 µW (minimum) / 600 µW (typical) power, 20 MHz ± 1.6 kHz frequency split, vacuum wavelength accuracy ±0.1 ppm (lifetime), stability ±0.01 ppm (24 h), fiber‑optic reference signal
Measurement Board (ZMI‑2001)	6U VME, single‑axis Power: +5 V ±5 % @ 3.5 A ( +12 V ±10 % @ 0.1 A for PC version only ) Position data: 36‑bit 2’s complement Velocity data: 32‑bit 2’s complement Time range: 107.4 s, 25 ns resolution (32‑bit) Fiber signals: reference + measurement Error monitoring: signal, PLL, DLL, loss, jitter, overflow, etc. Interfaces: VME (A16/A24, D16/D32), ISA 16‑bit, P2 32‑bit (up to 7.7 MHz)
Synchronization	Optional clock I/O, supports multi‑axis sync (up to 8 axes)
Mechanical Size	Standard 6U VME card, UL94Vo certified
Lifetime / Warranty	Laser head > 50 000 h, standard warranty 18 months, optional extension up to 5 years
Compliance	NCDRH 21 CFR J (laser safety)

---

Core Features

1. Ultra‑high positioning accuracy – λ/2048 (≈0.31 nm) resolution with data‑age uncertainty ≤ 1.7 ns, eliminating velocity‑ and time‑related errors.
2. High‑speed scanning – 20 MHz heterodyne split enables 2.1 m/s scan speed, suitable for fast feedback loops.
3. Compact integration – Single‑card, single‑axis design saves back‑plane space and reduces thermal and ESD concerns.
4. Multi‑axis synchronization – Up to eight axes can be synchronized, offering compensated and uncompensated data‑age options.
5. Programmable – Full control via the bus, allowing custom sync signals and error handling.
6. Robust laser source – In‑house He‑Ne dual‑frequency laser tube with > 50 000 h lifetime, stable output, and fiber‑optic reference.
7. Broad application range – Lithography, mask/wafer/LCD inspection, memory‑device repair, precision calibration (piezo, linear/rotary stages, AFM), and other high‑end industrial and research environments.

---

Typical Use Cases

• Lithography & Mask Inspection – Provides nanometre‑level feedback for wafer steppers and scanners.
• Wafer / LCD Panel Metrology – High‑precision displacement measurement for dimensional control and defect detection.
• Memory‑Device Repair – Enables precise calibration of hard‑disk, SSD, and other storage media positioning.
• Research Laboratories – Integrated into optical test rigs, atomic‑force microscopes (AFM), and other setups requiring high‑resolution displacement sensing.
