Zygo ZMI 501A 24 8020-0237-01

Description

Zygo ZMI 501A 24 8020-0237-01

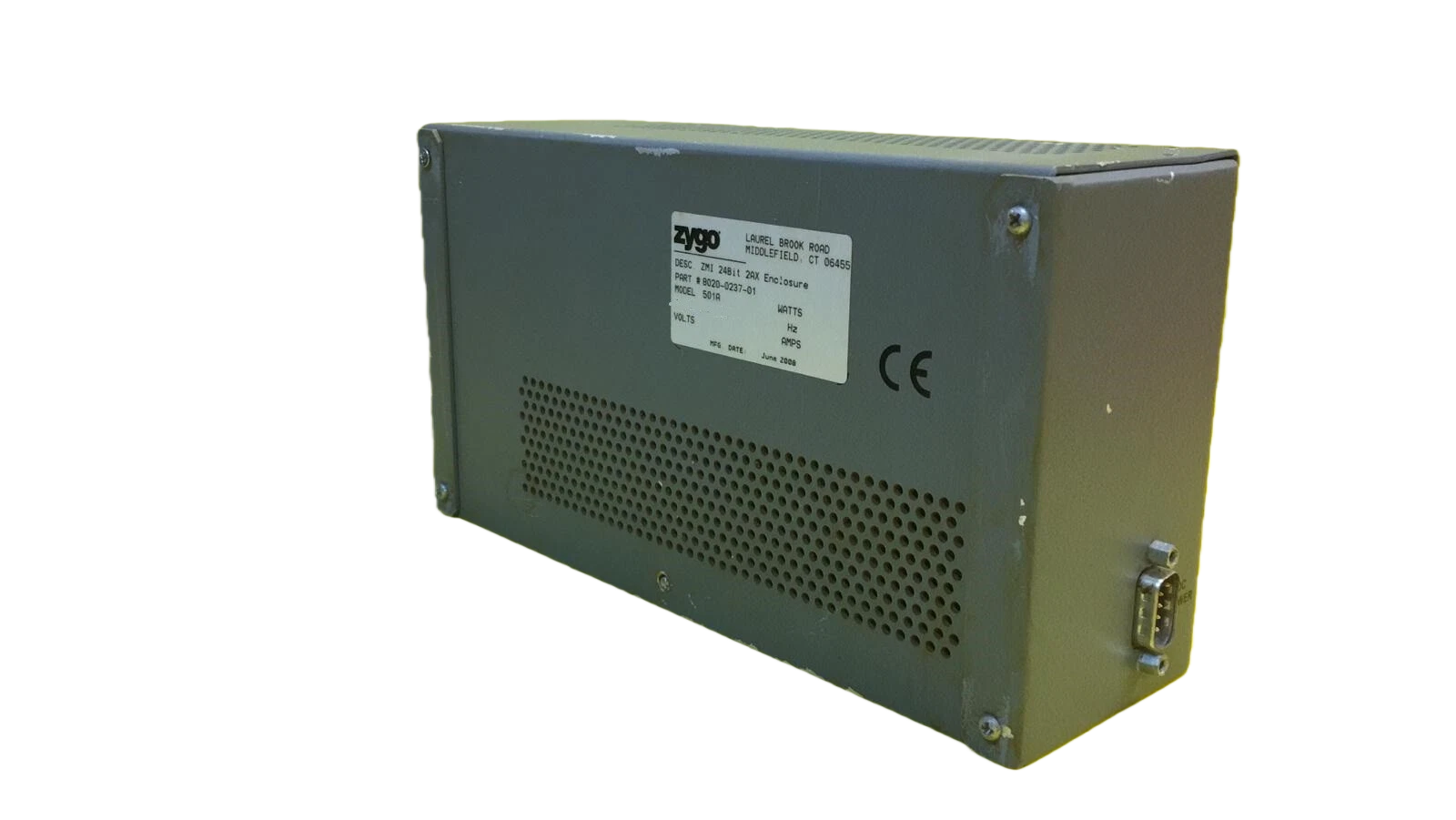

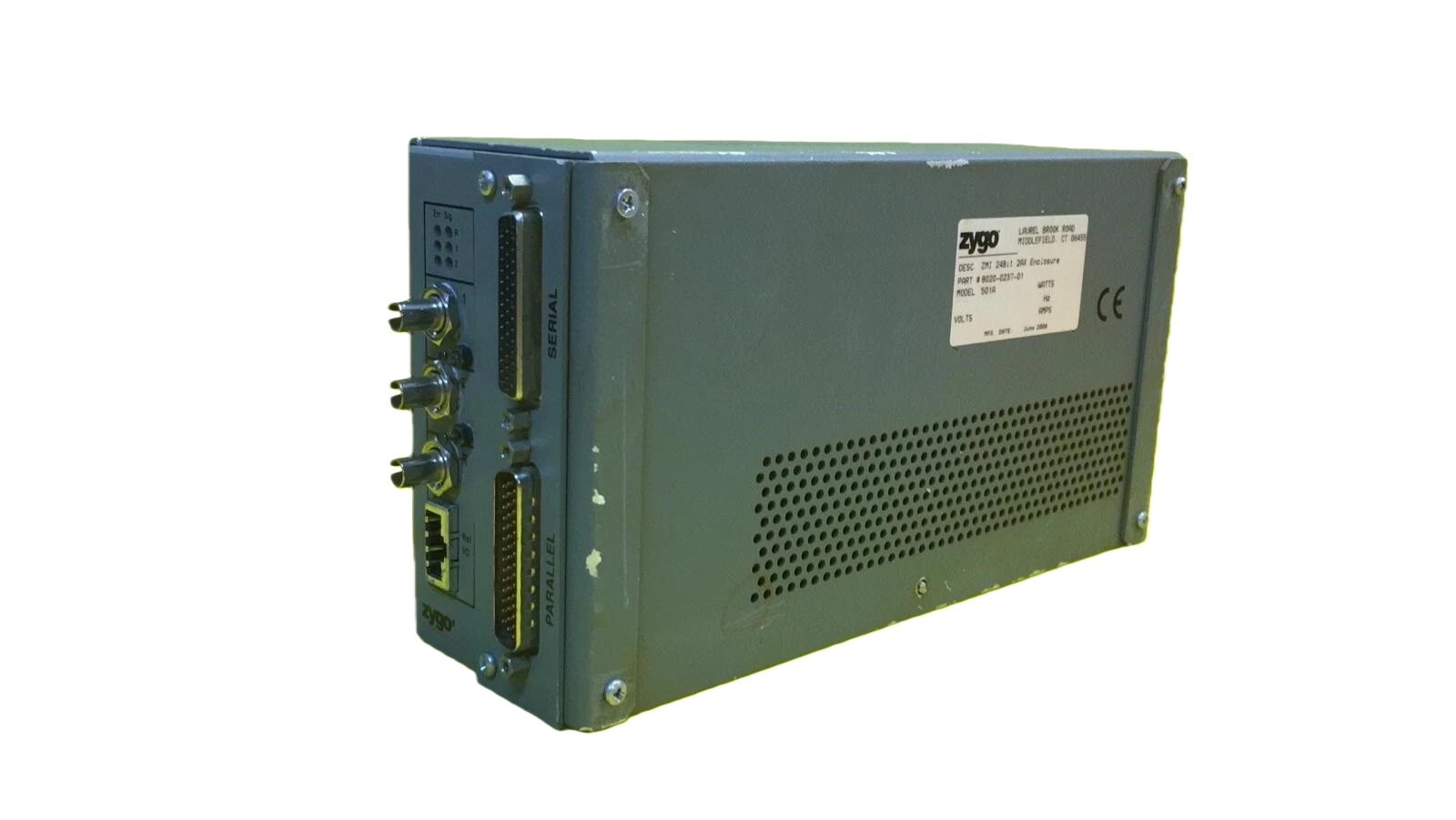

A measuring plate housing designed specifically for high-precision displacement measurement.



Core Functionality & Applications

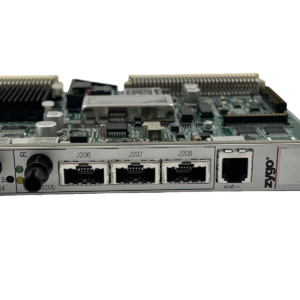

• Utilizes the Zygo ZMI series displacement measurement board housed in a dedicated enclosure, providing two measurement axes capable of sub‑nanometer resolution displacement measurement.
• Displacement is calculated from interferometric optical signals generated by the ZMI laser source, making it suitable for high‑precision metrology in semiconductor manufacturing, optical component testing, scientific research, and other precision‑measurement scenarios.
• Designed for modular installation in VME chassis, supporting up to 64 measurement axes in a system, and incorporates patented error‑cycle elimination technology that automatically corrects system non‑linearity, ensuring the highest measurement accuracy.

Technical Specifications (8020‑0237‑01)

• Physical Characteristics: Approximate weight 2 lb (≈1 kg); cable clearance 5 in (127 mm) at both ends (refer to mechanical drawings for detailed dimensions).
• Electrical Requirements: Nominal supply 5.2 V DC, operating current 0 – 0.4 A (typical) / 3.3 A (maximum).
• Environmental Conditions: Operating temperature lower limit 0 °C; the upper limit is not fully disclosed in publicly available data and should be consulted in the complete technical manual.

Product Positioning

• As the 24‑bit, dual‑axis variant of the ZMI 501A series, part 8020‑0237‑01 is intended for applications demanding high resolution, low noise, and robust reliability in displacement measurement systems.
• Compatible with other Zygo measurement boards and laser heads, and can be seamlessly integrated with VME‑64x platforms, making it suitable for industrial metrology, laboratory research, and high‑end manufacturing processes that require real‑time, on‑line monitoring.
