Zygo ZMI 501A 24 Measurement Interferometer Module

Description

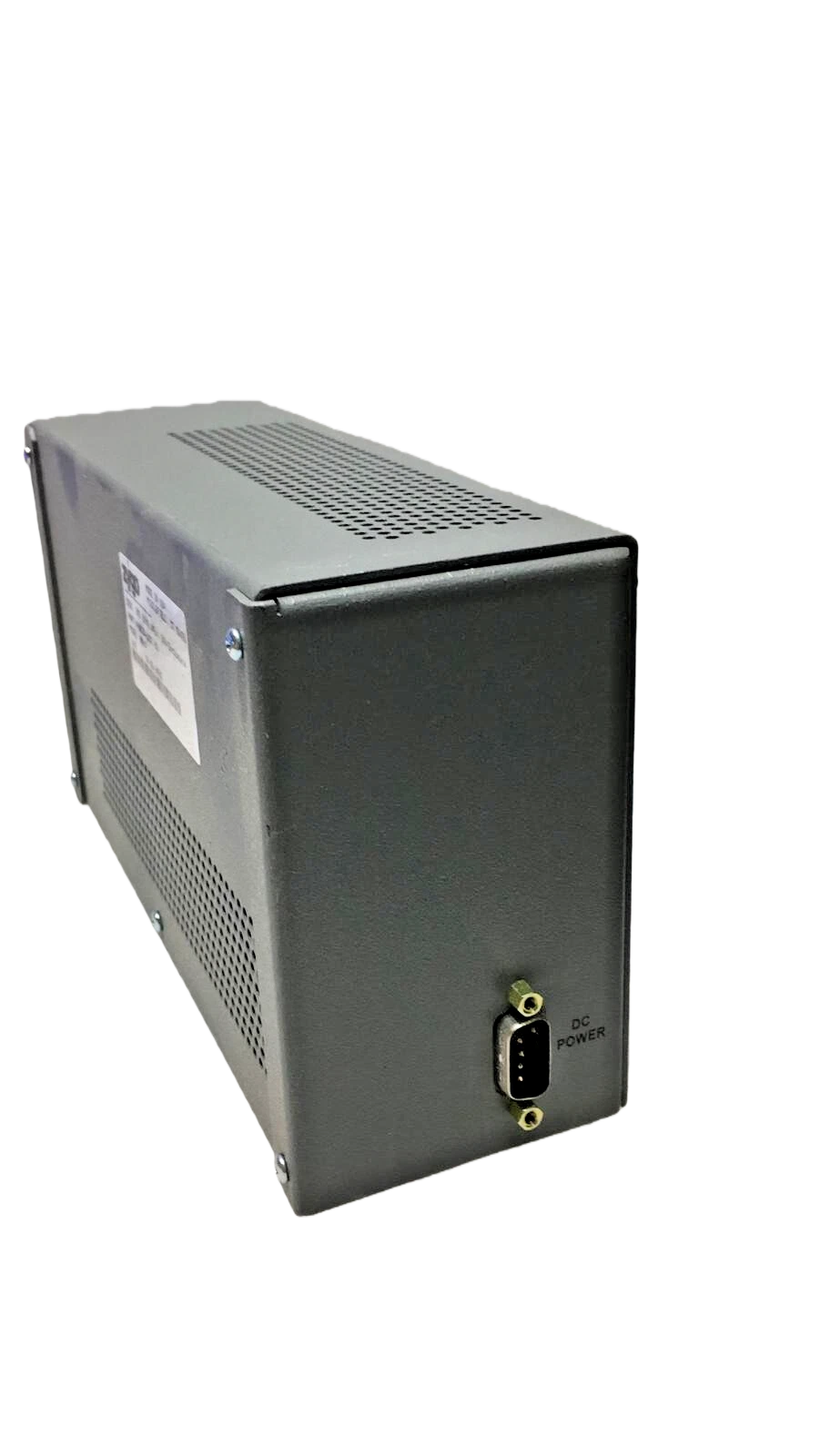

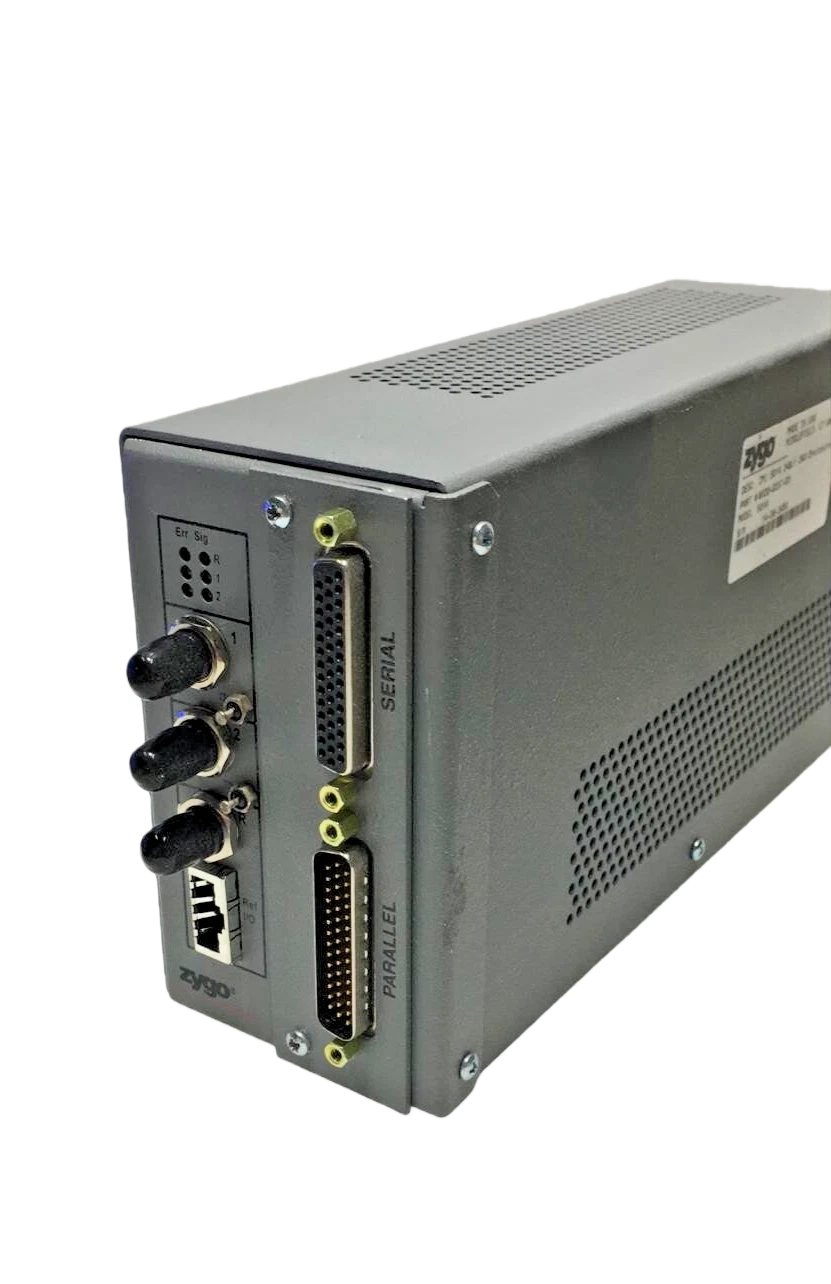

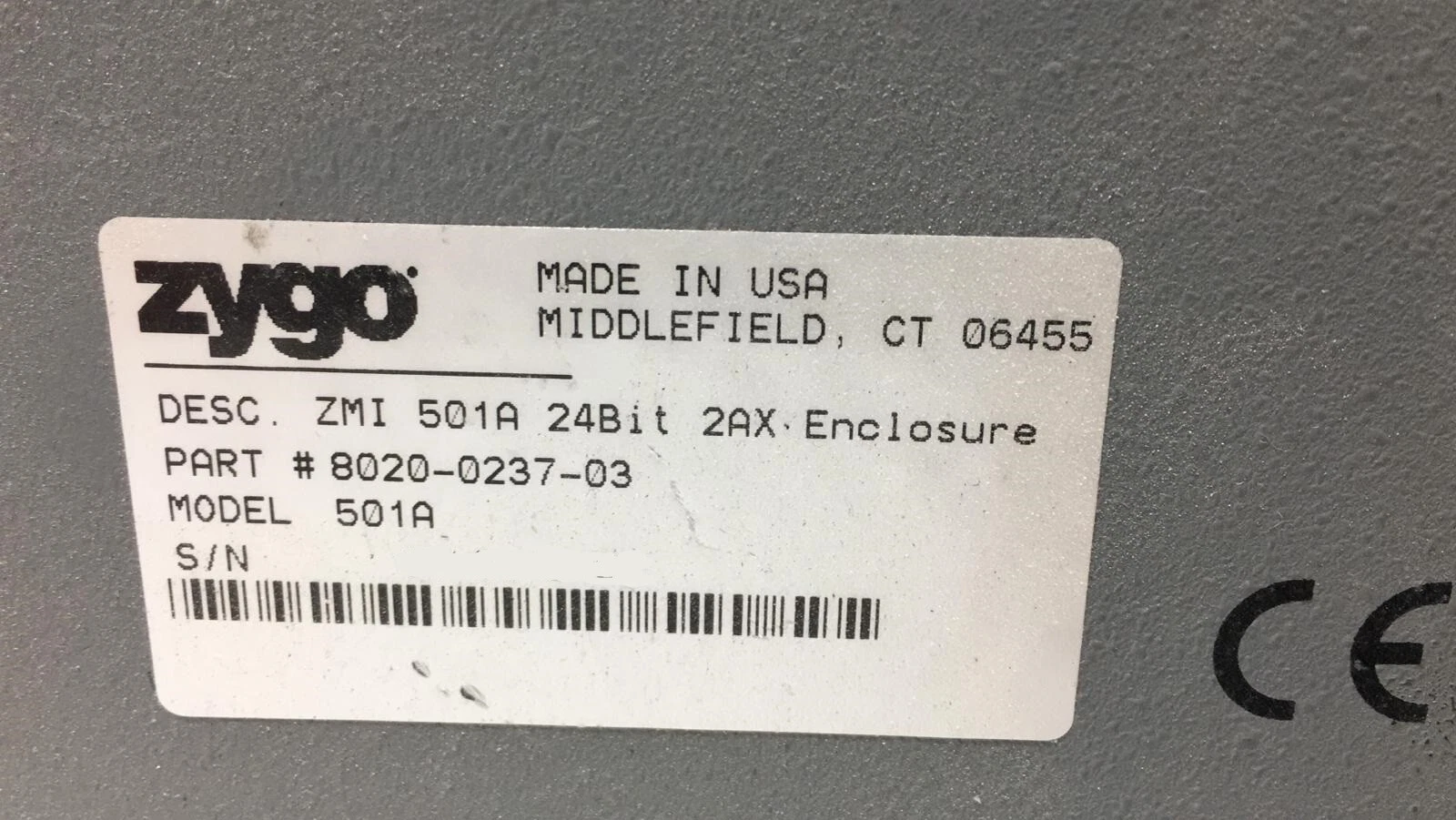

Zygo ZMI 501A 24 Measurement Interferometer Module

This is a high-precision, scalable displacement measurement interferometer module. With its 24-bit bit depth, sub-nanometer resolution, and modular design, it is widely used in high-end metrology and scientific research fields.

1. Measurement Channels
   • Independent‑enclosure design providing two measurement axes (2 AX).
2. Resolution and Bit Depth
   • Utilises a 24‑bit ADC, delivering sub‑nanometer resolution (≈ 1.24 nm).
3. Optics and Laser Source
   • Paired with ZMI‑series continuous‑wave He‑Ne laser heads (λ = 632.8 nm), power range 0‑0.002 W, offering high stability and optical isolation, suitable for multi‑axis measurements.
4. Modular Compatibility
   • “Building‑block” architecture can be combined with ZMI 2400, 4000, 4100 measurement boards and VME 6U or 6U VME64x backplanes, supporting up to 64 channels for expansion.
5. Electrical Specifications
   • Supply voltage 5.2 V DC, maximum current ≈ 3.3 A, operating temperature 0 °C‑40 °C.
6. Mechanical Size and Weight
   • Enclosure dimensions roughly 127 mm × 127 mm, weight about 2 lb (≈1 kg).
7. Application Areas
   • Ideal for semiconductor, optical component, and research environments that require micron/nanometer‑level displacement measurement, offering millisecond‑to‑second measurement rates and compatibility with various wavelengths and optical magnifications.
8. Advantages
   • Automatic compensation of system non‑linearity improves accuracy; internal storage and trigger functions support position‑time data acquisition up to 133 kHz, with a time resolution of 16 ns.
