Description

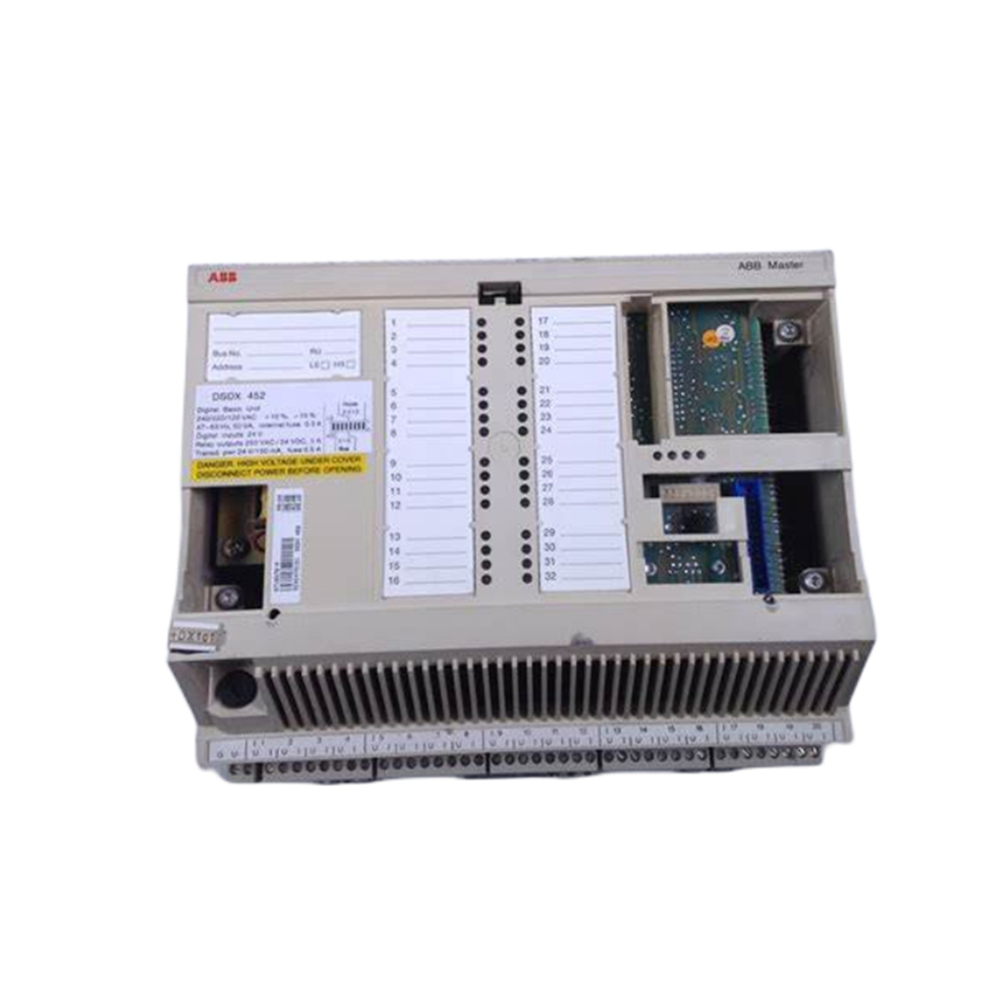

ABB DSDX452
The ABB DSDX452 is a remote input/output (I/O) basic unit used in automation systems.
It’s a crucial component that bridges the gap between the control system and the physical process or equipment.
Key Features and Functions:
1. Remote I/O: This means the unit is physically separated from the main control system, allowing for flexible installation and increased safety.
2. Basic Unit: It serves as the foundation for building an I/O system, providing the necessary communication and power interfaces.
3. Input/Output Capabilities: The DSDX452 can handle various types of inputs (digital, analog, etc.) and outputs (digital, analog, relay, etc.) depending on the specific modules installed.
Typical Applications:
1. Industrial automation processes
2. Machine control
3. Building automation
4. Process control
Components and Modules:
1. DSDX452 Basic Unit: The core component that provides power and communication.
2. I/O Modules: These are added to the basic unit to handle specific input or output signals. Examples include:
①Digital input modules
②Analog input modules
③Digital output modules
④Analog output modules
⑤Relay output modules
3. Power Supply: Provides the necessary power for the system.
4. Communication Modules: Enable communication with the control system (e.g., Ethernet, Modbus, etc.).
