Description

ALSTOM EPSD-0603

This is an industrial control module specifically designed for high-temperature flame detection and digital fault indication. It features high sensitivity, fast response, strong protection, and multiple interface outputs, and is widely used in key industries such as energy, power, metal processing, and chemicals.

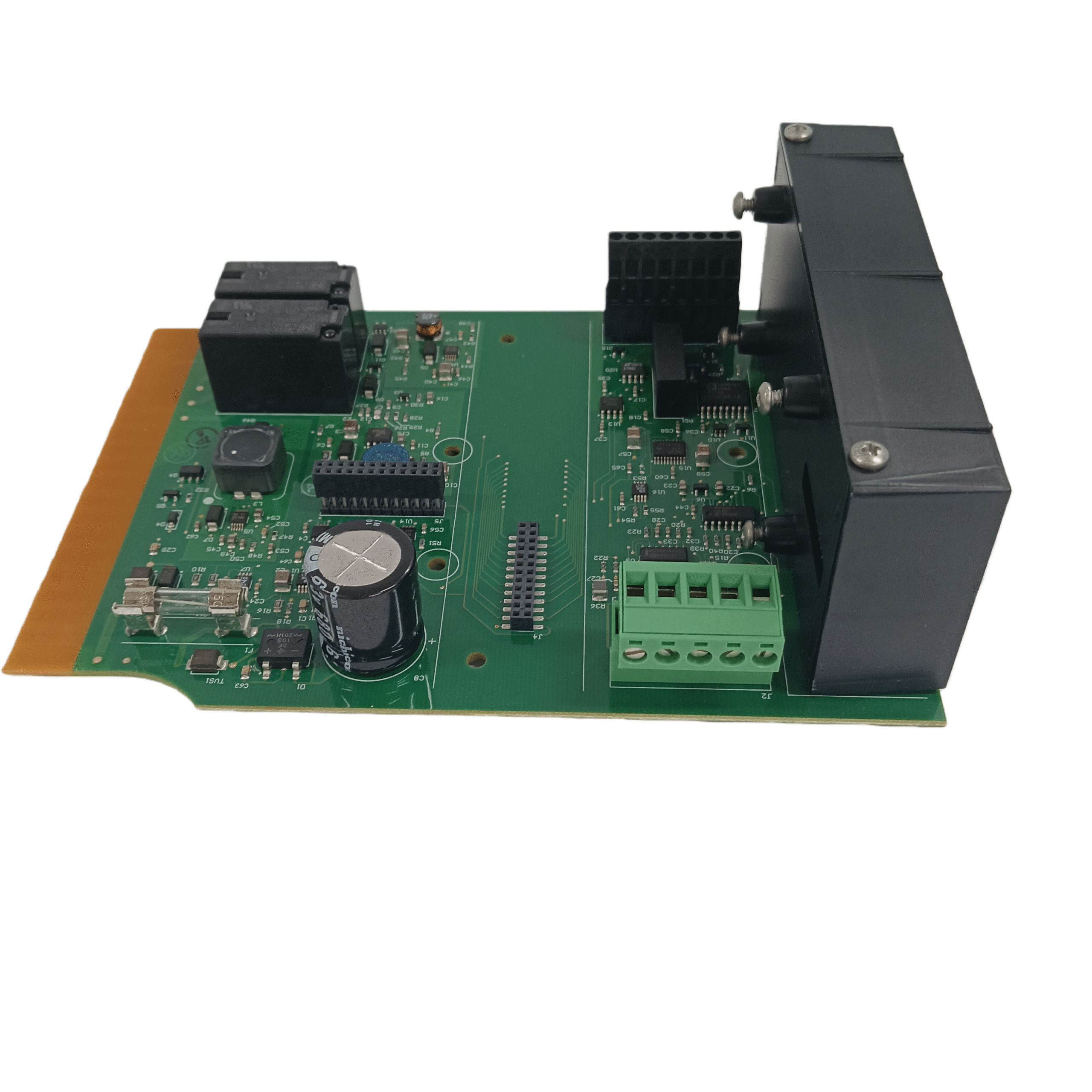

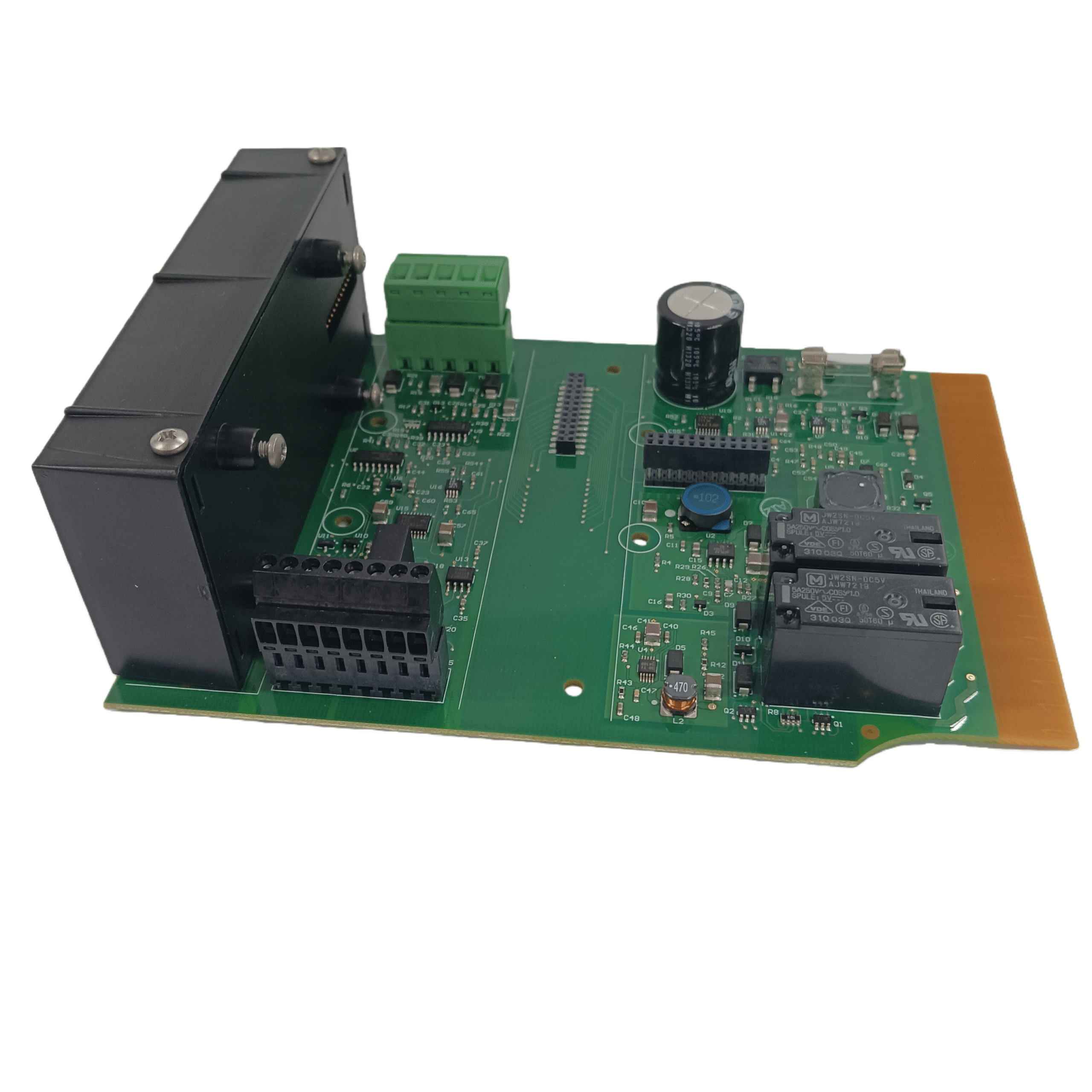

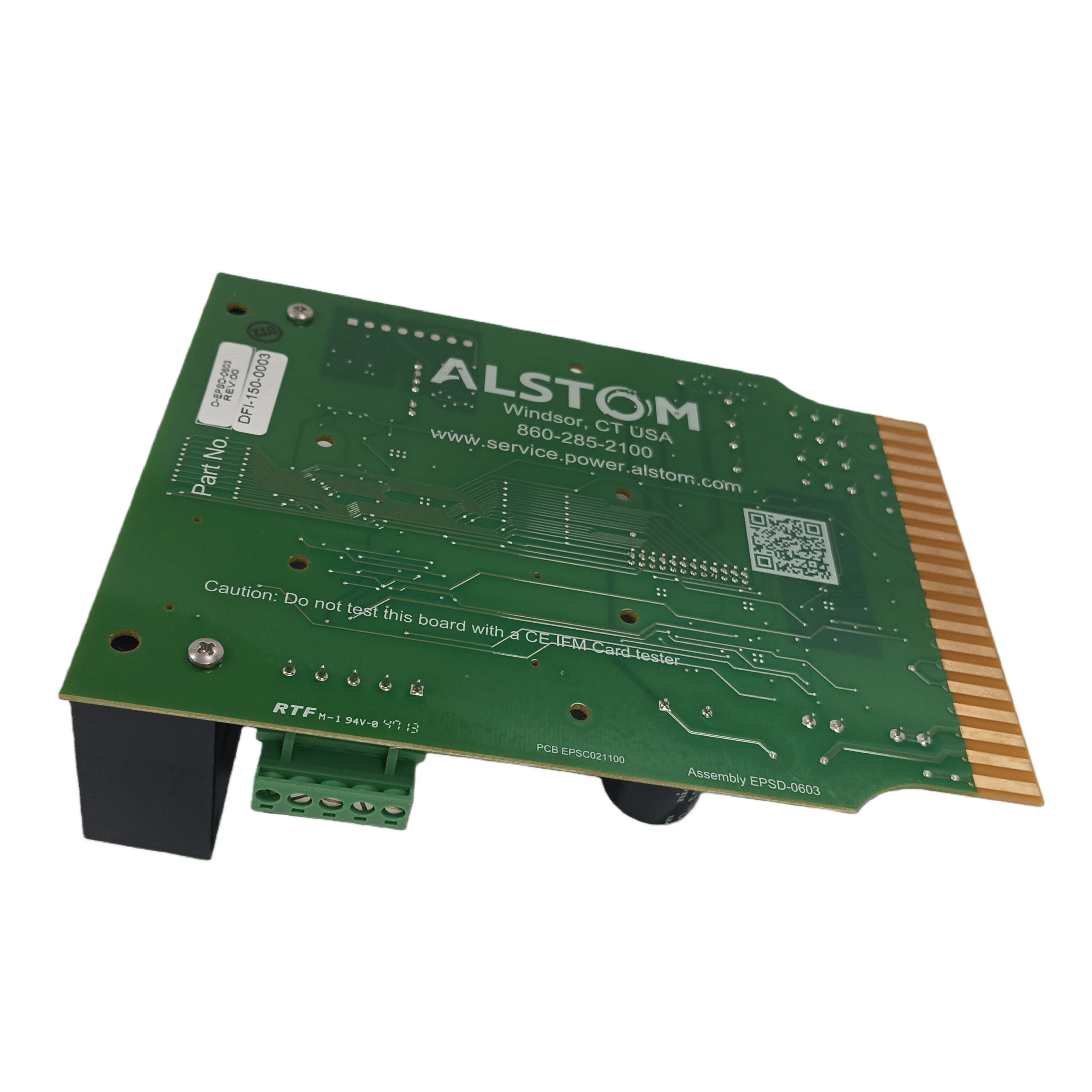

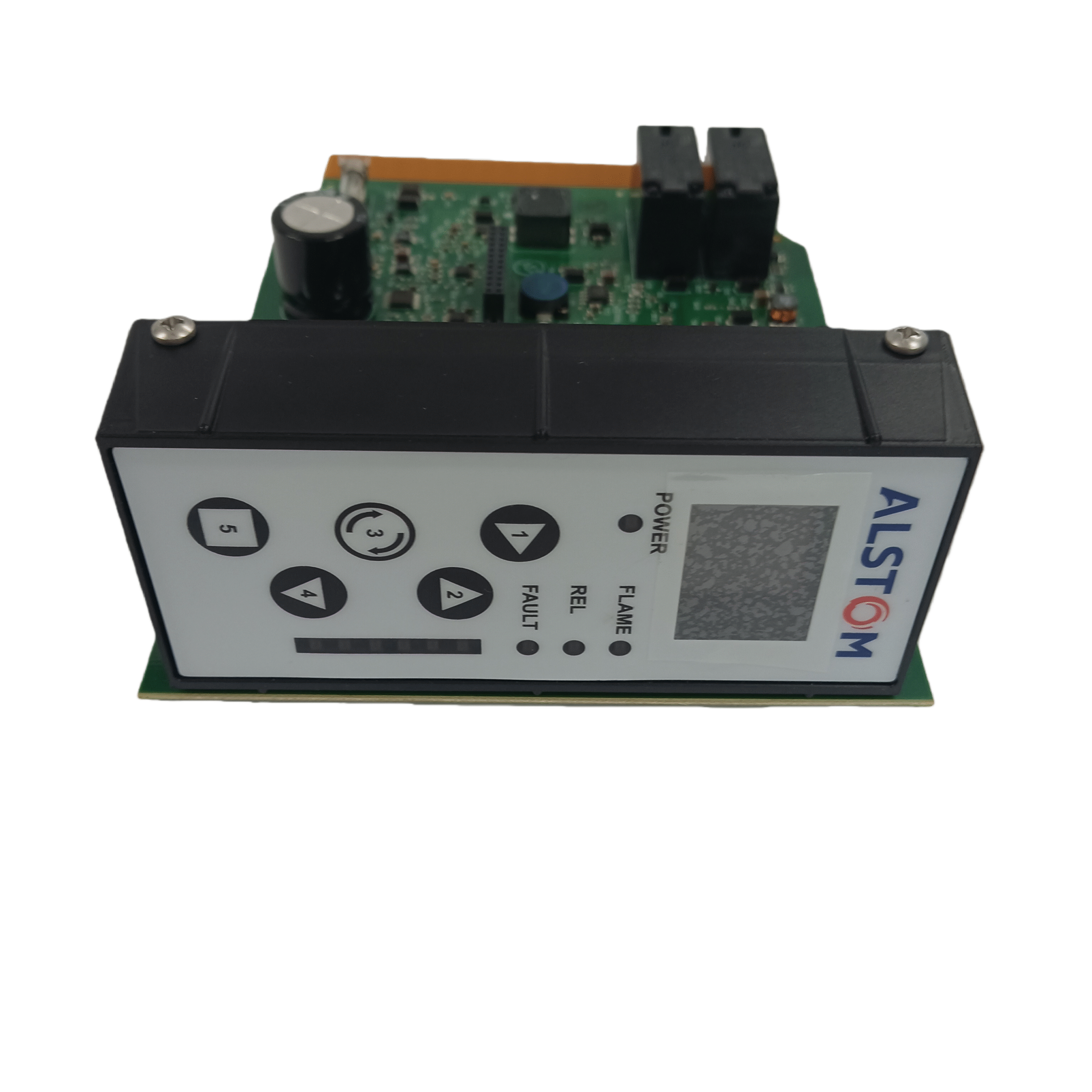

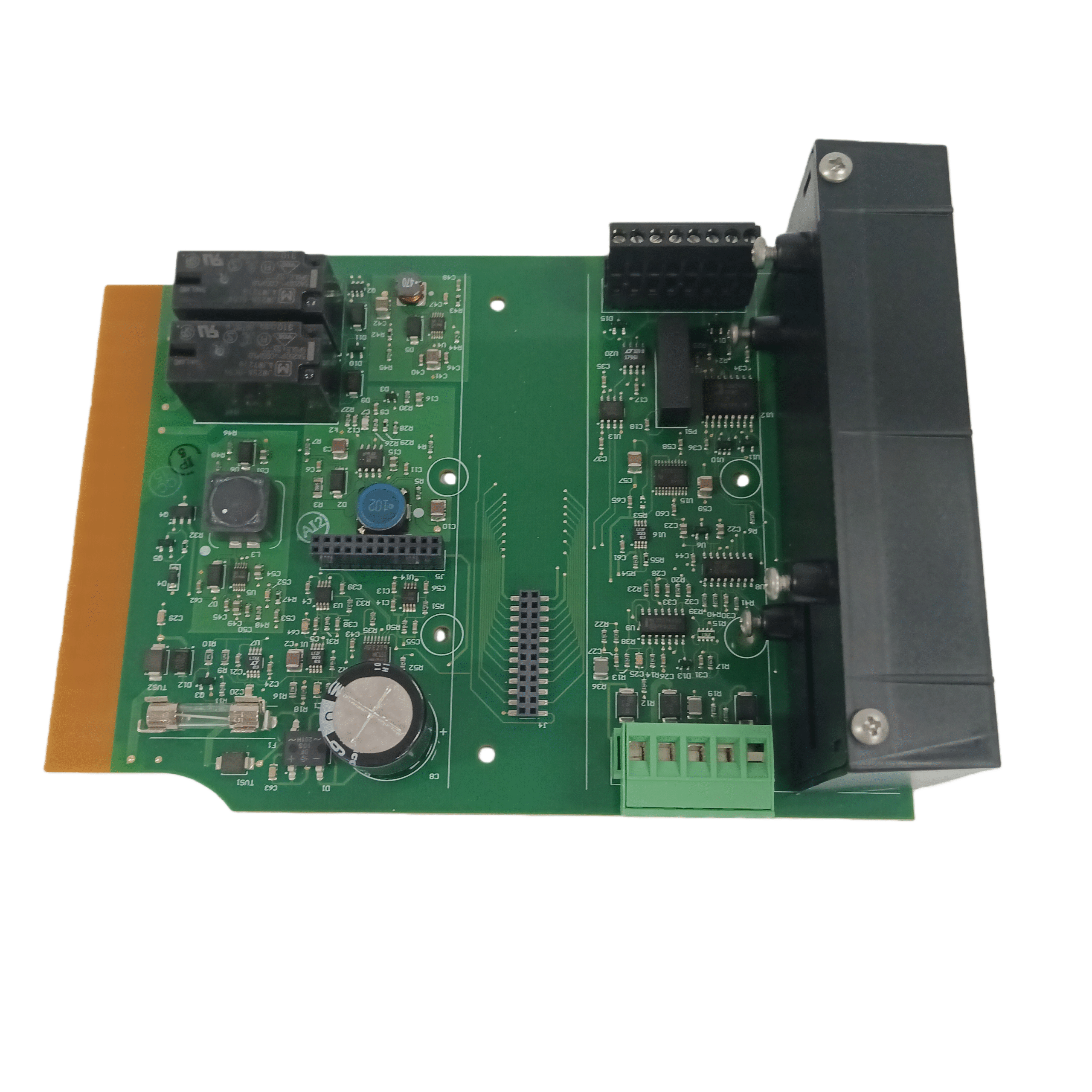

Alstom EPSD‑0603 (DFI‑150‑0003) – Digital Flame‑Detection Circuit Board



• Core function – It continuously analyses flame‑signal waveforms in real time, enabling accurate recognition of flame presence, combustion stability and rapid fault indication with a very low false‑alarm rate.
• Supported flame‑signal types – Infrared, ultraviolet, ion‑current and visible‑light signals can be fed to the board, allowing flexible adaptation to different combustion processes.
• Power supply – Standard operating voltage is 24 V DC (wide input range 18‑36 V); some variants are rated for 220 V AC with 15 A current capability.
• I/O configuration – 8 digital input channels (TTL/CMOS) with a sampling capability up to 100 kHz; optional RS‑485 Modbus‑RTU communication, 3 switch outputs and 4 analog outputs are also available.
• Environmental robustness –
  • Operating temperature: –40 °C ~ +85 °C (IEC 61000‑6‑2 compliant)
  • Isolation voltage: 2500 Vrms, with over‑voltage protection (±30 V) and over‑current protection.
  • Static leakage ≤5 mA, dynamic leakage ≤25 mA.
  • Electromagnetic compatibility: Class IV certification.
• Ingress protection – Standard IP20 rating; certain versions are offered with IP66 for harsher environments.
• Mechanical data – Compact size of 150 mm × 150 mm × 50 mm and a weight of approximately 0.5 kg.
• Typical applications –
  • Industrial combustion monitoring (welding, plasma‑cutting, laser‑cutting).
  • Power‑generation equipment (gas turbines, boiler control).
  • Railway and transportation safety systems.
  • General process‑control and safety‑instrumentation in harsh industrial settings.
• Key advantages – High‑sensitivity flame detection, fast alarm response, robust electrical protection, wide temperature tolerance and strong EMI immunity, making it a reliable component for safety‑critical industrial automation.
