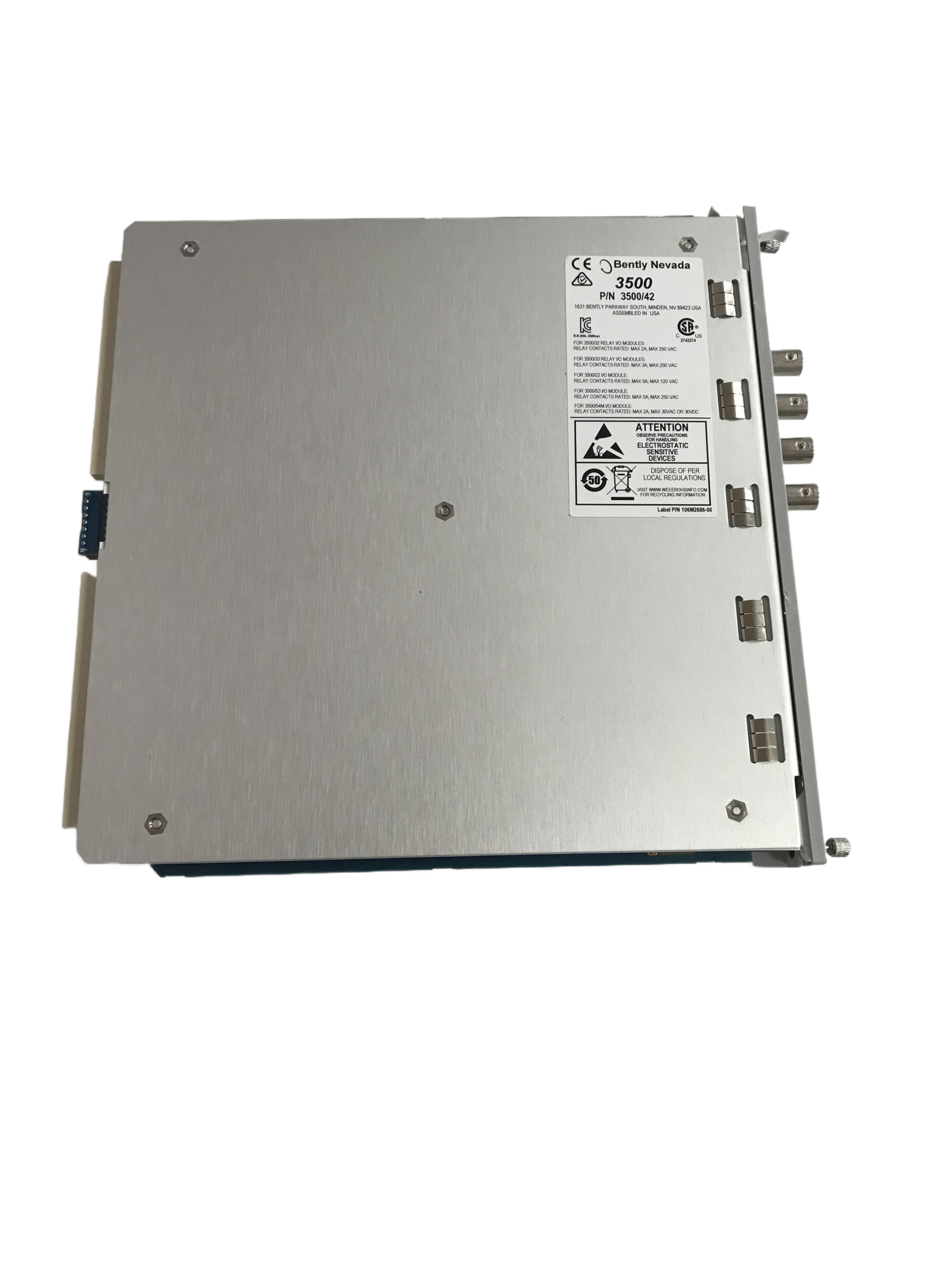

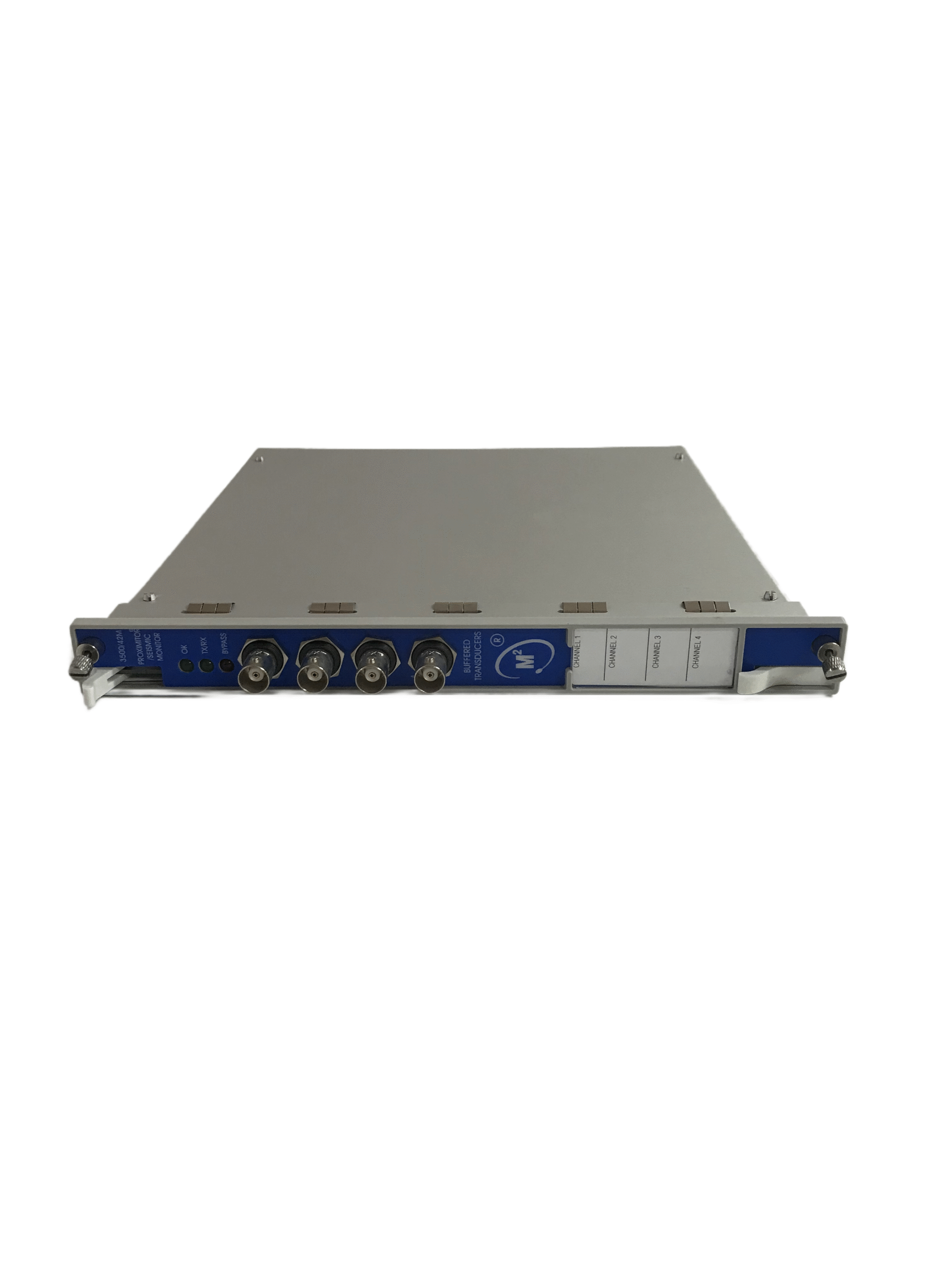

BENTLY 3500-42M 176449-02
This high-performance, four-channel industrial automation control module, commonly referred to as a “proximity monitor” or “vibration monitoring module,” is the core component of the Bently Nevada 3500 Series Machinery Condition Monitoring System. It is primarily used for real-time condition monitoring and protection of large rotating machinery such as turbines, compressors, and generators.
1. Main Monitoring and Measurement Functions
1. Radial Vibration
2. Axial Displacement/Thrust Position
3. Differential Expansion
4. Eccentricity
5. REBAM (Specialized Vibration Analysis Function)
6. Acceleration
7. Velocity
8. Absolute Shaft Vibration
9. Circular Acceptance Area
2. Key Features and Technical Parameters
1. Four-channel design: Allows simultaneous monitoring of four independent measurement points.
2. Channel pair programming: Channels are typically configured in pairs (e.g., channels 1 and 2, channels 3 and 4), with each pair performing a specific monitoring function.
3. Input impedance: Standard 10kΩ.
4. Power consumption: Approximately 7.7W
Sensor Output:
The front panel features a short-circuit-proof coaxial connector for each channel.
Output Impedance: 550Ω.
Sensor Power Supply: -24 VDC.
Recorder Output:
Provides a 4-20 mA analog current signal output, one per channel.
Voltage Compliance Range: 0 to +12 VDC.
Load Resistance: 0 to 600Ω.
Monitor operation is not affected by a short-circuit on the recorder output.
Status Indicators (LEDs):
OK LED: Indicates normal module operation.
TX/RX LED: Indicates the module is communicating with other modules in the 3500 rack.
Bypass LED: Indicates the module is in bypass mode. High Reliability: Designed for long-term, stable operation in harsh industrial environments.
Remote Configuration: Remote setup, programming, and diagnostics are available via the 3500 rack configuration software.
3. Typical Application Areas
Widely used in monitoring critical rotating equipment in industries such as power generation, petrochemicals, metallurgy, and aerospace, including but not limited to:
Steam turbines
Gas turbines
Compressors
Pumps
Generators
Fans
