Description
GE IC660TBD025
Overview

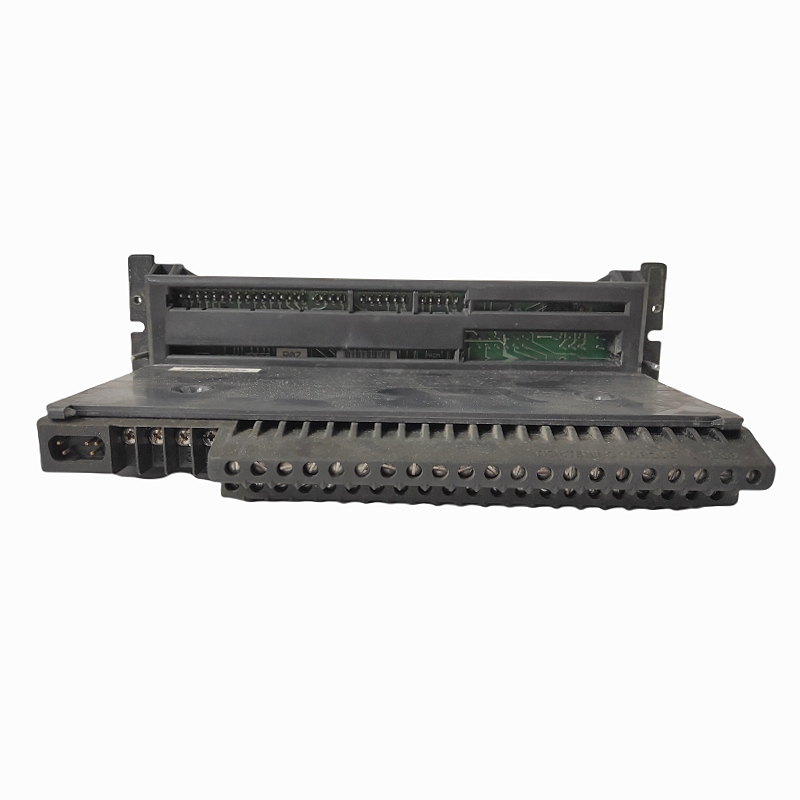

The IC660TBD025 is a Bus Driver (Terminator Base) module from the GE Fanuc Series 90-70 PLC system. It is a crucial component for the Genius I/O Bus network.
- Key Purpose: It converts the controller’s internal signals to the differential serial signals used on the robust, noise-immune Genius bus.
- Physical Role: It mounts on a standard DIN rail and provides two screw-terminal connectors for the bus cabling and a 10-pin connector for interfacing with the bus controller module (IC670GBI001) via a ribbon cable.
Technical Specifications
| Parameter Category | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms (now part of Emerson Automation) |
| Series | Series 90-70 Genius I/O System |
| Part Number | IC660TBD025 |
| Description | Bus Driver (Terminator Base) for Genius Bus |
| Compatibility | Interfaces with the IC670GBI001 Genius Bus Controller module. |
| Bus Protocol | GE Genius® I/O Bus |
| Data Rate | 153.6 kbaud (Kilobaud) |
| Number of Drops | Supports up to 32 devices (including the Bus Controller itself) on a single bus segment. |
| Bus Length | Maximum 7500 ft (2286 meters) with standard Belden 9463 cable (or equivalent twisted pair). The maximum length can be affected by the number of drops. |
| Termination | The module itself provides the required termination for the bus network. Termination is critical for preventing signal reflections. |
| Connectors | • Two (2) 6-position screw terminal blocks for the Genius bus IN and OUT. • One (10-pin) female ribbon cable connector for connection to the IC670GBI001 controller. |
| Isolation | 500V AC between the bus and the logic (controller) side. |
| Power Requirements | +5V DC (sourced from the bus controller module via the ribbon cable). |
| LED Indicators | Two LEDs on the front panel: • PWR (Green): Indicates +5V power is present. • ACT (Green): Blinks to indicate data activity on the bus. |
| Operating Temperature | 0° to 60° C (32° to 140° F) |
| Storage Temperature | -40° to 85° C (-40° to 185° F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Mounting | Standard 35 mm DIN rail. |
Key Features and Functions
- Signal Conversion: Translates logic-level signals from the bus controller to the differential Manchester II encoded signals used on the Genius twisted-pair bus.
- Bus Termination: Contains the necessary terminating resistors, making external terminators unnecessary. This is why it’s called a “Terminator Base.”
- Isolation: Provides 500V of isolation, protecting the sensitive PLC controller from electrical noise, spikes, or ground loops on the field bus.
- Diagnostics: The PWR and ACT LEDs provide basic status for quick troubleshooting (power presence and communication activity).
