GE IS200TSVCH1AJE

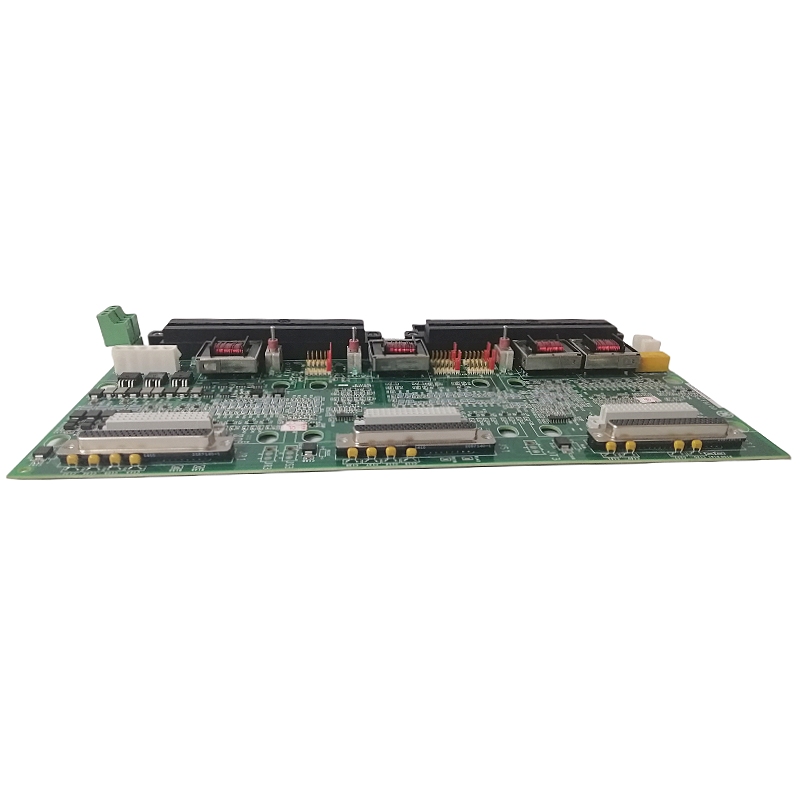

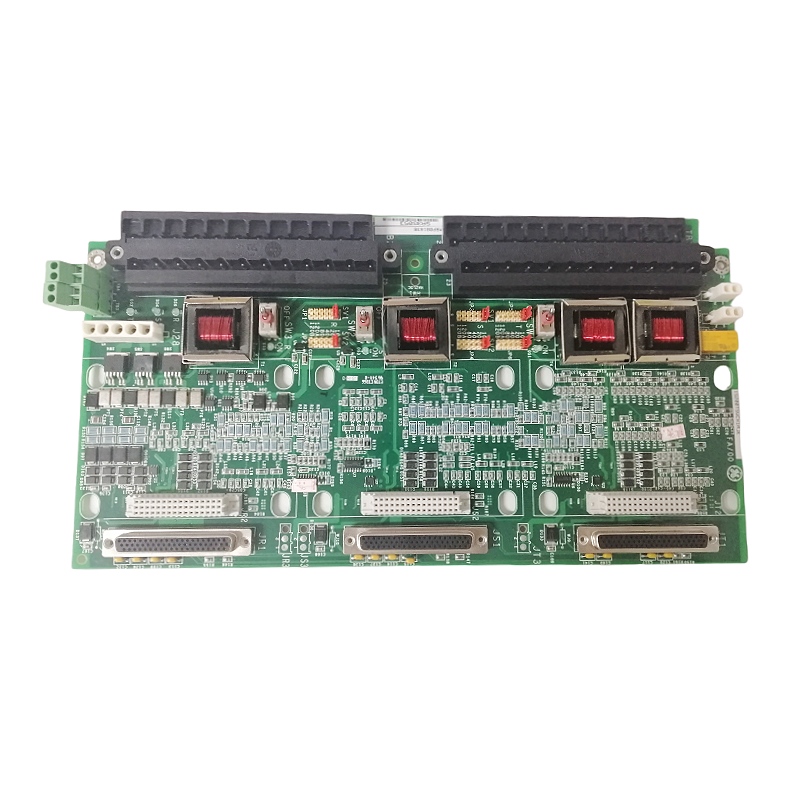

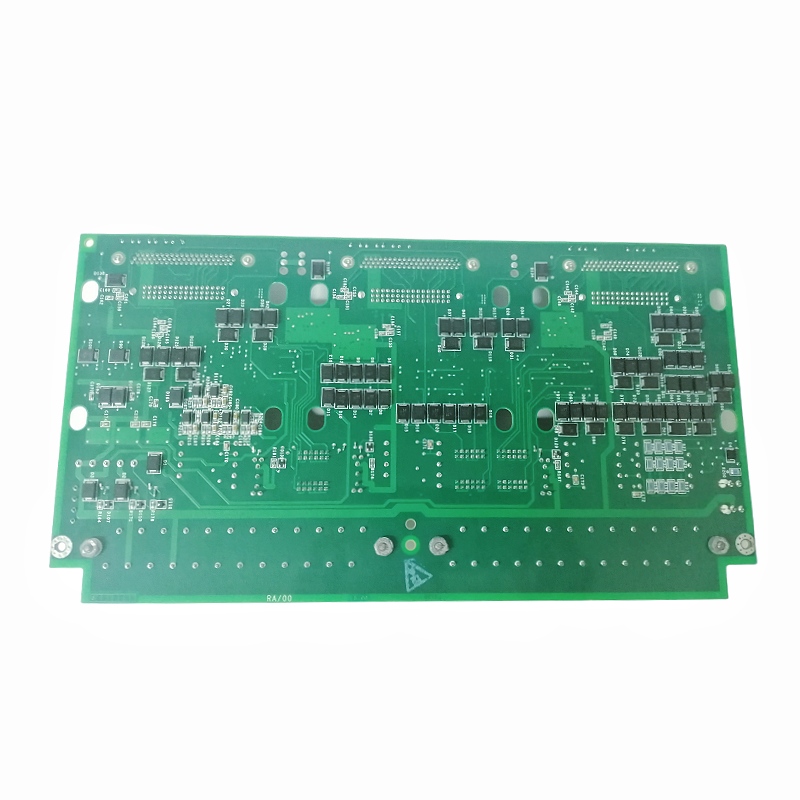

The GE IS200TSVCH1AJE is a printed circuit board (PCB) designed for industrial automation and control systems, particularly within General Electric’s Mark VI Speedtronic turbine control system. Below is a detailed overview of its technical specifications, based on the search results:
📊 1. Basic Specifications
- Model: IS200TSVCH1AJE
- Dimensions: 13.39 inches (length) × 8.5 inches (width) × 2.17 inches (height)
- Weight: Approximately 2.2 pounds (1.00 kg)
- Input Voltage Range: 12–48 VDC
- Output Voltage: 5 VDC
- Power Consumption: 10 watts
- Operating Temperature Range: -40°C to +85°C
⚙️ 2. Functional Overview
The IS200TSVCH1AJE is an analog I/O board part of the Mark V series, used primarily in gas turbine control systems. It conditions and scales analog signals from terminal boards installed in I/O racks (R1, R2, R3). Key functions include:
- Signal processing for LVDT inputs, servo valve outputs, thermocouple inputs, 4–20 mA inputs/outputs, vibration inputs, relay driver outputs, pulse inputs, voltage inputs, and generator/line signals .
- Communication with other boards (e.g., STCA, TCQC) via connectors like 3PL (data bus) and JE (generator/line signals) .
- Configurable current output ranges (20 mA or 200 mA) via hardware jumpers (J5, J6) .
🔌 3. Connectors and Interfaces
- 2PL: Distributes power from TCPS boards .
- 3PL: Data bus connecting STCA, TCQA, and TCQE boards for COREBUS communication .
- JA: Handles thermocouple inputs and cold junction compensation .
- JB: Transmits 4–20 mA inputs/outputs to/from TBQC terminal boards .
- JE: Transfers pulse signals, generator/line signals, relay driver outputs, and servo valve drives to/from TCQC boards .
- JG: Carries ±10 VDC inputs and vibration inputs from TBQB terminal boards .
🏭 4. Applications
- Energy & Power: Vibration monitoring for turbines, compressors, fans, pumps, and other large rotating machinery .
- Industrial Automation: Used in DCS monitoring systems, smart flat tempering furnace systems, PLC-based conveyor control systems .
- Aerospace & Telecommunications: Applied in industries requiring high reliability and performance under harsh conditions .
💡 5. Key Features
- High Reliability: Multilayer PCB design ensures flexibility and integration in diverse industrial environments .
- Diagnostics: Includes advanced diagnostic features for troubleshooting and maintenance .
- Compatibility: Compatible with GE’s Mark VI and designed for use with PSVO I/O packs and WSVO servo drivers .
- ESD Sensitivity: Requires proper ESD safety measures during handling .
