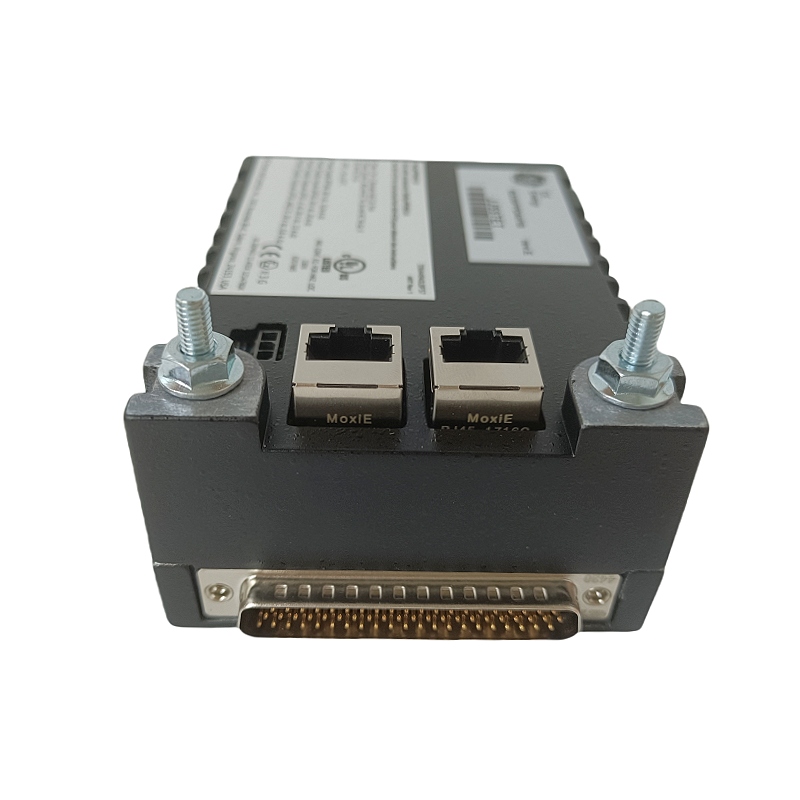

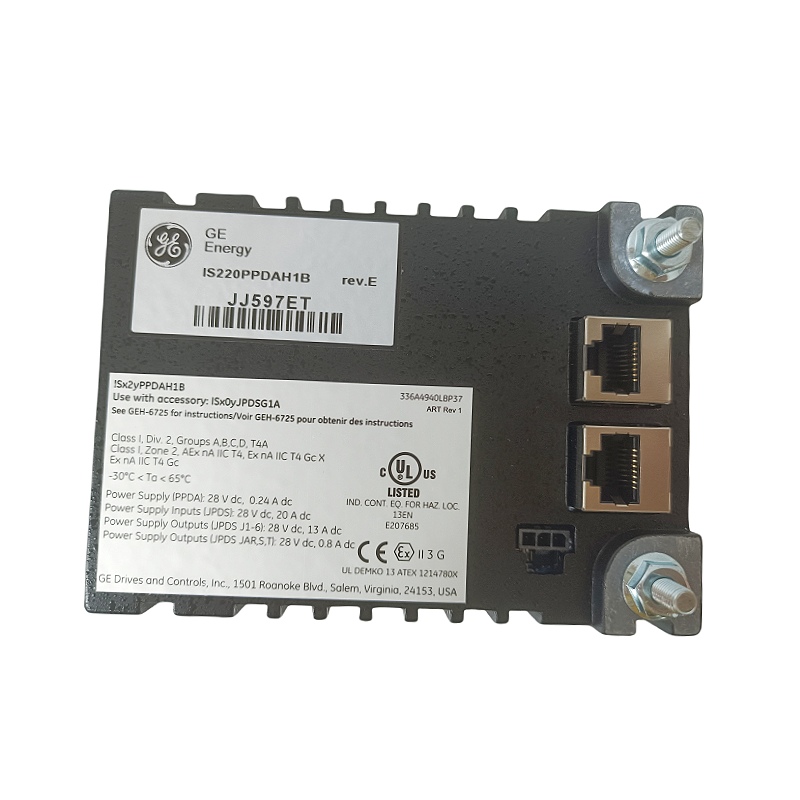

GE IS220PPDAH1B
The GE IS220PPDAH1B is a Distribution System Feedback Module belonging to General Electric’s Mark VIe series 🛠️, designed primarily for industrial automation and gas turbine control systems. It serves as a critical component in managing power distribution and providing real-time feedback for high-reliability applications. Here’s a detailed overview of its features, specifications, and applications:
🔧 Key Features and Functions
1. Feedback Signal Conditioning
- The module processes feedback signals from compatible power boards (e.g., JPDB, JPDF, JPDE) and supports connectivity with JPDC, JPDS, JPDM, and JPDG power boards via a 50-pin ribbon cable
- It includes ground fault detection (e.g., for JPDE boards) and handles two 115/230 VAC analog feedback signals, local ground signals, and six fused AC inputs
2. Auto-Reconfiguration Capability
- Allows seamless replacement of I/O packs without manual reconfiguration, minimizing system downtime. Note: System restart is disabled during reconfiguration
3. Ethernet Communication
- Integrates an Ethernet interface for real-time data exchange with controllers and higher-level systems (e.g., SCADA) using the IONet protocol
4. Diagnostics and Monitoring
- Performs five self-diagnostic tests to quickly identify faults. LED status indicators provide real-time operational feedback for maintenance
5. Robust Design
- Operates at 28 V DC with a wide temperature range (-30°C to +65°C), suitable for harsh industrial environments
⚙️ Technical Specifications
| Parameter | Description |
|---|---|
| Processor | 80386EX (25 MHz) |
| Scan Rate | 0.22 ms/K |
| Memory | 32 KB user program memory |
| Power Supply | +5 V DC (670 mA) |
| Communication | Ethernet (IONet), serial ports (SNP/SNP-X) |
| Compatibility | Mark VIe systems; power boards JPDC, JPDS, JPDM, JPDG |
| Dimensions | Approximately 170 mm × 105 mm × 32 mm |
| Weight | ~120 g |
