REXROTH VT-HNC100-1-23M-08-P-0

Description

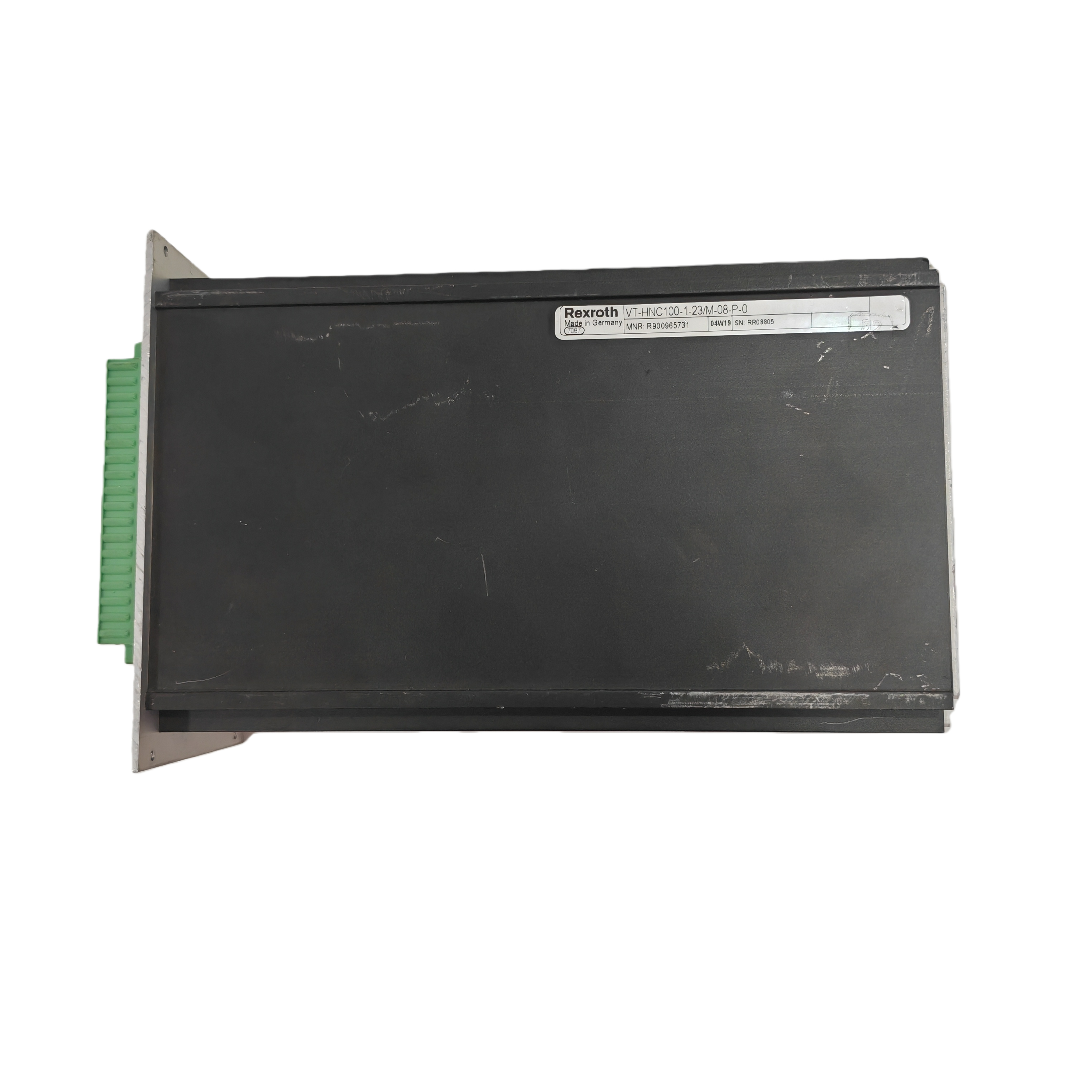

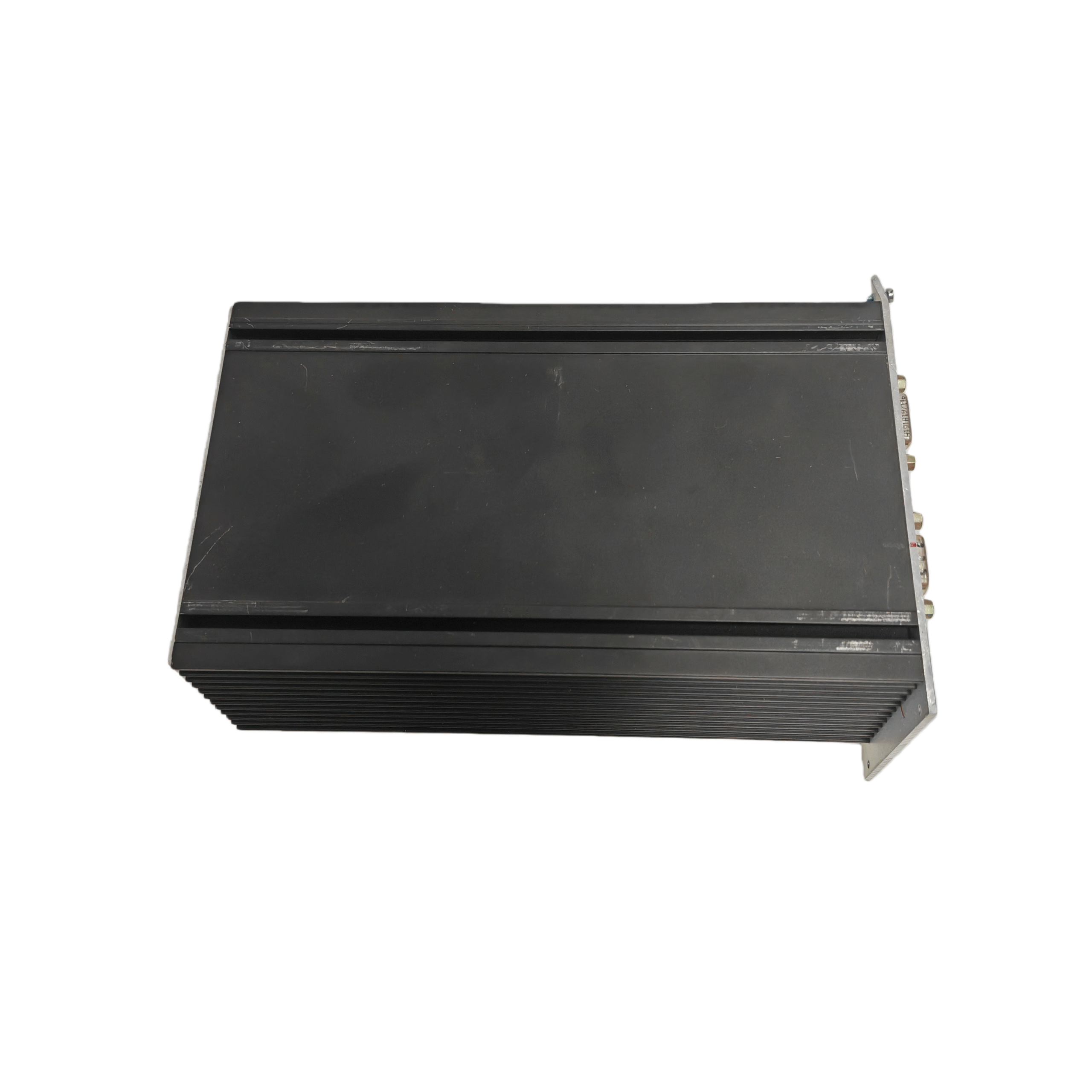

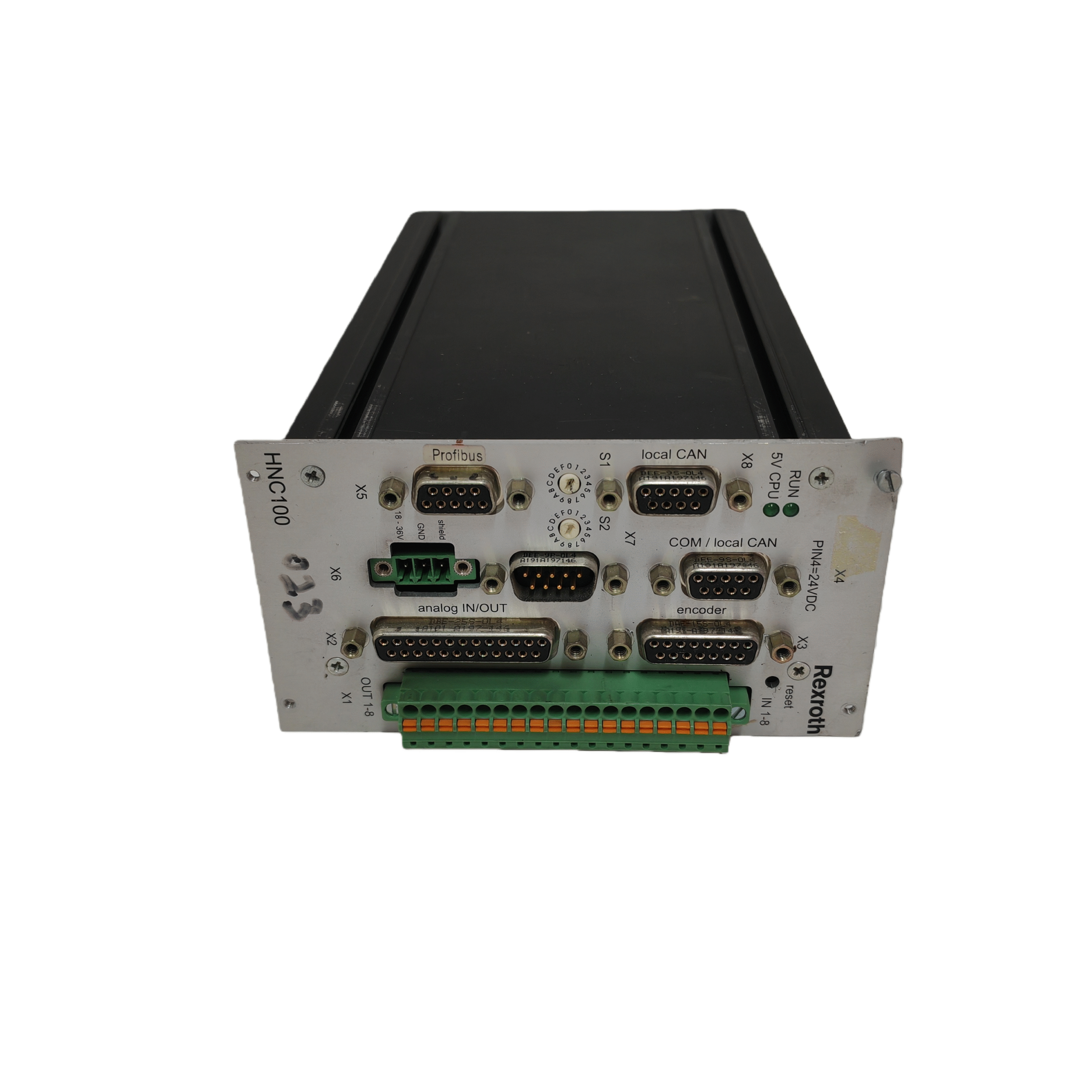

REXROTH VT-HNC100-1-23M-08-P-0

It is a digital axis control module of Bosch Rexroth VT-HNC100 series



Basic Information

• Brand: Bosch Rexroth
• Model: VT-HNC100-1-23M-08-P-0
• Controllable Axes: Up to 4 axes
• Hydraulic Axis: 1 hydraulic axis
• Digital Inputs/Outputs: 8 digital inputs/outputs
• Mounting Type: Wall-mounted installation

Core Functions and Features

• High Control Precision: Adopts high-resolution encoder feedback and adaptive compensation algorithm, achieving a repeat positioning accuracy of up to ±0.001mm.
• Rich Communication Interfaces: Supports PROFIBUS DP bus standard with communication rates ranging from 9.6kBit/s to 12MBit/s. Equipped with dual optical ports, it supports multi-mode and single-mode fiber transmission, with transmission distances of up to 2Km and 20Km respectively.
• High Reliability: Features IP30 protection class and a corrugated aluminum reinforced housing, suitable for harsh industrial environments. Supports wide DC voltage input of 9-36V, with dual power supply redundancy and isolation protection. The electrical interface has 4000V lightning protection, 1.5A overcurrent protection, and 600W surge protection.
• Flexible Programming: Based on NC language (including subroutines and conditional jumps), it supports flowchart-based programming. Users can perform offline/online configuration via the PC software WIN-PED 5.

Technical Parameters

• Operating Voltage: 24V DC
• Memory Capacity: 1MB Flash EPROM, 8KB EEPROM, 256KB RAM
• Operating Temperature Range: -40°C to 85°C
• Signal Delay: Electrical port signal delay ≤ 11Bit; optical port signal delay ≤ 1.6us/node

Application Scenarios

• Industrial Automation Equipment: Can be used in CNC machine tools to realize multi-axis linkage control and meet high-precision machining requirements. It can also be applied in packaging machinery to control the movement of material handling and packaging processes, improving production efficiency.
• Material Handling Systems: Capable of managing the movement of equipment such as automated warehouses and conveyor lines, optimizing logistics processes.
• Complex Process Control: In sewage treatment projects, it can serve as the main control device of the automation system to control the operation of submersible pumps, fans, dosing pumps and other equipment, realizing automation and intelligence of the process flow.
