Rockwell ICS Triplex T7484 Triple redundant I/O modules

Description

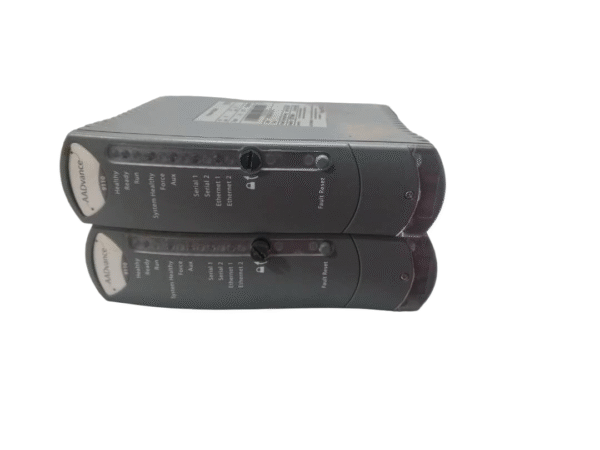

Rockwell ICS Triplex T7484

It is a high-end triple redundant I/O module and is the basic hardware for building high-reliability and high-security industrial control systems (especially safety instrument systems).





1. ‌Core Function: Triple Modular Redundant (TMR) I/O Module‌

   • This is its fundamental purpose. The T7484 module handles signals from field sensors (Inputs) or sends control signals to field actuators (Outputs).
   • ‌“Triple modular redundancy” (TMR)‌ is the key design principle: It incorporates ‌three completely independent, parallel operating channels‌ to process the same signal or execute the same control command.

2. ‌Core Purpose: Achieving High Availability and Safety‌

   • ‌Fault Tolerance:‌ The three-channel design allows the system to continue normal operation even if one (or sometimes two, depending on the specific strategy and configuration) channels fail. This minimizes the risk of unplanned downtime.
   • ‌Safety:‌ Through a voting mechanism (typically 2-out-of-3 or 2oo3), the module can detect and mask errors in a single channel (e.g., hardware failure, signal noise, transient interference). This ensures the signal output to the final control element (such as an Emergency Shutdown Valve) is safe and correct. This is crucial for preventing hazardous incidents caused by instrumentation or control system failures.
   • ‌Redundancy:‌ Beyond the inherent channel redundancy within the module, these modules are typically deployed in system architectures supporting module-level or controller-level redundancy, further enhancing overall system reliability.

3. ‌Key Features:‌

   • ‌Triple Modular Redundant (TMR) Architecture:‌ Three independent microprocessors or processing circuits operate in parallel.
   • ‌Voting Mechanism:‌ For inputs, all three channels read the field signal and perform voting (typically 2oo3), outputting a single “voted” valid value to the controller. For outputs, the controller issues a command; all three channels independently receive and execute it; the final output drive signal is also voted (typically 2oo3) before acting on the field device.
   • ‌Fault Detection and Isolation:‌ Robust built-in diagnostics continuously monitor each channel for hardware faults, communication failures, signal out-of-limits, etc. Upon fault detection, the module can automatically isolate the failed channel and report fault information in the system status for maintenance.
   • ‌Hot-Swappable:‌ Typically designed for hot-swap functionality, enabling replacement of a faulty module without shutting down the system, which is vital for continuous industrial processes.
   • ‌Diagnostics & Status Indication:‌ Module faceplates usually feature LED indicators clearly showing module status (Run, Fault, Active, etc.), channel status, and communication status.
   • ‌Dedicated Backplane Bus:‌ Connects to a highly reliable, high-speed, dedicated system backplane bus (distinct from standard PLC backplanes), ensuring fast and reliable communication between controllers and I/O modules.
   • ‌Robust Design:‌ Engineered to withstand harsh industrial environments (temperature, humidity, vibration, noise).
   • ‌Certifications:‌ Typically complies with stringent safety standards (e.g., IEC 61508 SIL 3) and industry regulations (e.g., API, ISA), making it suitable for Safety Instrumented Systems (SIS).

4. ‌Typical Applications:‌

   • ‌Safety Instrumented Systems (SIS):‌ Used to execute critical safety functions such as Emergency Shutdown (ESD), Fire & Gas Detection and Protection (F&G), and Burner Management Systems (BMS).
   • ‌Critical Process Control:‌ Used in large continuous production processes (e.g., Oil & Gas, Petrochemical, Refining, Power Generation, Pharmaceuticals) for controlling critical loops where failure could lead to significant safety risks, environmental damage, or major financial losses.
   • ‌High Availability Requirements:‌ Systems demanding near-continuous operation where downtime costs are extremely high.
