TRICONEX 3501E digital input (DI) module

Description

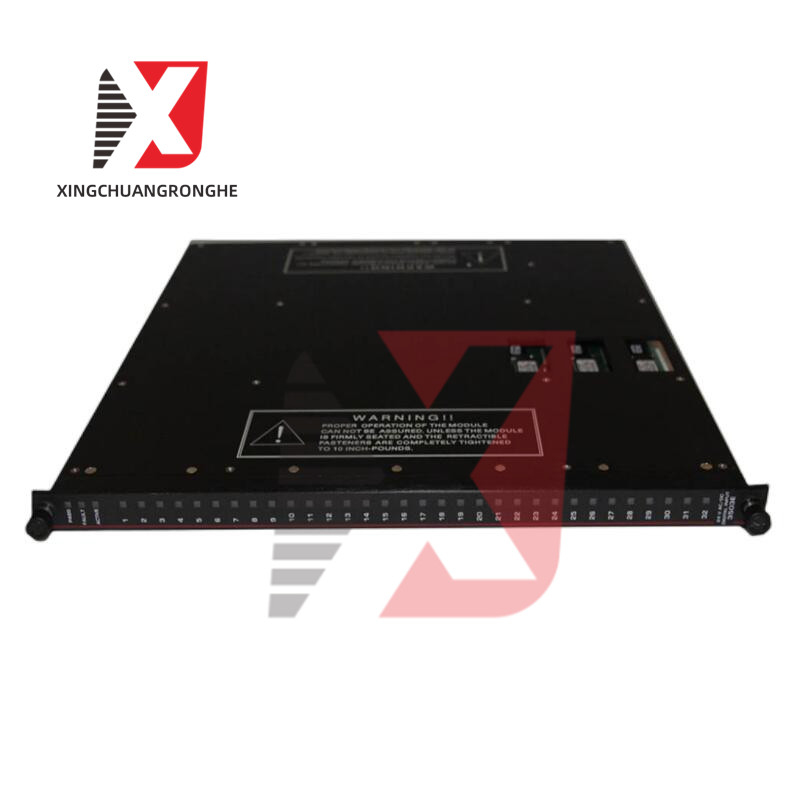

TRICONEX 3501E

The Triconex 3501E is a digital input (DI) module from the Tricon v9/v10/v11 series, designed for high-integrity safety systems. It is widely used in critical applications such as Emergency Shutdown Systems (ESD), Fire & Gas Systems, and Process Safety Systems.

---

TRICONEX 3501E Technical Specifications:

1. General Specifications

• Module Type: Digital Input (DI)
• Safety Certification: SIL 3 (IEC 61508)
• Redundancy Support: TMR (Triple Modular Redundancy)
• Compatibility: Tricon v9, v10, v11 systems

2. Input Channels

• Number of Channels: 32 channels (isolated)
• Input Type:
  • Dry Contact (Solid-State Relay, Mechanical Relay, Switch)
  • Wet Contact (24V DC, 48V DC, 125V DC, 120V AC, 240V AC)
• Input Voltage Ranges:
  • Low Voltage (12-48V DC)
  • High Voltage (up to 240V AC/DC)

3. Electrical Characteristics

• Input Impedance: Typically 3-4 kΩ (varies by voltage range)
• Threshold Voltage:
  • ON State: ≥ 8V DC (for 12-48V DC range)
  • OFF State: ≤ 5V DC
• Maximum Input Voltage: 300V AC/DC (per channel)
• Isolation:
  • Channel-to-Channel Isolation: 1500V AC
  • Channel-to-System Isolation: 2500V AC

4. Response Time

• Debounce Filtering: Configurable (1ms to 16ms)
• Update Rate: Typically 10ms per channel (depends on system scan time)

5. Diagnostics & Safety Features

• Open-Wire Detection (for wet contacts)
• Short-Circuit Protection
• Overvoltage Protection
• Fault Reporting to Main Processor

6. Power Requirements

• Supply Voltage: 24V DC (typical for Triconex backplane)
• Power Consumption: ~ 5W (depends on configuration)

7. Environmental & Mechanical

• Operating Temperature: -40°C to +70°C
• Humidity: 5% to 95% (non-condensing)
• Mounting: Fits in Tricon V9/V10/V11 chassis
• Certifications: ATEX, IECEx, UL, CE (as applicable)

---

Applications

• Emergency Shutdown Systems (ESD)
• Fire & Gas Detection Systems
• Turbine Control Systems
• Critical Process Interlocks
