Description

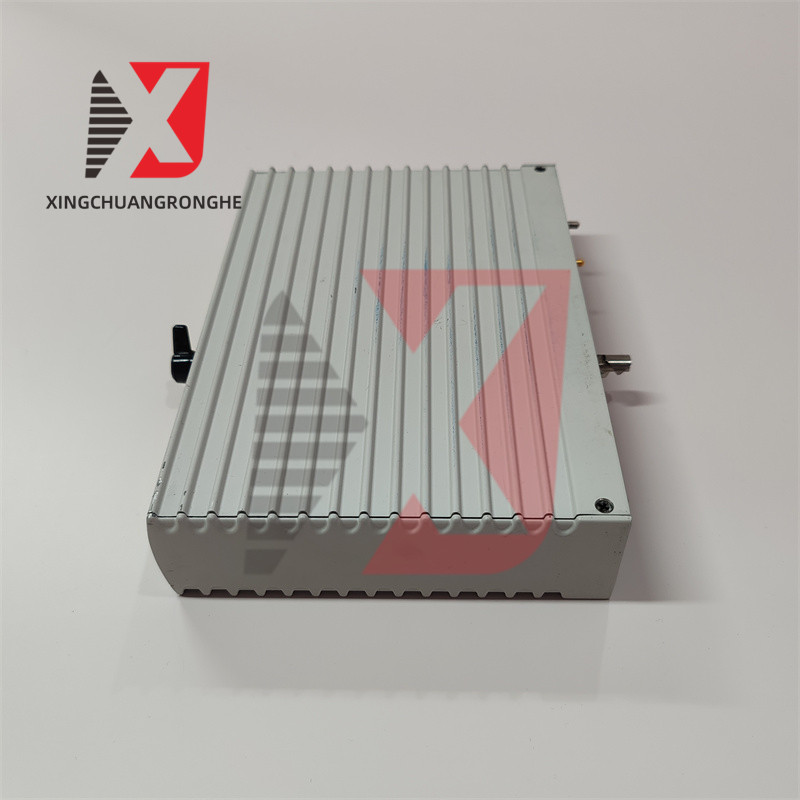

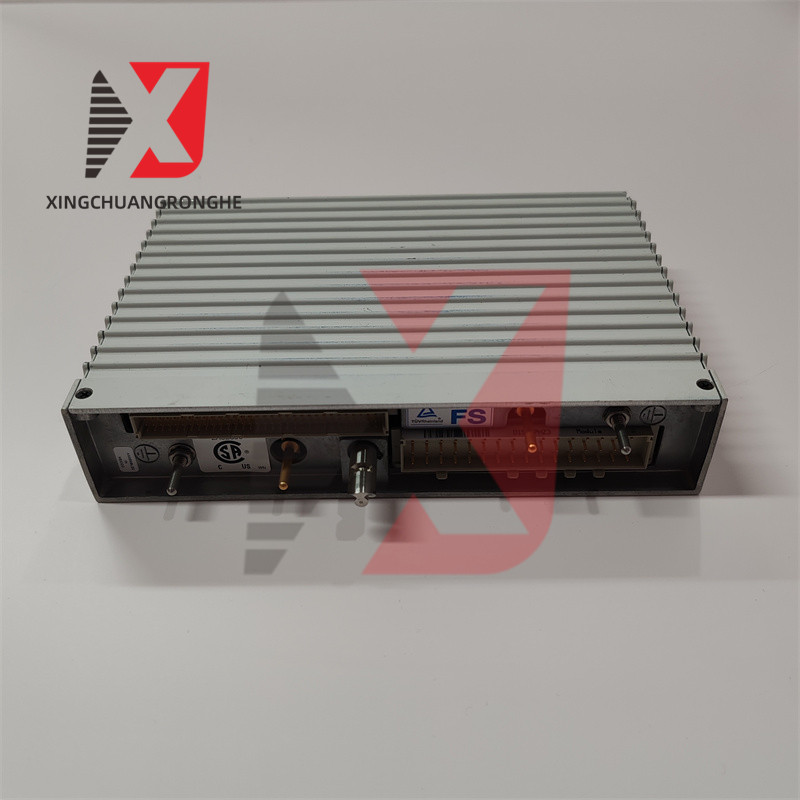

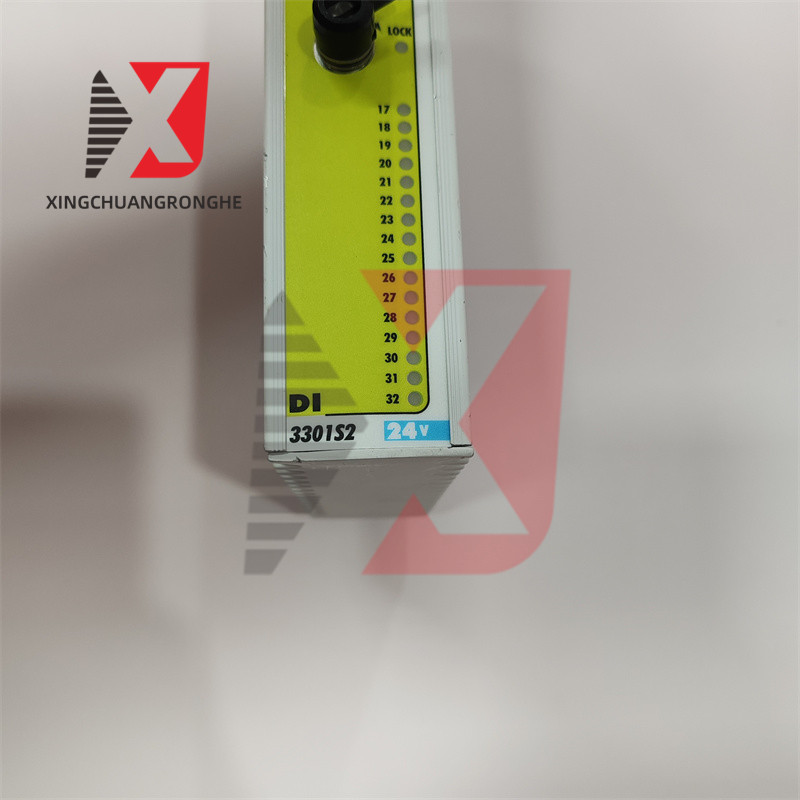

TRICONEX DI3301S2
The TRICONEX DI3301S2 is a digital input module from the Tricon v9–v11 series, designed for high-integrity safety and control applications in critical industries like oil & gas, power generation, and chemical processing. Below are its key technical parameters:
General Specifications:
- Manufacturer: Schneider Electric (formerly Invensys/Triconex)
- Module Type: Digital Input (DI)
- Series: Tricon v9, v10, v11 (compatible with Tricon systems)
- Part Number: DI3301S2 (also labeled as 3501T in some documents)
Electrical Specifications:
- Input Channels: 16 (isolated in groups of 8)
- Input Type: Dry contact (volt-free) or wet contact (sourced)
- Input Voltage Range:
-
- Dry Contact: 0–60V DC (open circuit)
- Wet Contact: 5–60V DC (sourced input)
- On-State Threshold: ≥ 5V DC (current ≥ 2.5 mA)
- Off-State Threshold: ≤ 1V DC
- Input Impedance: ~3.3 kΩ (typical)
- Isolation: 1500V AC between field side and logic side
Performance & Environmental:
- Response Time: < 10 ms (typical)
- Update Rate: Synchronized with Tricon scan time
- Operating Temperature: -40°C to +70°C (-40°F to +158°F)
- Humidity: 5–95% (non-condensing)
- Certifications: SIL 3 (IEC 61508), TÜV, ATEX (optional)
Communication & Compatibility:
- Bus Compatibility: Tricon Communication Bus (TCM)
- Hot Swap Support: Yes (module can be replaced without powering down)
- Redundancy Support: Supports Triple Modular Redundancy (TMR) configurations
Power Consumption:
- Backplane Power: Typically 1W per module (varies based on configuration)
Applications:
- Safety Instrumented Systems (SIS)
- Emergency Shutdown Systems (ESD)
- Fire & Gas Systems (FGS)
- Turbine Control
