Description

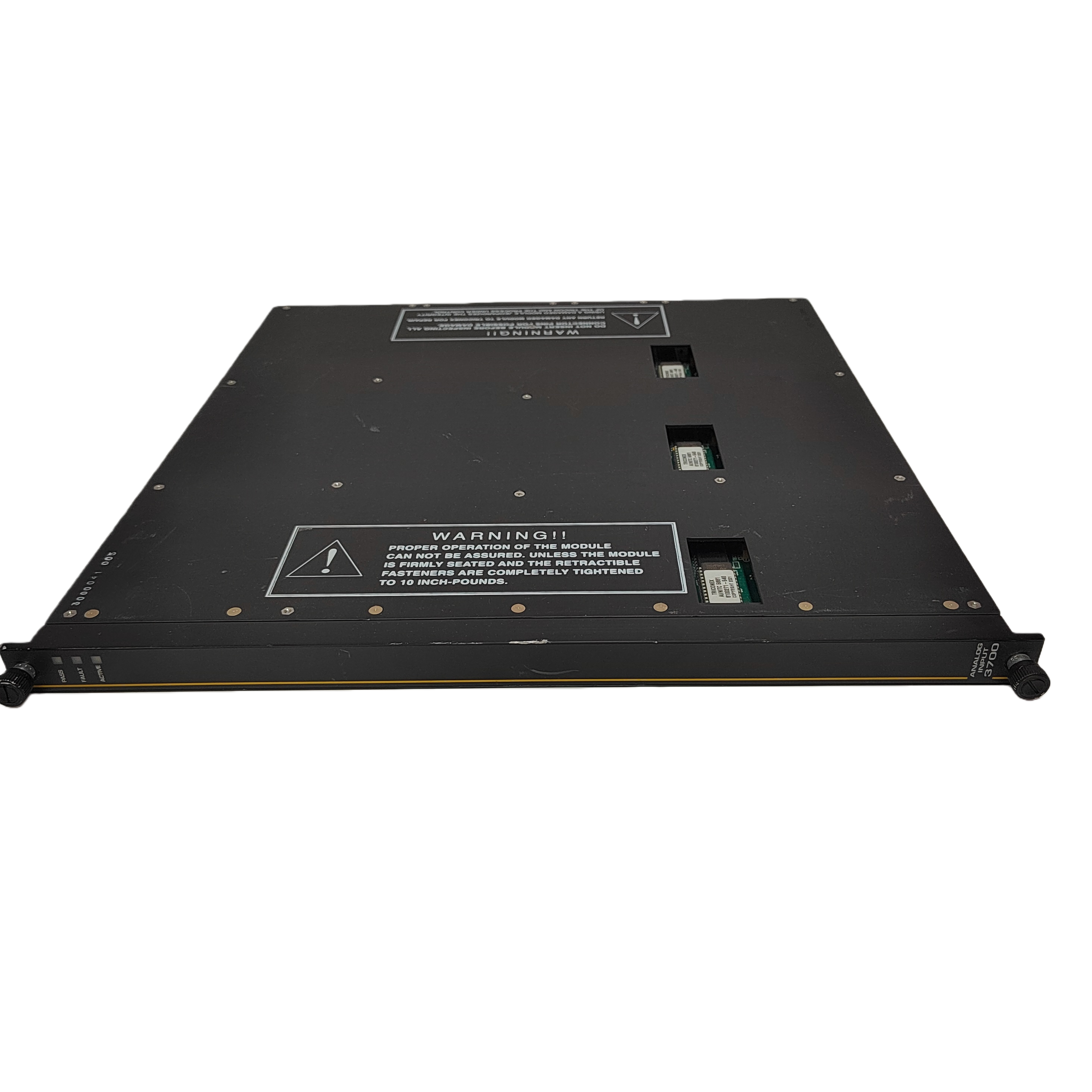

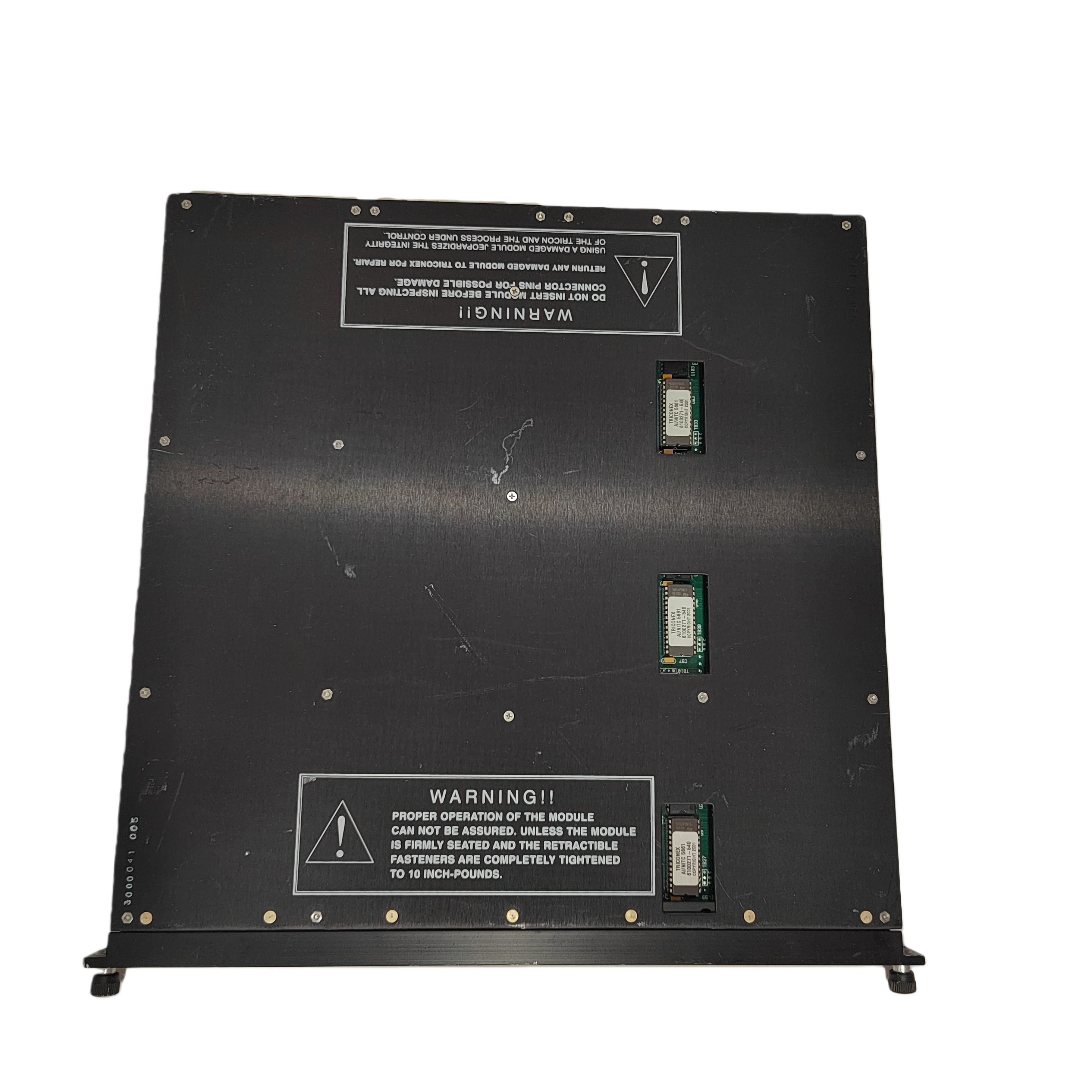

Triconex3700 Communication interface module

It is a communication interface module designed for safety instrumented systems (SIS) and critical industrial control. Its core function is to achieve reliable data interaction between Triconex control systems and external devices and networks.





I. Basic Information

• Brand: Triconex (a brand under Emerson, specializing in industrial safety control)
• Module Type: Communication interface module (non-control module, core role as a “data bridge”)
• Typical Compatible Systems: Mainly compatible with Triconex TMR (Triple Modular Redundancy) series control systems, such as Tricon controllers
• Certification Standards: Compliant with industrial safety and electromagnetic compatibility requirements. Common certifications include SIL3 (IEC 61508), UL, CE, ATEX, etc., suitable for hazardous environments and high-safety-demand scenarios

II. Core Performance Parameters

1. Supported Communication Protocols: Covering commonly used industrial protocols to meet interconnection needs of different devices, mainly including:
   • Ethernet protocols: e.g., Modbus-TCP, EtherNet/IP
   • Serial protocols: e.g., Modbus-RTU (RS-485 physical interface)
   • Some models support HART protocol, compatible with smart instrument data transmission
2. Number of Communication Interfaces: Typically equipped with 2-4 physical interfaces (such as Ethernet ports, RS-485 ports), supporting redundant configuration to enhance communication reliability
3. Operating Environment:
   • Temperature range: -40℃ to +70℃ (wide-temperature design, suitable for harsh industrial on-site environments)
   • Power supply requirements: Generally adapted to 24VDC power supply, with a current consumption of approximately 100-200mA and power below 15W
4. Isolation Performance: Electrical isolation between interfaces and between interfaces and internal module circuits (usually 1500VDC isolation voltage), preventing external interference or fault conduction to the control system

III. Core Functional Features

1. Redundant Communication Design: Supports communication link redundancy (e.g., dual Ethernet port backup). Automatically switches to the standby link when the main link fails, avoiding data transmission interruptions.
2. Data Interaction and Forwarding:
   • Enables real-time bidirectional data transmission between Triconex controllers and external systems (such as DCS distributed control systems, SCADA monitoring systems, operator stations)
   • Supports “data filtering” function, allowing customization of signals to be interacted with (e.g., process variables, alarm information, device status) to reduce bandwidth occupation by invalid data
3. Diagnosis and Monitoring:
   • Built-in real-time diagnostic function, capable of monitoring communication link status and protocol interaction abnormalities, and feeding back faults (such as “link disconnection”, “protocol error”) through indicator lights or system software
   • Supports remote viewing of module operating status, facilitating engineers to troubleshoot communication issues without on-site presence
4. Compatibility and Expandability:
   • Compatible with Triconex series I/O modules and controllers, integrable without additional adaptation software
   • Some models support firmware upgrades, enabling expansion of new protocols or optimization of communication performance through software updates

IV. Typical Application Fields

• Petrochemical Industry: Connects Triconex ESD (Emergency Shutdown System) with DCS, transmits process parameters and emergency shutdown signals to ensure device safety
• Power Industry: Used for data interaction between power plant safety protection systems (e.g., boiler protection, steam turbine control) and monitoring systems, enabling real-time status monitoring
• Natural Gas and Pipelines: Adapts to pipeline leak detection systems and compressor control units, transmitting pressure, flow data, and emergency shutdown commands
• Pharmaceutical and Chemical Industry: On production lines meeting GMP requirements, connects safety control systems with production management systems to ensure process compliance and equipment safety
