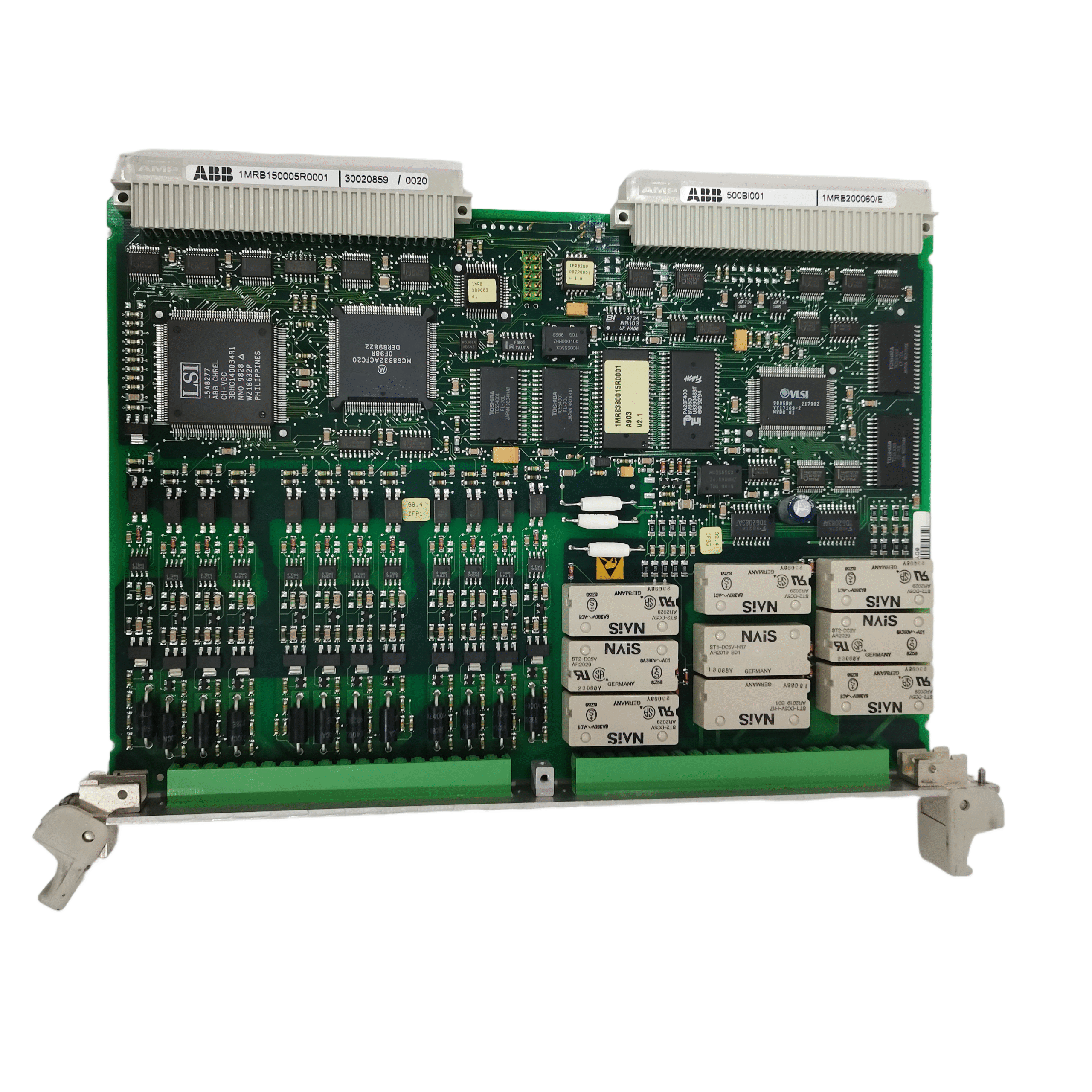

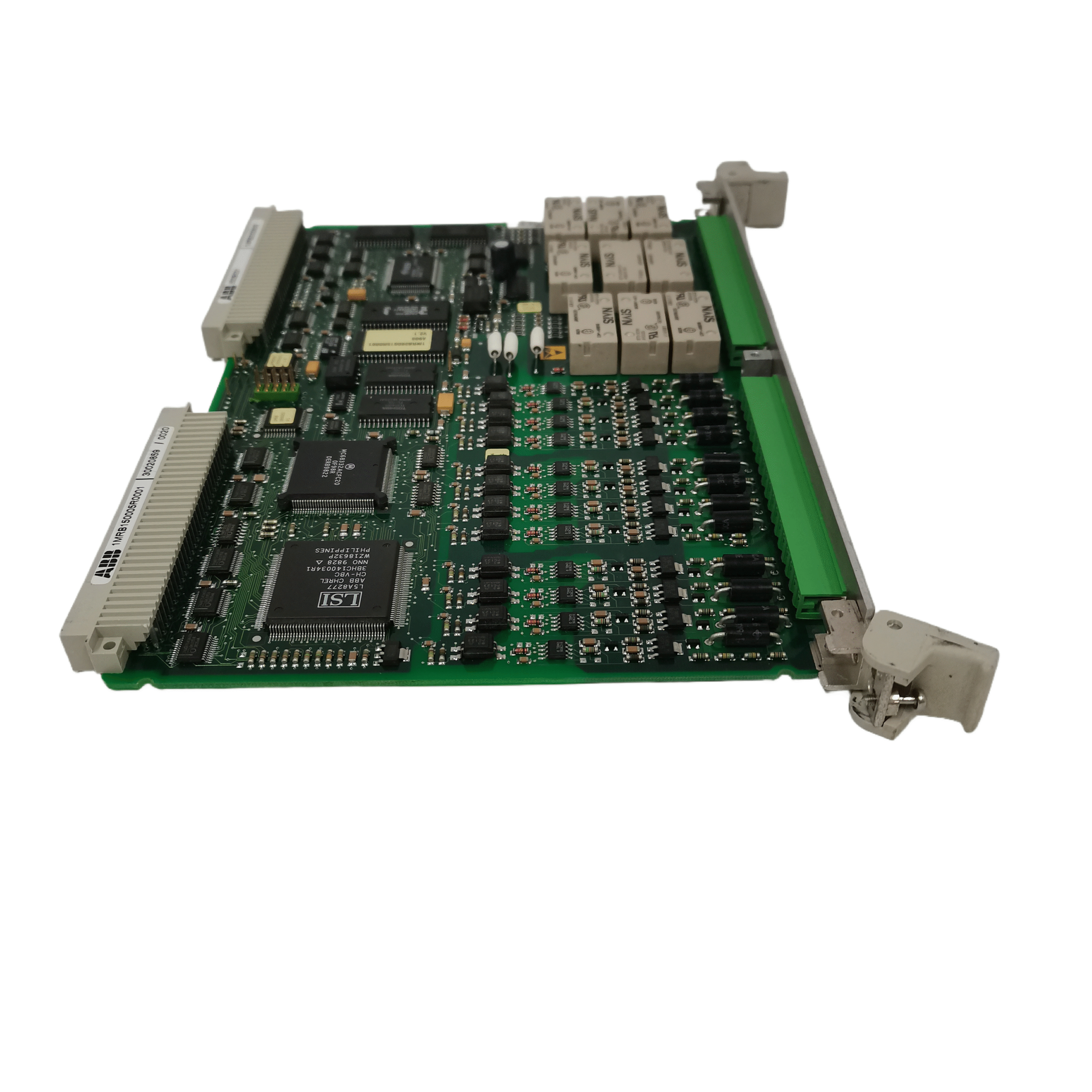

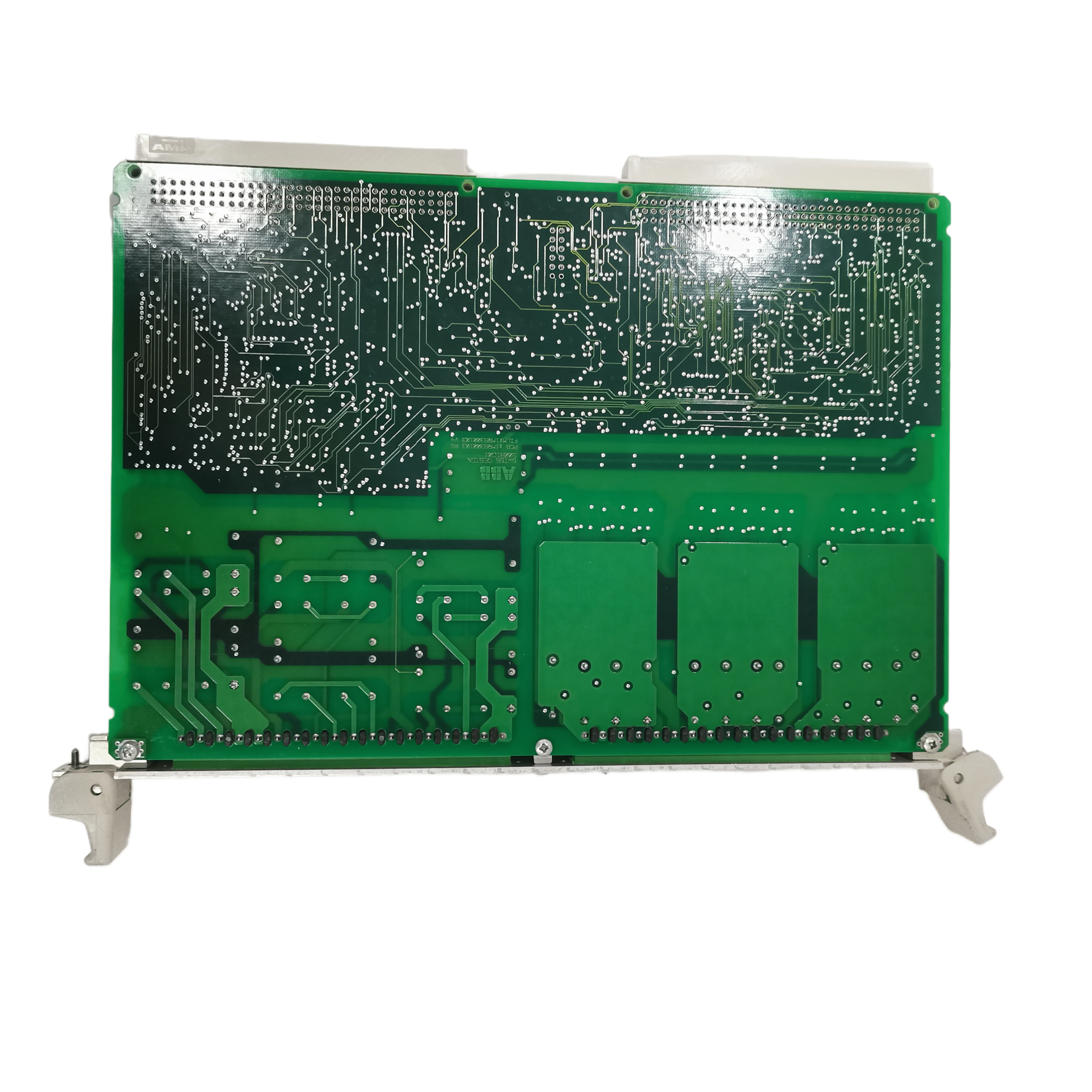

ABB 500BIO01 1MRB150005R0001
A high-performance digital mixed input/output module
Product Details
1. Product Category
Brand: ABB
Product Line: AC 500 PLC
Module Type: Digital mixed module (combined inputs and outputs)
Series: One of the I/O modules for the AC 500 PM5xx and PM5xx-R series CPUs.
2. Key Functions and Features
Channel Type: This is a hybrid module, meaning it provides both digital input (DI) and digital output (DO) channels.
Number of Channels: Typically 16 digital inputs and 16 digital outputs. This is a very common configuration (the specific channel count should be determined by the official manual, but this model is most likely 16 DI/16 DO).
Input Type:
Receives switch signals from field devices such as pushbuttons, limit switches, and proximity sensors.
Typically supports 24V DC sinking (NPN) or sourcing (PNP) input types, configurable via jumpers or connectors on the module.
Electrical Isolation: The module provides electrical isolation between the field side (between channels and between groups) and the system side (PLC bus), improving system interference immunity and safety.
Diagnostic Features: LED status indicators (one per channel) are typically provided to display input/output status, power supply status, and fault information, facilitating on-site commissioning and maintenance.
Connection Method: Connections are made via removable terminal blocks, making installation and maintenance very convenient.
3. Technical Specifications (Typical Values)
Operating Voltage: 24V DC (powers the module’s internal circuitry)
Input Voltage Levels: 0-5V (OFF), 15-30V (ON)
Output Load Voltage: Relay contacts accept a wide range, such as 5…250V AC or 5…30V DC.
Maximum Output Current: Typically 2A per channel (resistive load).
Backplane Bus Connection: Communication with the CPU or other modules is via the X-bus interface on the right side of the module.
Protection Rating: The module itself is typically IP20 and must be installed in a control cabinet.
4. Application Areas
This module is widely used in industrial automation scenarios that require simultaneous signal acquisition and device control, such as:
Manufacturing: Assembly lines, packaging machinery, and conveyor systems.
Building automation: Control lighting, pumps, fans, etc.
Process industries: Control valves, pumps, alarms, etc.
Infrastructure: Water treatment and HVAC system control.
5. Importance
In the AC 500 PLC system, I/O modules like the 500BIO01 serve as the bridge between the CPU (the brain) and field devices (the hands, feet, and senses). They are responsible for converting field sensor status (such as “motor overheated” or “door closed”) into digital signals that the CPU can understand. They also convert control commands from the CPU (such as “start the pump” or “turn on the light”) into powerful electrical signals capable of driving actuators.
