ABB FS450R12KE3/AGDR-71C IGBT power module

Description

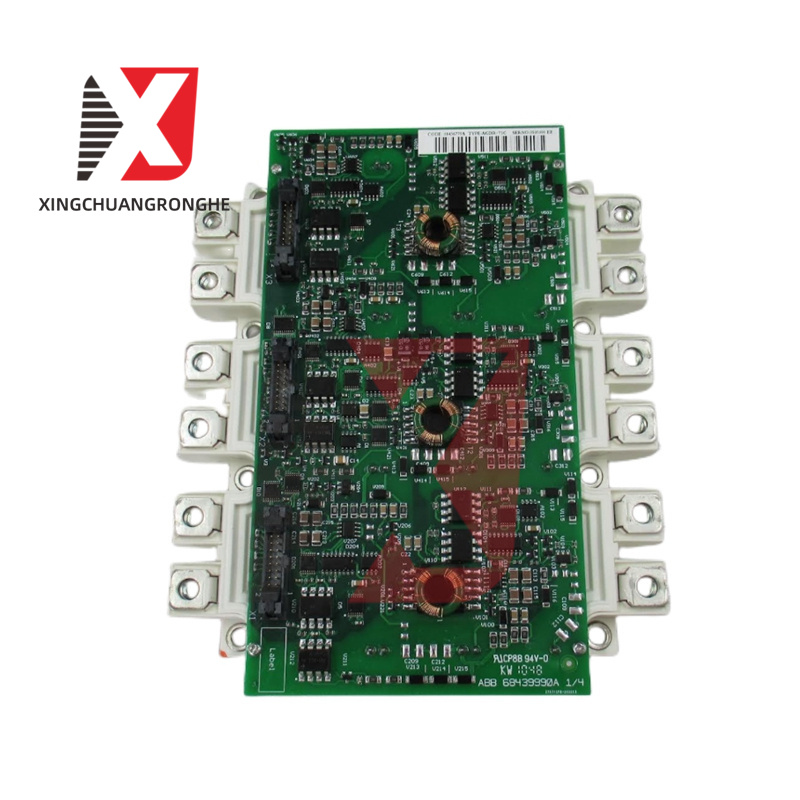

ABB FS450R12KE3/AGDR-71C

The ABB FS450R12KE3/AGDR-71C is an IGBT (Insulated Gate Bipolar Transistor) power module, typically used in high-power industrial applications such as motor drives, converters, and renewable energy systems. Below are the key technical parameters for this module:

---

General Specifications:

• Manufacturer: ABB
• Model: FS450R12KE3/AGDR-71C
• Type: IGBT Power Module (Dual/Three-Level)
• Voltage Class: 1200V
• Current Rating: 450A (nominal)
• Configuration: Likely a dual or three-level inverter module

---

Electrical Parameters:

Parameter	Value
Collector-Emitter Voltage (V<sub>CES</sub>)	1200V
Nominal Current (I<sub>C</sub> at 80°C)	450A
Max. Pulsed Collector Current (I<sub>CM</sub>)	900A (short-time)
Gate-Emitter Voltage (V<sub>GE</sub>)	±20V (typical)
On-State Voltage (V<sub>CE(sat)</sub>)	~1.8V (typical at rated current)
Switching Frequency	Up to 5-20 kHz (depending on cooling)
Power Dissipation (P<sub>tot</sub>)	~1.5-3 kW (depends on operating conditions)

---

Thermal & Mechanical Parameters:

Parameter	Value
Module Technology	Press-pack or standard module
Isolation Voltage (V<sub>ISO</sub>)	2500-4000V (min.)
Operating Temperature (T<sub>j</sub>)	-40°C to +150°C (junction temp.)
Cooling Method	Liquid or forced air cooling
Weight	~1-2 kg (depends on housing)

---

Applications:

• Medium-voltage drives (MVDs)
• Wind & solar power converters
• Industrial motor control (e.g., pumps, compressors)
• Rail traction systems
• High-power UPS (Uninterruptible Power Supplies)
