TRICONEX 3625A Instrumented System

Description

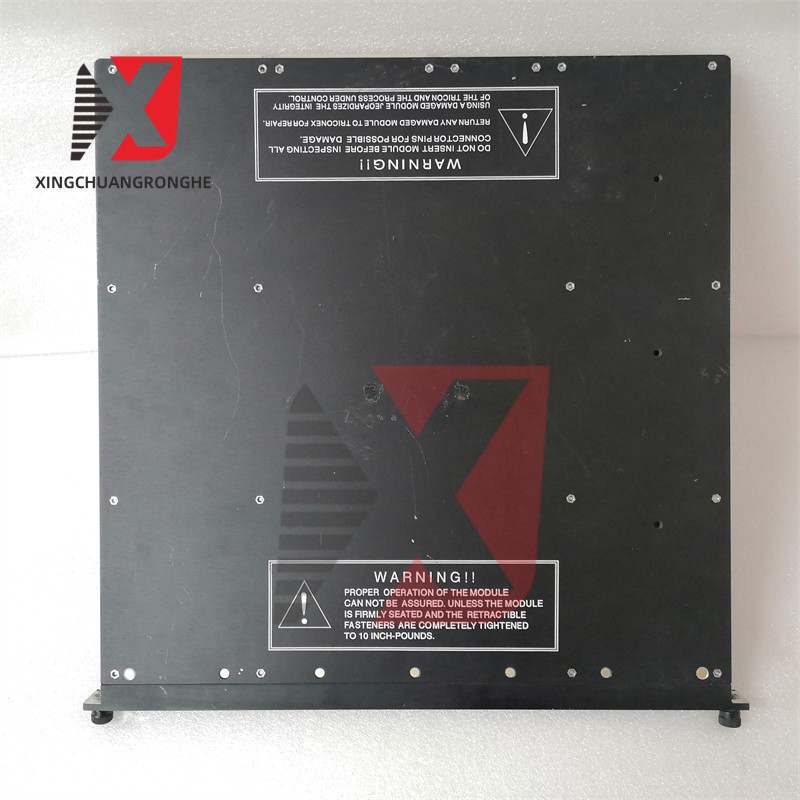

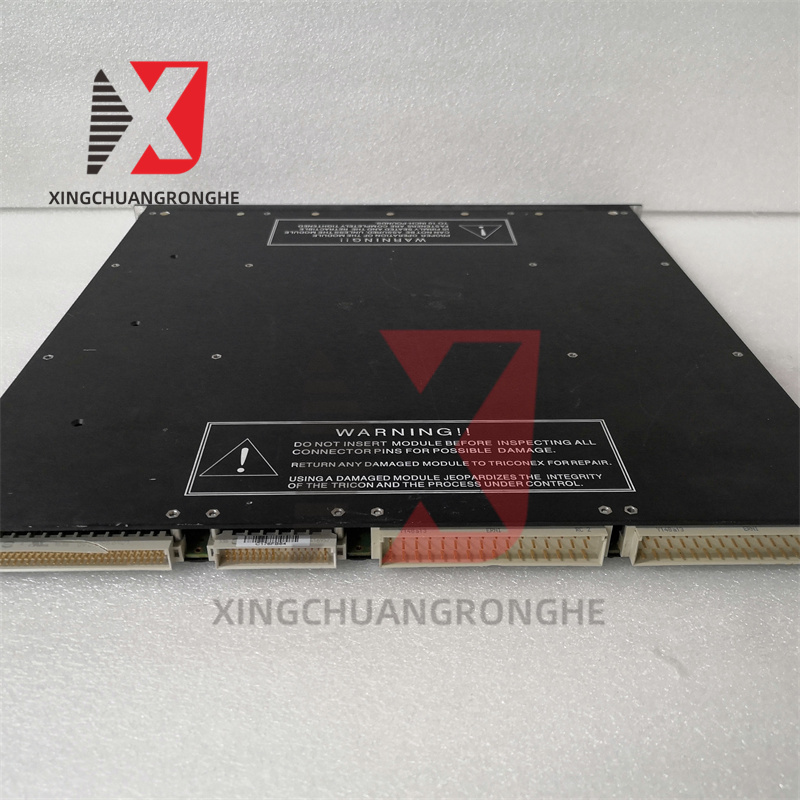

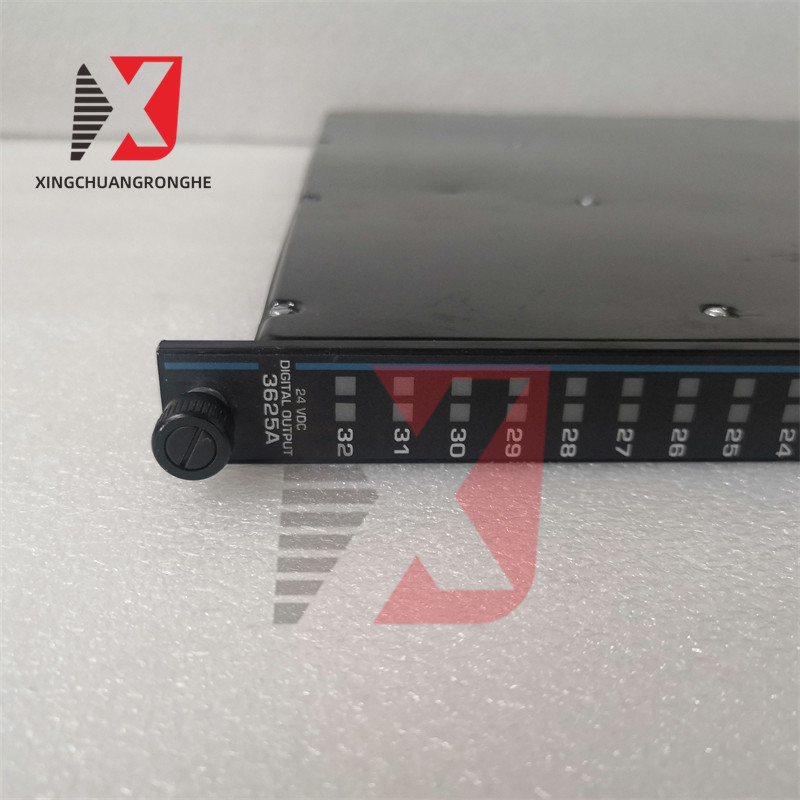

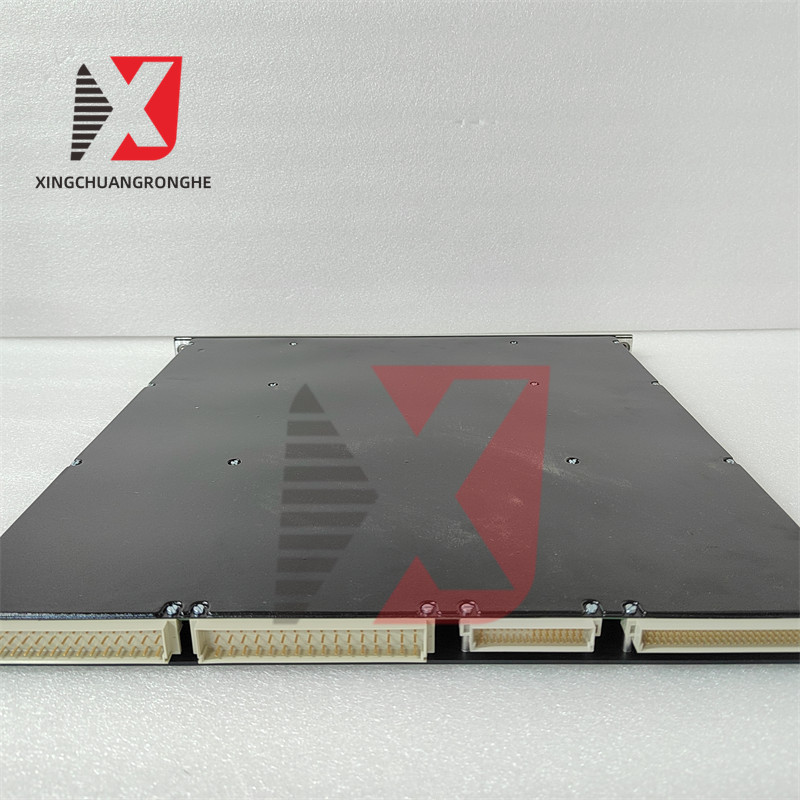

TRICONEX 3625A

The Triconex 3625A is a module from the Triconex Safety Instrumented System (SIS) family, designed by Schneider Electric (formerly part of Invensys and Triconex Corp). Below are the key technical parameters for the 3625A module:

TRICONEX 3625A Technical Specifications

1. Module Type:

• Digital Input Module (High-Density, 32-Channel)
• Part of the Tricon v9/v10/v11 Safety Systems

2. Input Channels:

• 32 isolated digital inputs (sink/source configurable)
• Voltage Ranges:
  • 24V DC (standard)
  • Other ranges possible with external conditioning

3. Input Signal Compatibility:

• Dry Contact (Form A/Form B relays)
• Wet Contact (24V DC)
• Debounce Filtering (adjustable)

4. Isolation & Protection:

• Channel-to-Channel Isolation: Yes (prevents cross-talk)
• Overvoltage/Overcurrent Protection: Built-in

5. Response Time:

• <10 ms (typical, depending on configuration)

6. Communication Interface:

• Backplane Communication: Via Tricon Chassis (MP, Main Processor)
• Supports TriStation 1131 (Tristation v4.11.0 or later for configuration)

7. Power Requirements:

• Backplane-Powered (via Tricon chassis)
• Power Consumption: ~2W (typical)

8. Environmental Ratings:

• Operating Temperature: -40°C to +70°C
• Humidity: 5% to 95% (non-condensing)
• Certifications: CE, ATEX, IEC 61508 (SIL3)

9. Mounting & Dimensions:

• Fits in Tricon Chassis (9U/15U racks)
• Hot-Swappable (supports online replacement)

10. Diagnostics & LED Indicators:

• Per-channel LED status indicators (Healthy/Fault/Active)
• Built-in self-test (BIST) for fault detection

11. Safety & Compliance:

• SIL 3 (IEC 61508)
• TÜV Certified
• FM, CSA, ATEX (for hazardous areas)

Applications

• Process Safety Shutdown Systems (ESD)
• Fire & Gas Systems (FGS)
• Turbomachinery Control (TMC)
• Critical Digital Input Monitoring
